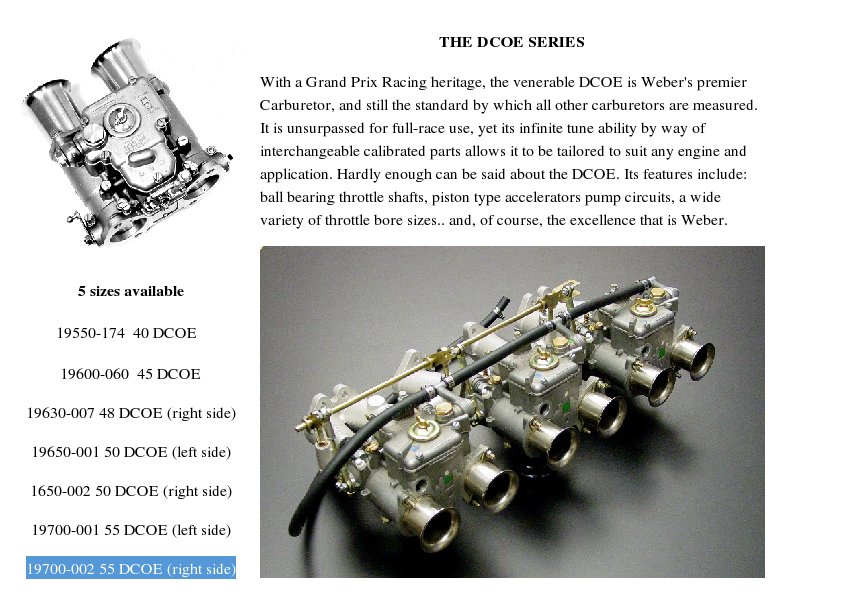

I have recently looked into using a Weber 55 DCOE side draft carb.
Pretty cheap at about $560. I was surprised. Not easy to lean the mixture as it is a
very complicated carb. It will work but the idle will be pretty poor
as it must be mounted on the beginning of the p-port intake runners.
The throat spacing is too close to mount it near the P-port rotor housings.
Besides that it would be subjected to the full heat of the exhaust manifold. Power will
be somewhat down compared to a slide throttle due to the aerodynamic
drag of the butterflies and throttle shafts. I don't know how much. If you take out
the throttle shaft and butterflies and use a slide throttle you will
lose a lot of functionality like the accelerator pump for one example.

It should work fine unmodified at low altitudes and with a modest HP penalty.

Ken Welter has been flying a Weber for a few years on his Coot. I think he
is tricking the float chamber by using dynamic air pressure to lower the fuel level.
I am not sure. I don't fully understand what he is doing. Perhaps that is
possible with a needle valve.

Paul Lamar ...No rotor no motor.
