     > Paul,
     > I know you and others are working on alternatives to feed the P Port
     > slide throttle.  Tracy's ECU works on MAP and because of the
    pulsations
     > and short intake this will not work.  Mazda stock ECU has TPS
    could this
     > work with a re-programed or adjustable ECU offered by these folks?
     > http://www.turnerdr.com/products.asp?cat=100
     >
     > Joe Berki
     > Limo EZ
     >
     > Well the jury is still out. Mark Suspinski p-port engine seems to be
    working
     > fine on the ground with Tracy ECU.
     >
     > I think these are stock units that are upgraded.
     > Perry Mick has a stock unit working fine. He had to trick a few
     > sensor inputs as I recall. Last I heard he was still working on the
    leaning circuit.
     >

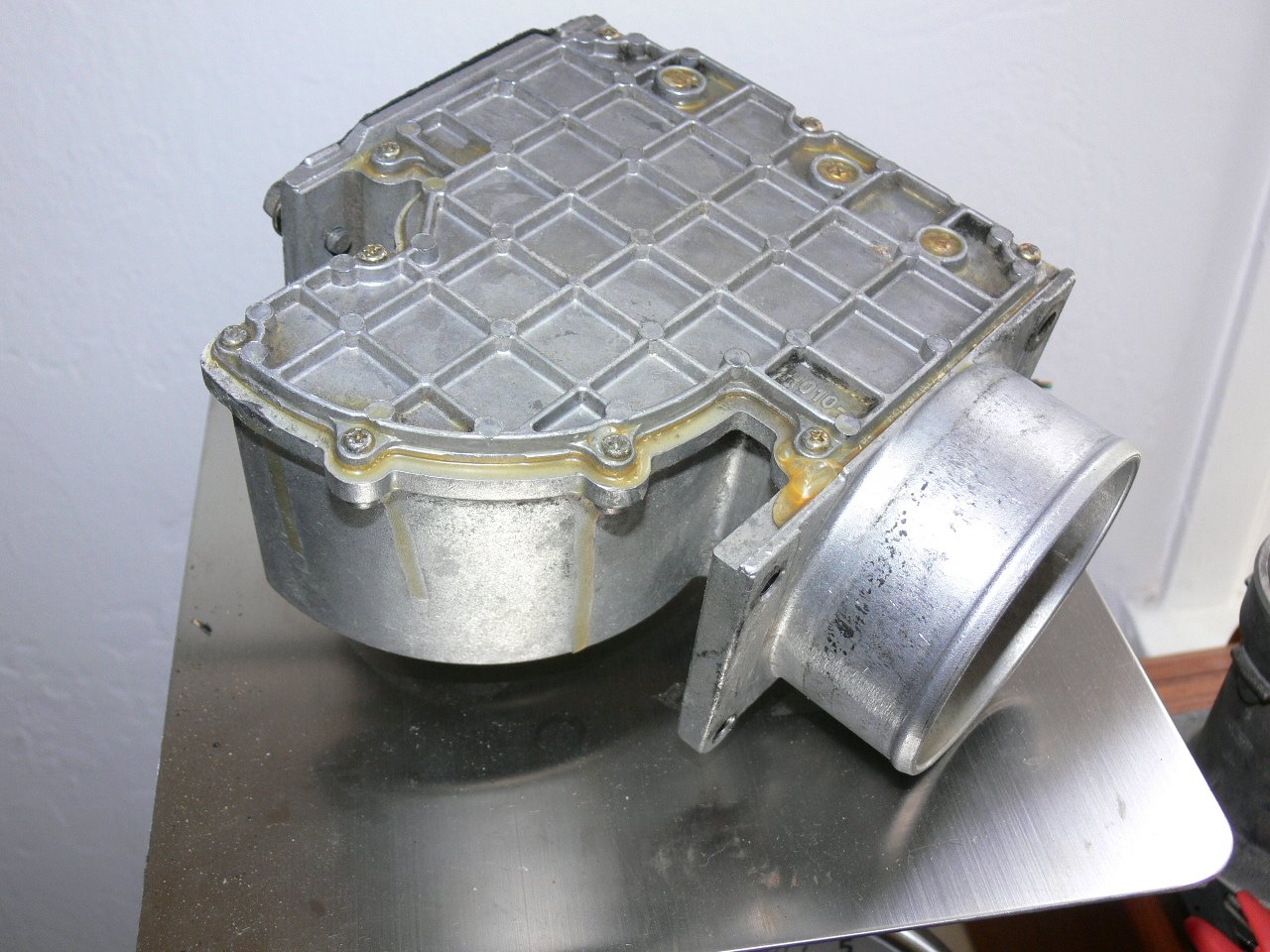

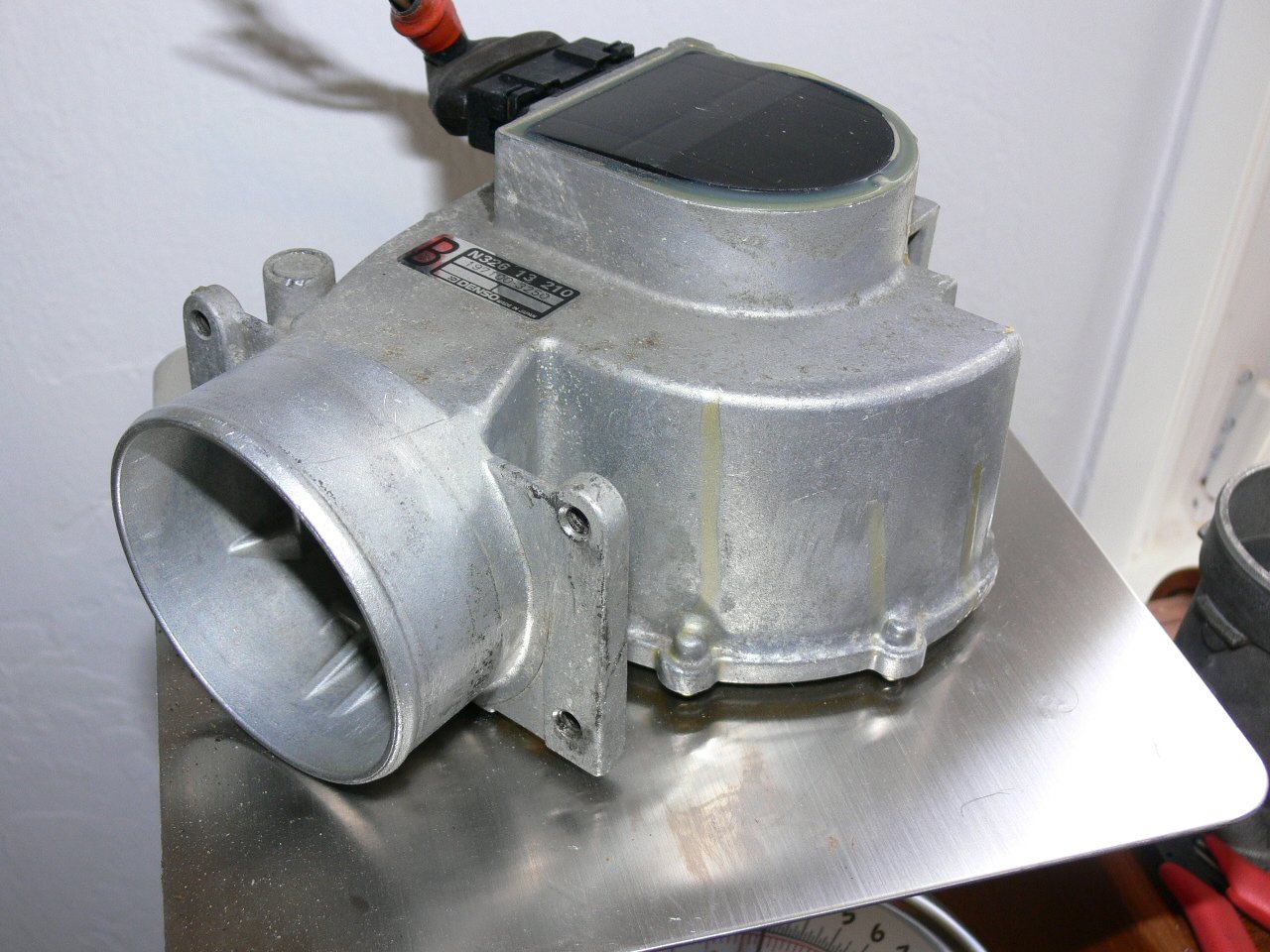

     > It uses a stock mass air flow sensor that looks like this.
     >
     > I am looking for somebody that is close to flying to test my
    mechanical
     > EFI.
     >
     > Paul Lamar

    Paul.
    Did you check out the stage 2 version?  It is fully adjustable via
    PDA and
    their software.

    Joe

    No I did not but that is interesting. I think Perry might be interested
    in that. Can they lean it in an easy manner?
    --
    Paul Lamar ...No rotor no motor.



Aren't there multiple generations of factory ECU's?  I'd guess that
different years might have different behaviors.  Especially the gen3 cars..

If my computer had a limp home mode, I'd test it on the ground at least
once..  Figure out a way to reliably cause it - disconnect a sensor, add
a switch, whatever.  Run up to 2000RPM, turn it on and see how it does.
Cool, reset, and increase the power setting for the test point.  Keep
doing that until you are at essentially cruise power.  Assuming that
running the experiments at lower power settings doesn't cause anything
seriously bad to happen..

Is limp-home reset on power-cycling the ECU?


Regards,

Matt-

The 2nd gen is most common and probably by far the cheapest to be had in junkyards
or on ebay. It will work on any generation engine.

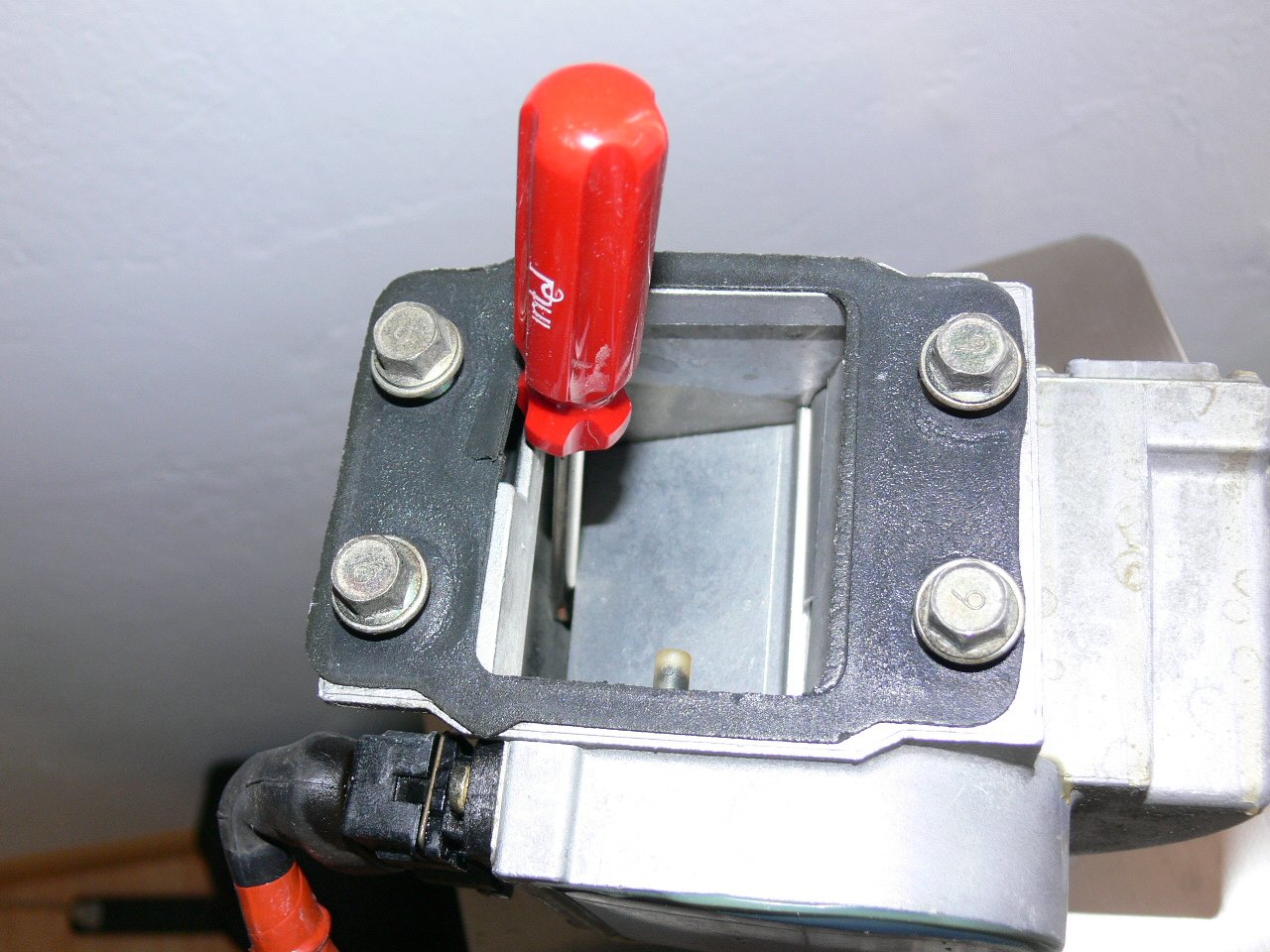

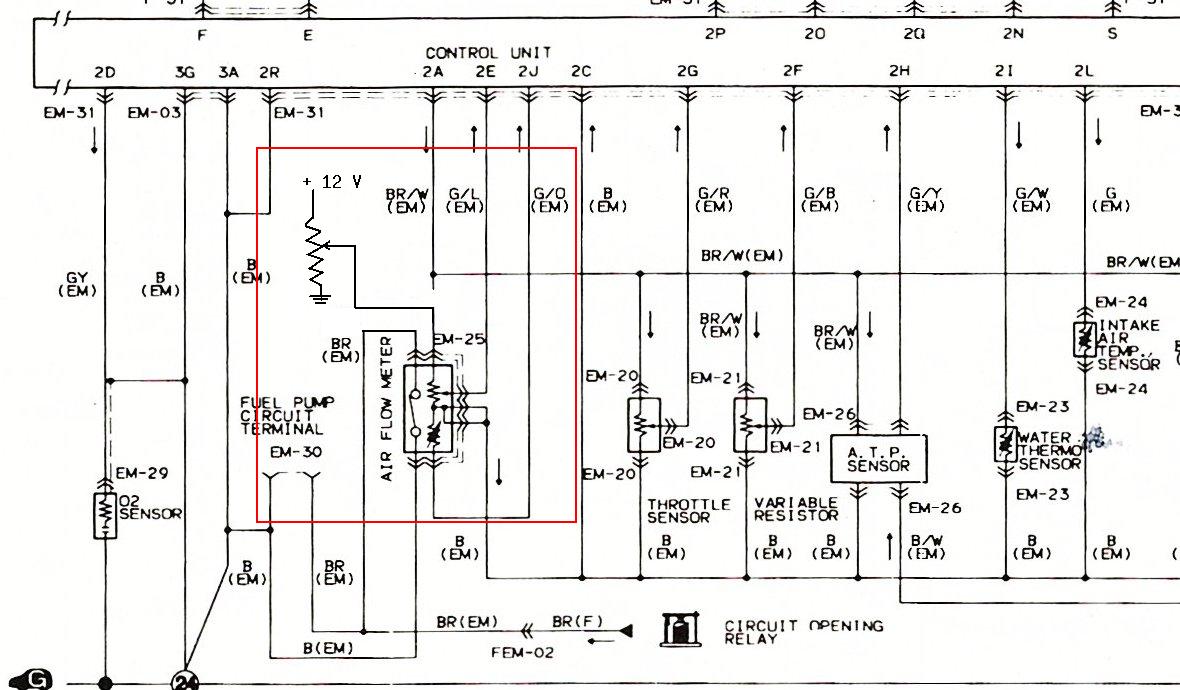

It is kind of easy to simulate a 2nd gen mass air flow sensor as all it is
is a spring loaded trap door connected to a pot. One could hook a large pot
in parallel and try twisting it if one suspected the mass air flow sensor
failed. In other words all it does is a supply a zero to 5 volt signal
to the ECU. Same goes for the throttle position sensor.


Paul Lamar ...No rotor no motor.
