Do you approve of this profile?

Jerry

The pain drain will interfere with the green cross tube.
Also perhaps the nose gear. Move it forward around the
corner.

--  Paul Lamar ...No rotor no motor.

Here it is again, shortened .5 inches to help clear the cowl.   Drain
moved to other side. Jerry


This looks fine but I would not start with this oil pan Jerry. I  would do the
oil pan after the motor mount was at least tacked together.

BTW Steve I don't think the Greddy RX8 turbo engine exhaust manifold
will fit. It might but it does not look good from these
pictures.  Just in case you are thinking of getting a Greddy
exhaust manifold. I think it will interfere with the Schertz beam or
the left front rubber bushing.
--
Paul Lamar ...No rotor no motor.

Paul, Jerry,

I like the pan. I anticipate having someone make me an exhaust manifold.

Cheers,

Steve

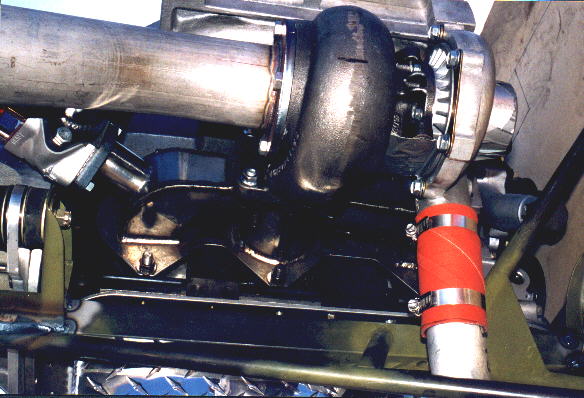

I think Jerry could make a RX8 turbo exhaust manifold if we can talk him
into it :) I think he has a plasma cutter. It could look a lot like this
3 rotor manifold.

Paul Lamar ...No rotor no motor.
