Jerry,

Cut the production part slightly longer than the marking jig.  Slip the
part into the marking jig (and clamp one end?) and then trace the cut
line(s) with a silver pencil.  It may help to cut the production piece
at an angle (on the bandsaw?) before the trace operation.  I, most of
the time, I used a 4" hand grinder for my parts and jigs.  Production
parts may be better  ground on fixed pedestal grinders with 3/4" and
1/4" round nose wheels.  Roughing operations can still be done with
(handheld) cutoff wheels with the marked part held in a vise after
cut-to-length.

There are also notchers on the market that use hole saws for tube
notching.  I am very leary about using these on thin wall 4130 tubing
because of the wide tooth spacing, ie. approx 8 tpi. You can cut notches
better in aircraft tubing via abrasive methods.  I also remember seeing
abrasive belt notchers. For low and medium quantities grinding wheels
are best??  I buy my 4" cutoff wheels at Menards for $1.10 (was $.99
before Christmas).

Dan

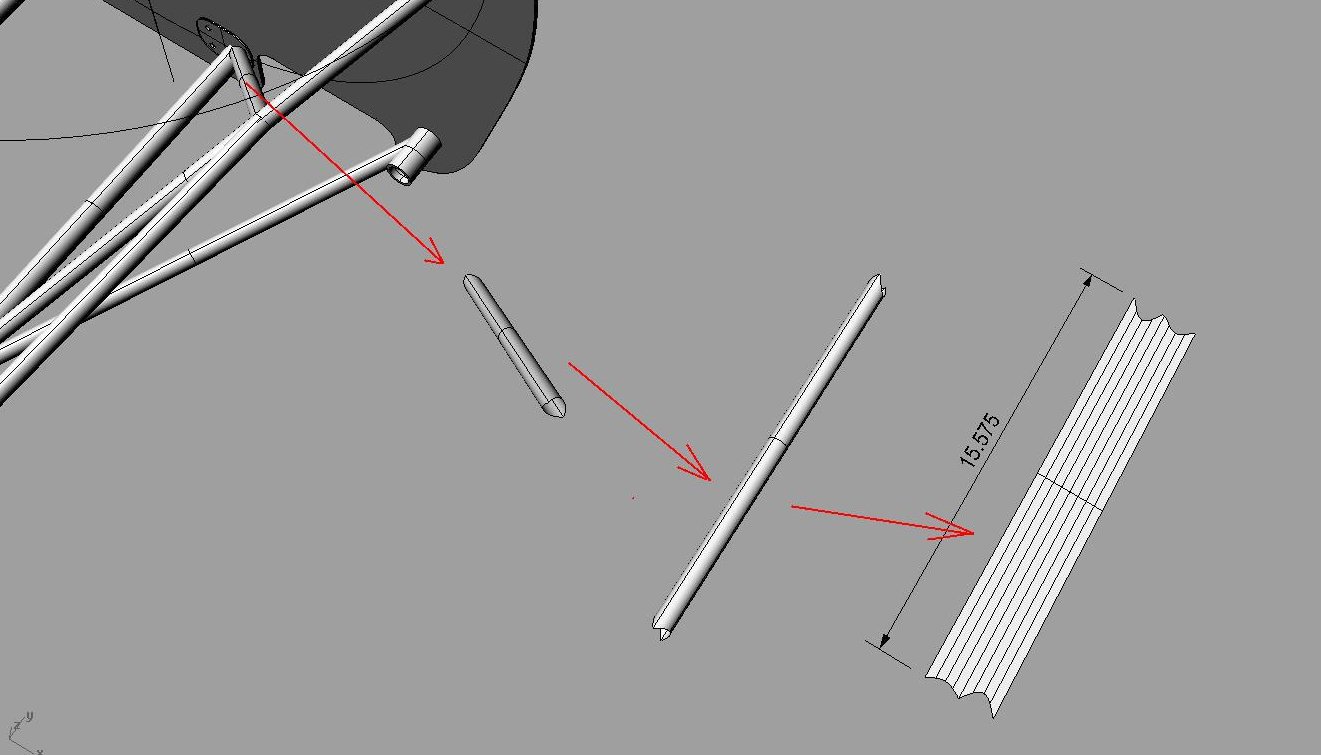

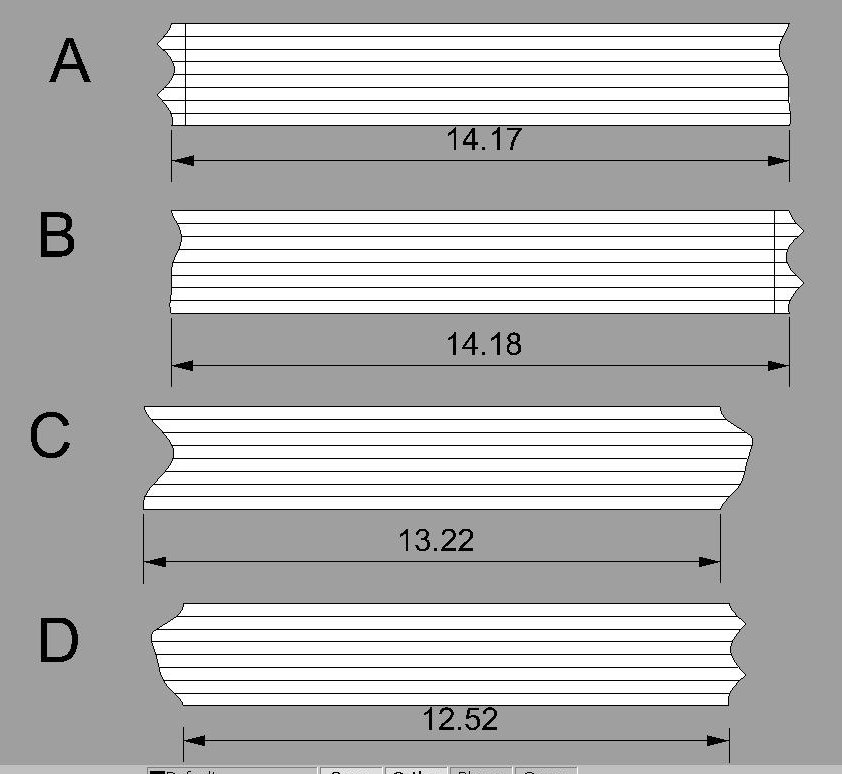

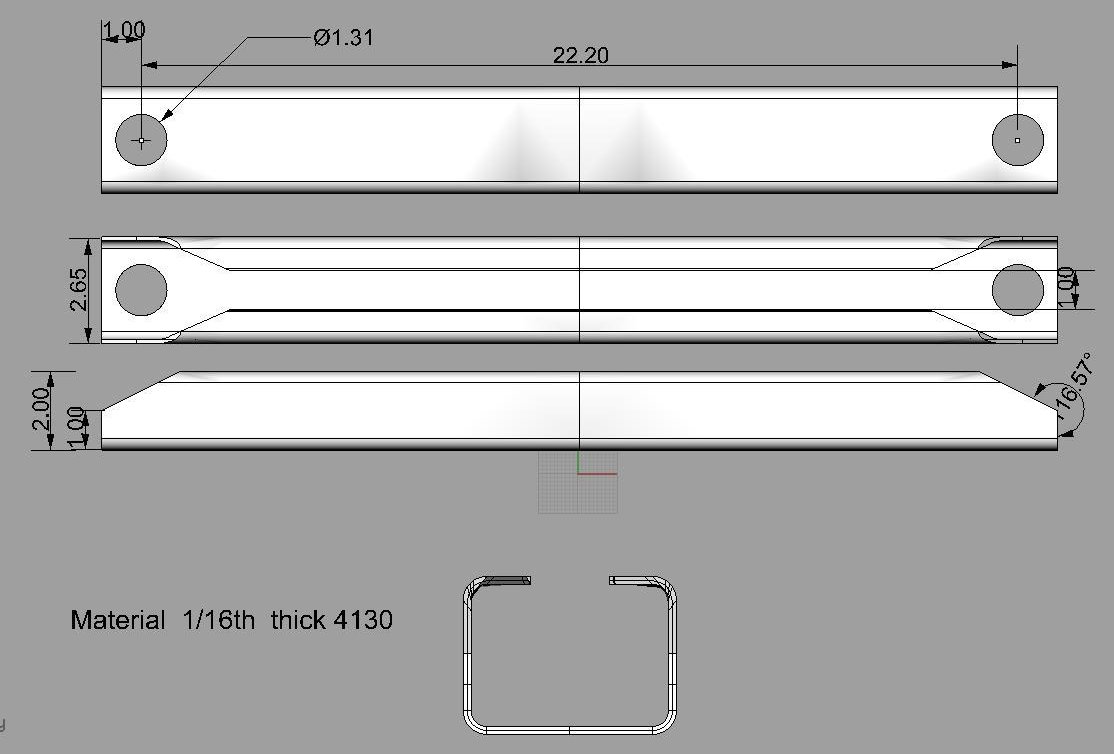

Here is the way I would do it using Rhino.

Paul Lamar
