Paul,

I thought we talked about a larger diameter, slower turning turbine some
time ago.  This looks very good!  I need one for around 5500 continuous
engine rpm.

Steve Brazil

------------------------------------------------
I think we finally have a handle good enough to recommend a direct drive turbine
diameter and blade configuration as a starting point.

I'll run through the numbers for you. Such a low engine RPM may not be practical
for a direct drive turbine. So don't get your hopes up too high.

-------------------------------------------------------------------------

To get closer in I need the exhaust pipe diameter and a measurement of the
dynamic pressure in the pipe using a SS pito tube.
The dynamic pressure will be in the range of 500 to 1000 pounds per square
foot or 3 to 7 pounds per square inch.

Paul Lamar

--

Paul

In measuring the dynamic pressure via a stainless pito tube does the pito
tube itself introduce an error in the reading?  I was under the
impression Mazda used some type of high temp. piezo electric sensor
inserted into a bung welded on the manifold before the turbine.

Doug in Japan

Not significantly. I think Mazda was measuring static pressure in the exhaust.
It is the combination of exhaust gas density and exhaust gas velocity you are
after. That is what generates dynamic pressure. Dynamic pressure is what
generates lift on a wing or a turbine blade. As you climb and the air density is
reduced you have to fly faster to get the same lift on the wing. If you heat the
air the density also goes down. That is were the term density altitude comes
into play.

-------------------------------------------------------------------------

I am just thinking out loud here. Given the dynamic pressure (we can measure
that) and exhaust gas temperature (we can measure that too) what is the gas
velocity? Anybody have any ideas on how to calculate this?

I suspect. It has something to do with the ratio of the temperature expressed
in Kelivin. 100 F is 311 K.  1700 F is 1200 K or four times higher.
Does that mean air density at 1700 F is one quarter of what it is at 100 F?

Dynamic pressure in pounds per square foot at sea level density
and standard temperature is .0026 (AD) time velocity squared.
D.P. = A.D. X V^2

-----------------------------------------------

Here is something else to think  about. The rotor face is 3 inches wide
and 7.5 inches long. The face moves from top dead center to bottom dead center
in 1/2 revolution. The rotor face moves in and out 2.5 inches. 11,000 RPM is 183
revolutions per second. One revolution in .005 seconds. Half a revolution in
.0025 seconds. So the rotor face speed is 2.5/.0025 or 1000 inches per second
in and out. If there were no rotor housing that would be the speed of the column
of exhaust gas moving in an out with the face of the rotor.

What happens is all of this column of exhaust gas goes through the exhaust port
which has an area of only 2 square inches. The speed of the exhaust gas going
out the port is increased. So the speed of the exhaust gas going out the port
is proportional to the ratio of the areas or (7.5 X 3)/2 or 11 times the speed
air moving in and out with the rotor. Namely 11000 inches per second or 917 feet
per second. I guessed 1000 feet per second which is pretty close. The question
remains. What is density of the exhaust gas?


Paul Lamar

------------------------------------------------------------------

Paul,

Wouldn't it depend on the molecular weight of the constituents?  Perhaps
some of these formulas will be helpful?

http://www.air-dispersion.com/formulas.html#gas

Doug in Japan.

------------------------------------------------------------
Thanks Doug. That site looks helpful.

****  pounds per cubic foot = ( 1 / Z )( MW / 10.73 )( psia / °R ) ****

Z= gas compressibility factor at the given temperature and pressure
(dimensionless)

MW= molecular weight of the gas

°R= absolute temperature of the gas in degrees Rankine = 459.67 + °F

Also, in many cases, it may be assumed that the ideal gas law applies and thus Z
may be taken to be 1.00.

That answers the Kelvin and Rankin question. Rankin for English and
Kelvin for French :).

All we have to do now is plug in known psia and Rankin for sea level
as a check and we should get air density which we know.

It is twice as hard being and old engineer because all the old stuff
(which turbo compounds are) is in English and the new stuff is in French.

As my late good friend Vance the rocket scientist would say; "We got to the moon
on inches".  If Vance were still here he would have the answer.

I guess that is why all those European engineers at the symposium where so
surprised when confronted with turbo compounding. They never heard of it before
as they were educated in French and turbo compound was invented in English :)

Still sorting this out.

------------------------------------------------------

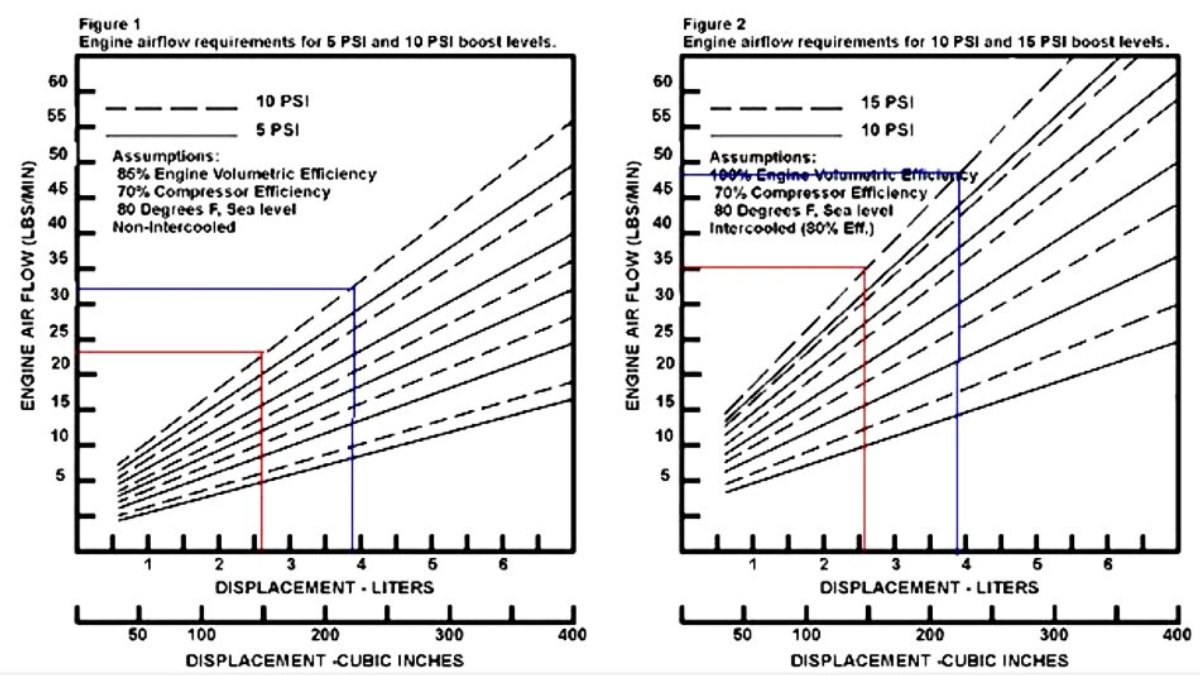

Wait a minute it is coming to me. We know the mass air flow rate
going in the engine and the mass airflow coming must be the same.
Mater can neither be created nor destroyed. The air density must be in the
ratio of the temps in Rankin or some such.

Paul Lamar
