Considering the present cowling shape, I studied a variation of your folded core cooling block. How about one fold....actually, two radiator cores with a common tank between them in a vee shape.....intake port at the top and exit port at the bottom. Scott Gettings keeps going back to this plan, but the problem was fitting the vertical radiators in a gradually sloping cowling. Then it hits me...why not give the vee shaped radiators a 90 degree flip. Now, we've got a ton of room for cooling core because it lends itself to the cowling shape (see One fold horizontal radiator (Large).jpg). We have enough room now put more cooling core for water AND oil than we need. With the rads mounted vertically. it adapts well to wedge diffusers in a traditional shaped horizontal intake.

I've also included some views of the cowling. Note that there is a lot of exit air room down both sides of the engine (see Cowling rear (Large).jpg)

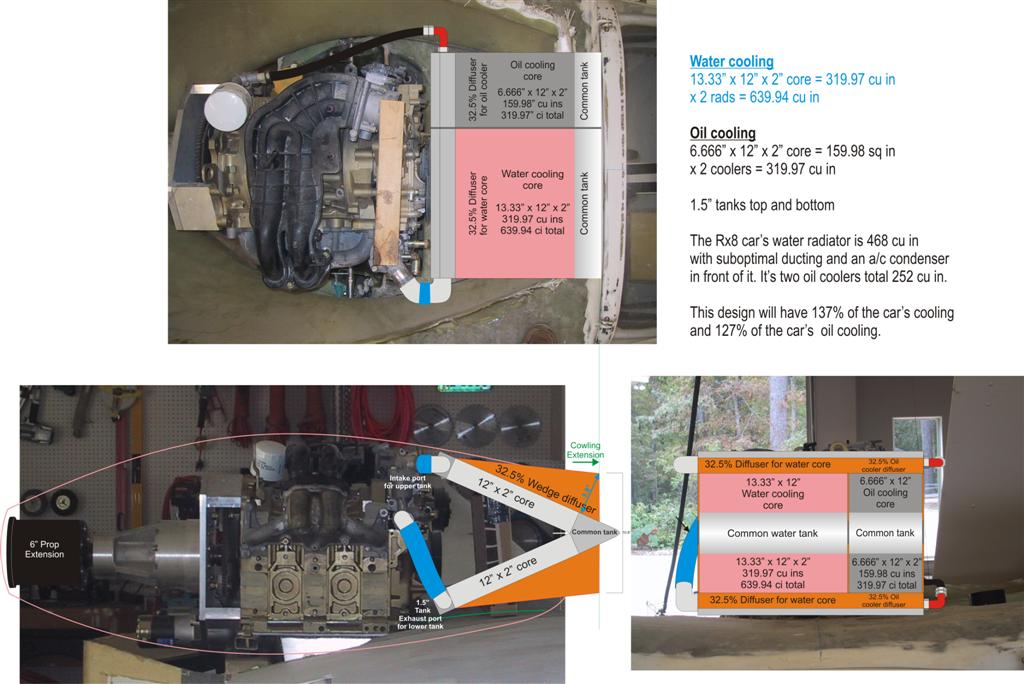

In the attached file (One fold horizontal radiator - Thicker Core Numbers (Large).jpg), there are some numbers for 1.75" and 2" cores.

Q1. What do you think about this plan? What adjustments would you like to see?

Q2. The 1.5" core offers about what the RX8 has in cooling. Would that be enough? I sure don't want to overheat in the summer on a Texas taxiway. If there is any doubt I'd rather have the cooling drag than the

heat.

Q3. Can the top intake port and the bottom exit port be on the same side of a radiator, or is it best to have them on opposite sides?

Thanks for you thoughts

Sandy McNabb
Renesis in a Glass Goose

Looks like it will work fine if you put the tanks on the sides instead of on the ends. That way top and bottom rad will be in parallel instead of  series.

I talked to the president of Fluiddyne and he was not interested.
I think he was feeling the down turn, He wanted a minimum of 12 cores 12 by 12 by 1 at $300 each. They are worth $100 each at the most.
In other words $3600. He was not familiar with thermo principles.
The engineer if any was not there.

I found a company in Brisbane Aus that understood what we were trying to do and agreed to make us anything we want including mounting the tubes at an angle so they are aligned with the air flow. The exchange rate is good with Aus and George Lendridge lives in Brisbane.
The company is PWR 103 Lahrs Road Orrneau Queensland 4208 The guys name is Matt Bryson 61 7 55547 16111 Email is matthew@pwr.com.au

More on this when I get home.

Paul Lamar

Paul,
How did you get onto this chap?
Do I mention your name?
I'm on to it first thing Monday.
Looks like he's in a large Industrial area, half way between Brisbane and
the Gold Coast. Lahrs Rd. is a feeder road running parallel with the
Freeway. Although I won't be able to visit him as I still can't drive for at
least another 2 weeks. However a phone call to touch base doesn't hurt.
George (down under)


They had a booth in the Performance Industry Trade show in Orlando Florida.
Matt is a very knowledgeable guy. He has the Kays & London book Compact Heat
Exchangers so he immdiately knew what I was talking about.
I showed him my Book on How to Cool Your Wankel.
He said he was going to buy a copy. When I get home I'll email  him and tell
him you will call. I'll just copy this email to him right now. His last name
is Bryson.

This works two ways guys. If they help us out we should put a PWR decal on
the airplane. I learned this at the show in a seminar.

Paul Lamar

Hey Paul,

Thanks for copying me on this email, and your kind words below.

I would be interested in seeing some of the drawings,sketches or photos of
your intentions for this project.

Hope to hear from you soon.

Kind regards,

Matthew

PWR

P.S I am flying out of Orlando on Sunday and have some business to do back
in Sydney Australia on Tuesday before returning home to Brisbane. I will be
back in the office on Wednesday.

Thanks Matt here is what Sandy has in mind. It is best if the rads are in
parralle.

Paul Lamar
==================================================

Hello Paul,

I'm looking at this cooling design (new version with 2" cores attached) as
one water heat exchanger (13.333" x 24" x 2") and one oil cooler (6.666" x
24" x 2") folded in the middle.....not four independent coolers. There are
major problems with putting the tanks on the ends:

1. Putting the tanks on the ends locates the tanks in the intake area which
reduces the horizontal area available for intake diffusers. With the tanks
on the top and bottom the whole 20" is available for the diffuser. Tanks on
the ends takes out 1.5" (tanks) x 4 (coolers) = 6" less horizontal area for
diffusers which causes a significant increase in the vertical dimension of
the diffusers, not to mention the 3" gap left between the coolers in the
front.

2. Putting the tanks on the ends also cuts the cooling core by 24 cu ins
(Tanks on top and bottom: 20" x 1.5" (tank size) x 2" (core) x 2 (tanks top
and bottom) = 120 cu ins. Tanks on the ends: 24" x 1.5" (tank size) x 2"
(core) x 2 (tanks on the ends of coolers) = 144 cu ins).

3. The plumbing is approximately doubled when treated as four independent
coolers....I think.

Where do I go now?

Thanks,
Sandy McNabb
Renesis in a Glass Goose

Everything is a trade off when it comes to heat exchangers. It will certainly
function that way but the question is; how well? Heat transfer is a strong
function of the temp difference between the air (100F) and the rad (200F). As
the coolant flows in the top rad and down through the bottom it cools off so the
bottom rad is not as good at transferring heat to the air. The rule of thumb is
one degree drop in the temp. difference is one percent drop in cooling. Another
rule is the first half does 3/4 of the work. If both are the same temperature
using side tanks total heat transfer is better. The side tanks can be tapered.
Thicker at the back (1.5 inch) and thinner at the front (0  inches).
I would be guessing on how much the difference is.

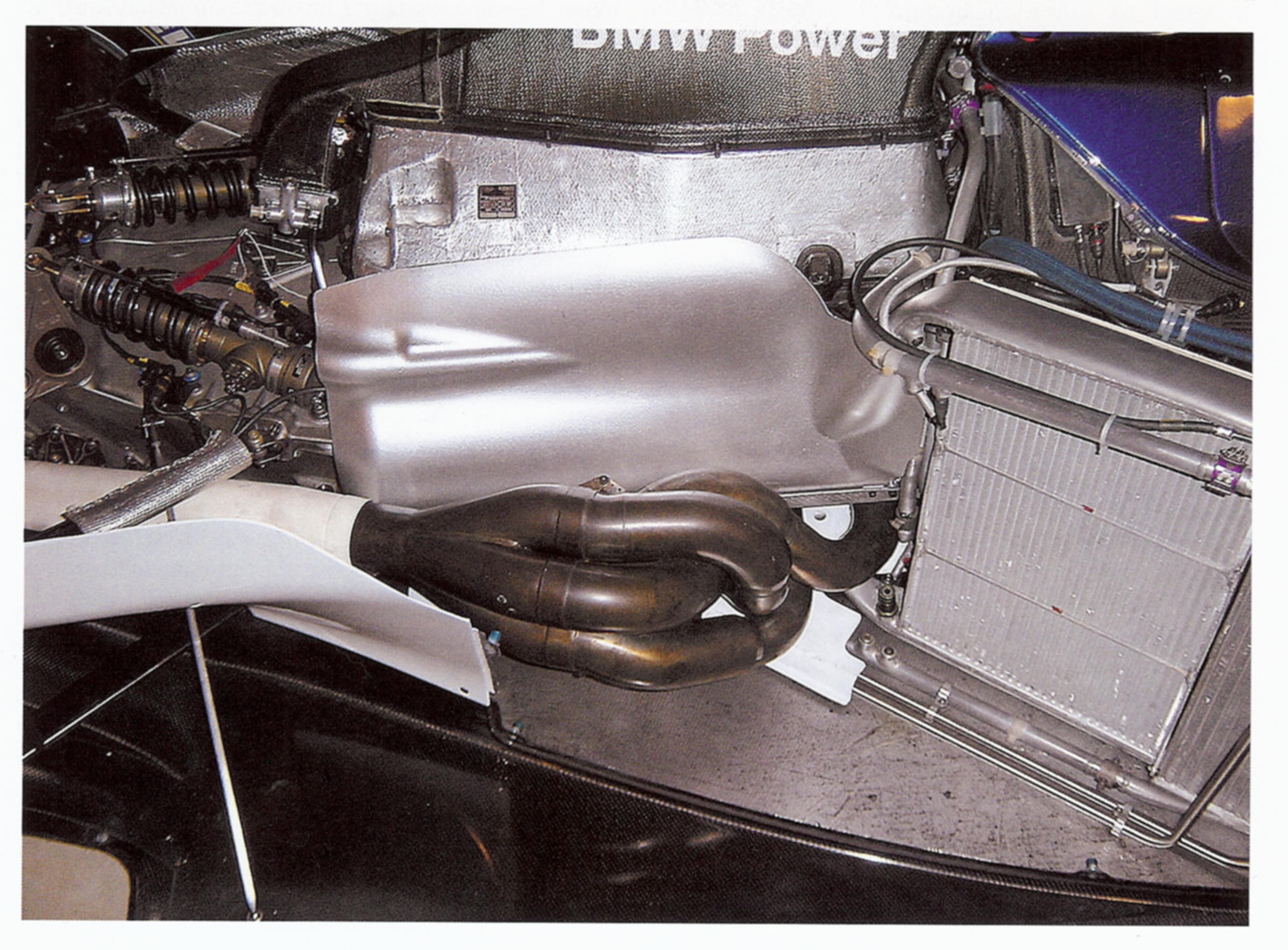

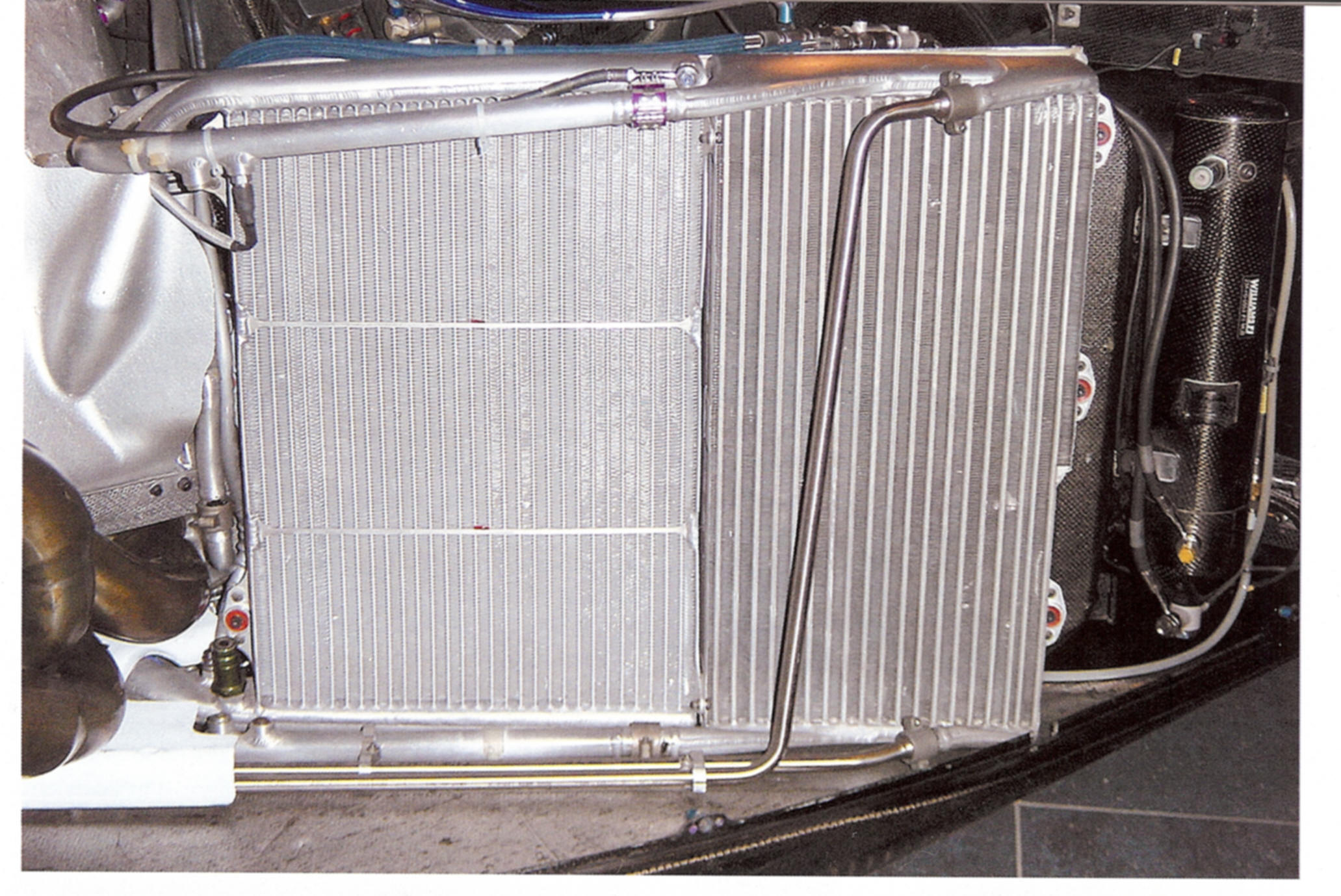

Here are a couple of pictures from F1. They are spending more money on R&D on
this subject than anyone.

On the oil rads you have no choice as they do not lend themselves
to  being welded together and if attempted it could be disaster due to the
150 psi of the rotary engine oil when cold if a weld fails.

You could cock the oil rads at some small angle to take advantage of the
widening cowl. I suggest plumbing those in parallel as well.

Perhaps Matt Bryson has some thoughts on this as he knows far more about it
than I do.

Bottom line is; it is always up to you and what you are willing to try.


Paul Lamar
