Here are a few charts from Heinz Heislers book Advanced Engine
  Tech and others. The first chart shows that; as the fuel air ratio gets
  real lean and the pressure lowers in the combustion chamber
  at high altitude the voltage required to fire the plugs goes up.
  Klaus has exploited this situation to lean his engine out
  at high altitude and improve the BSFC to remarkable levels
  by increasing the spark voltage. He has achieved as much as
  100 MPG at 130 MPH and 60 MPG at more reasonable cruising speeds.
  This is a piston engine where the spark plugs are at one end
  of the fire and the piston is at the other end.

  In our case we have a moving combustion chamber where the fire
  travels along side the spark plugs for quite some time. IMHO We want
  the spark plugs to continue to fire for as long as the unburned
  and burning mixture is still present moving past the plugs. That takes
  8.3 ms at six thousand RPM cruise RPM. See chart 2.

  A capacitor discharge ignition system is very good at firing
  spark plugs fouled with 100 LL but it only fires for .2 ms. Even
  an inductive system (Chevy LS1 coil) or stock Mazda ignition
  only fires for about .8 ms.

  IMHO NO WHERE LONG ENOUGH FOR WHAT WE NEED!

  IMHO we need an ignition system to fire for 8.3 ms or 300 degrees.

  TEN times as long. MSD makes a multiple spark capacitor
  discharge ignition system widely used by Mazda rotary
  engine racers but it only works up to 3000 RPM. After that it
  is "one strong spark" says MSD. Not enough in IMHO. This is why
  I am doing a m.s.d. ignition system with several pre-charged
  capacitors fired in rapid sequence by a cheap single chip computer.
  I hope this is a break through in improving the BSFC of
  the rotary engine. I think it is worth a try.

  Patent applied for :)

  --------------------------------------------------

  This is the range of rotor positions I intend repeatedly firing the spark
  plug. Mostly the leading plug (lower plug) as one does not want to risk
  igniting the mixture in the following chamber.

  Paul Lamar

  Good going Paul. We need the long duration. Will be very interesting.
  Sure wish we access to the Mazda factory development notes and a supplyof
  the three sparkplug rotor housings the Mazda factory built for the R26B
  LeMan's engines to improve efficiency.

  Steve Beckham

  Steve,
  Heck I would just like to be able to buy factor P-port housings for a
  reasonable price!
  2 plug or 3 I don't care.
  Paul,
  I think the long spacing idea is a good one. The only concern that I have
  is actual
  spark duration. Modern coils and CD ignition may improve things there. At
  Kawasaki
  in the 2 stroke era there were many single-spark CDIs. We found that the
  super short
  spark duration was a problem when lighting lean mixtures. Kawasaki had
  tried surface
  gap spark plugs, which had no side wire. The business end of the plug
  looked like a little
  target with the center electrode as the bullseye,a ceramic stripe andthem
  the case
  of the plug outside that. the surface gap plugs didn't work well because
  they carbon
  tracked easily and then there was a conductor for the spark to jump
  through. Later
  the choice was a standard plug with an incredibly large gap, around .100
  inches!
  Surprisingly this worked well because there was plenty of voltage to fire
  the gap, and
  with the long (length) spark they were more likely to actually hit someof
  the mixture
  molecules! The large gap standard plugs with single shot CDI lasted tothe
  end of the
  2-cycle era. If the duration of the spark can be improved you will have
  better results
  when firing the lean mixtures we want to run to improve BSFC on the
  rotary.
  Bill Jepson

  Bill, regarding your note about problems associated with firing lean
  mixtures with short duration CD, we experienced the same problem withlean
  mixtures and found the inductive worked much better all round. Ourengines
  were tuned for lower rpm peak power. I think the factory used a custom
  electronic CD with their LeMans engine. One of the file reference books
  shows a CD ignition in the ex-Le Mans three rotor 1986 IMSA GTO beforethey
  later switched to the four rotor for GTO. But it appears the factory was
  using CD for these engines even before going to the three sparkplugengines.
  But longer duration inductive system worked better for our engines.

  Steve Beckham

  Steve,
  As Paul and many others among our group have said, many thanks for sharing
  your wealth of experience with rotary installations. Can't beat hands on
  experience. Getting back to the CDI vs Conventional ignition, the rotary
  is a unique case because the spark plugs can't protrude into the chamber
  at all. Since the sliding seals prevent that I would think that a plug
  that presented the electrodes as close as possible would be best. I read
  that VW was experimenting with a no-side-wire plug and a pointedprojection
  on the piston to fire to. I don't know if they ever used it inproduction.
  The spark actually jumped to the piston. I thought that this type ofsystem
  would be perfect for the rotary. The plug could be closer to the rotor
  without a side wire and the long spark would be perfect to ignite the
  lean mixture. Having the plug closer would even bump the compression a
  little. Just thinking out loud but it seems like a possibility.
  Bill Jepson



We are going to fire the lower plug
over and over again. I called AEM and it does not fire
more than once past 3000 RPM according to the electronic
tech guy. He kept saying there was not enough time
but he was incorrect about that. I don't think they
designed it for a rotary where the rotor is moving one
third as fast as the shaft.

Paul Lamar

Hi Paul,

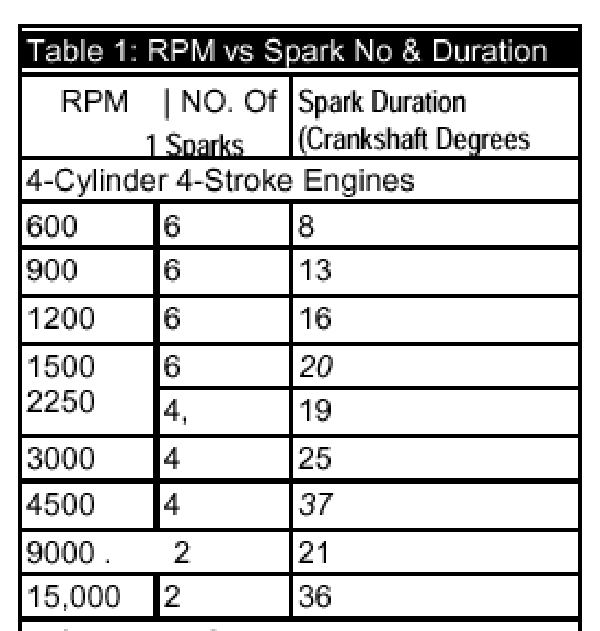

The info you got from the AEM tech guy agrees with the writings in
the PDF installation manual. According to part of that manual,
they are trying to get sparks accomplished over 20 deg of crankshaft
rotation. Above 3000 RPM the time available over 20 deg is too
short for the capacitors to cycle thru a discharge/recharge thus
limiting the number of firings. Sounds like their short comming may
be in the use of only 2 capacitors. Perhaps your new design should
plan on sequentially firing a dozen or so capacitors, that way the
capacitors have the time until the next rotor face passage to
recharge, you won't be trying to fire any single capacitor more
than once per combustion event. You'll need to compare the recharge
time available between combustion events and the discharge/recharge
time required for the particular capacitor you think will supply
enough energy for the coil you select.    Dave M

Maybe not a dozen as I think that will add too much circuitry.
I am still thinking about the best way to fire four or five.

-------------------------------------------------------

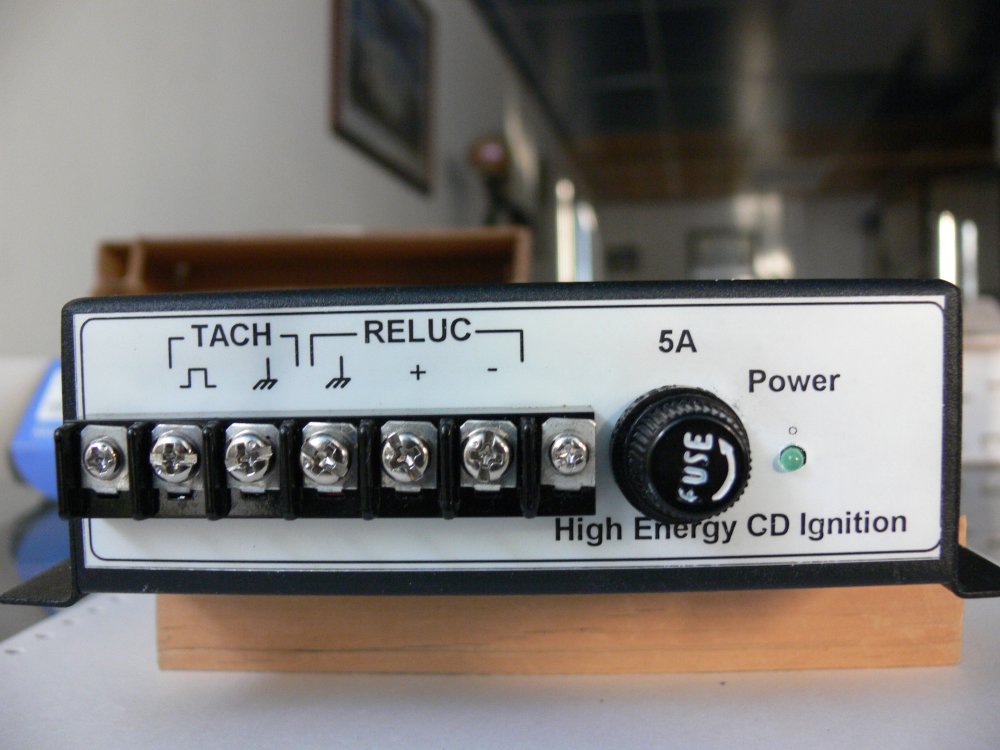

Aden Lindsay from Perth sent me this multi spark CD system
years ago and I forgot I had it. I did not pay enough attention
at the time as we were using other ignition systems. I'll dig it up out
at the hangar and set it up on the bench and test it. Claims to work

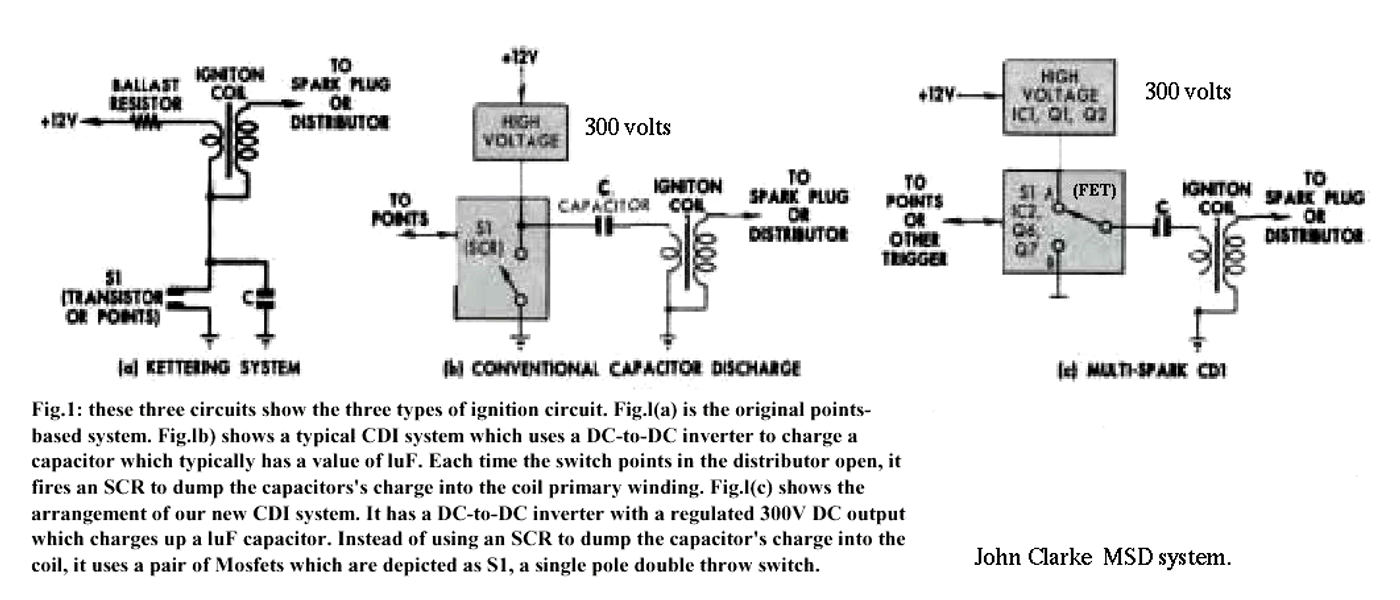

on a V8 up to 15000 RPM. What makes this work as a multi spark is
the totem pole capacitor switching circuit.

Two of these (one per rotor) ought to give us 4 sparks at up to 9000 RPM

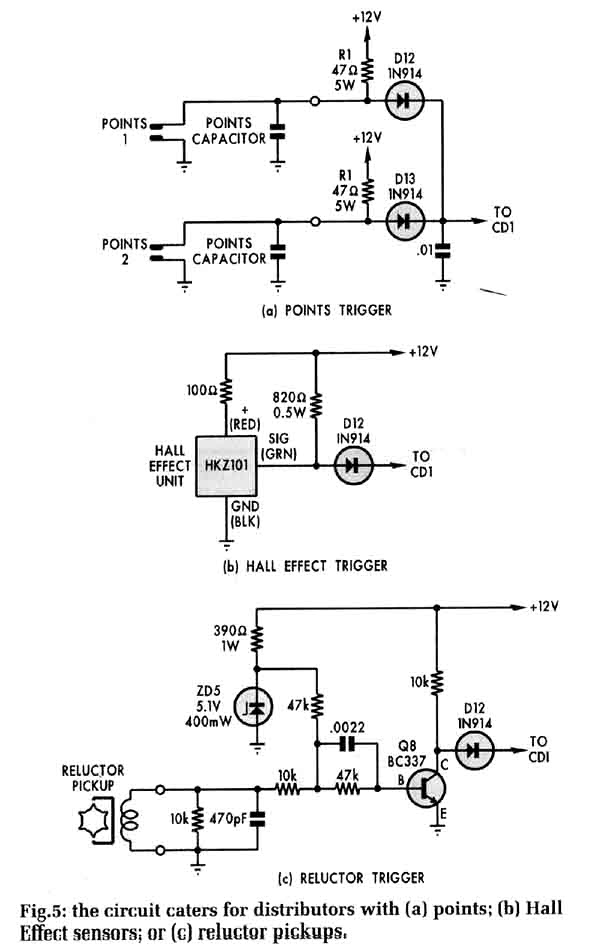

The new style crank angle sensors will simplify the trigger circuits
shown.

Thanks Aden.

----------------------------------------------------
One of these may have been tested on a four cylinder with a distributor
and shown no particular advantage since the sparks are at the top
of the cylinder. However two units are near ideal
for a 2 rotor with four sparks over a 22 degree range. Perhaps
I can figure out how to spread that apart.

Paul Lamar
