The next step after the 555 fuel injection system is a good ignition
  system.

  I have come up with a very simple way to have four or more sparks
  one every 15 pr 20 degrees or so of the e-shaft. I think this might
  reduce the BSFC by about .03 or .02  at least I hope it will.

  Patent applied for.

  That does not sound like much but it is about
  5% reduction in fuel burn. Mazda completely redesigned the 16B rotary
  and retooled the factory to get a 5% reduction in fuel burn at
  car power levels. Cost? Hundreds of millions if not a billion dollars.

  http://www.rotaryeng.net/pat20090101103.pdf

  Most of this was optimizing the position of the spark plugs
  and the timing. Evidence that there is potential for lower
  rotary engine fuel burn with more R&D focused on the ignition system.

  In our case we have a moving combustion chamber where the fire
  travels along side the spark plugs for quite some time. IMHO We want
  the spark plugs to continue to fire for as long as the unburned
  and burning mixture is still present moving past the plugs. That takes
  8.3 ms at six thousand RPM cruise RPM. See chart 2.

  A capacitor discharge ignition system is very good at firing
  spark plugs fouled with 100 LL but it only fires for .2 ms. Even
  an inductive system (Chevy LS1 coil) or stock Mazda ignition
  only fires for about .8 ms.

  IMHO NO WHERE LONG ENOUGH FOR WHAT WE NEED!

  IMHO we need an ignition system to fire for many milliseconds or
  at least 60 e-shaft degrees.

  This is why I am doing a m.s.d. ignition system with several pre-charged
  capacitors fired in rapid sequence by a by 3 or 4 inductive sensors
  per rotor mounted 15 or 20 degrees apart near the e-shaft ignition steel
  disk with one tooth. Extremely simple and no computer required.

  I hope this is a break through in improving the BSFC of
  the rotary engine. I think it is worth a try.

  MSD makes a multiple spark capacitor
  discharge ignition system widely used by Mazda rotary
  engine racers but it only works up to 3000 RPM. After that it
  is "one strong spark" says MSD. Not enough IMHO.

  I called AEM and it does not fire
  more than once past 3000 RPM according to the electronic
  tech guy. He kept saying there was not enough time
  but he was incorrect about that. I don't think they
  designed it for a rotary where the rotor is moving one
  third as fast as the shaft.

  Here are a few charts from Heinz Heislers book Advanced Engine
  Tech and others. The first chart shows that; as the fuel air
  ratio gets real lean and the pressure lowers in the combustion
  chamber at high altitude the voltage required to fire the plugs
  goes up.

  Klaus has exploited this situation to lean his engine
  out at high altitude and improve the BSFC to remarkable levels
  by increasing the spark voltage. He has achieved as much as 100
  MPG at 130 MPH and 60 MPG at more reasonable cruising speeds.
  This is a piston engine where the spark plugs are at one end of
  the fire and the piston is at the other end unlike our
  situation. IMHO much of the piston engine ignition knowledge
  is not applicable to the rotary.

  P1080482 through P1080487 are the range of rotor positions I
  intend repeatedly firing the spark plug. Mostly the leading plug
  (lower plug) as one does not want to risk igniting the mixture
  in the following chamber. In other words we are going to chase
  the fuel air mixture with the spark.

  I have searched high and low for a long time for a LOW COST high
  power 12 volt to 300 volt DC to DC converter. Finally I found the

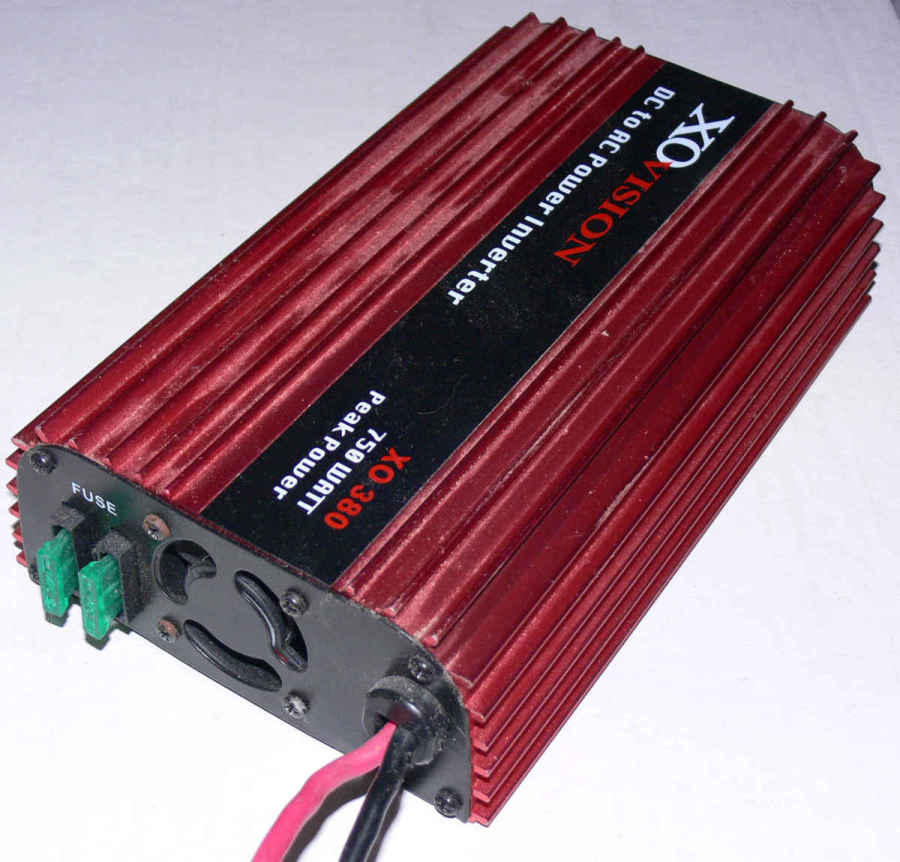

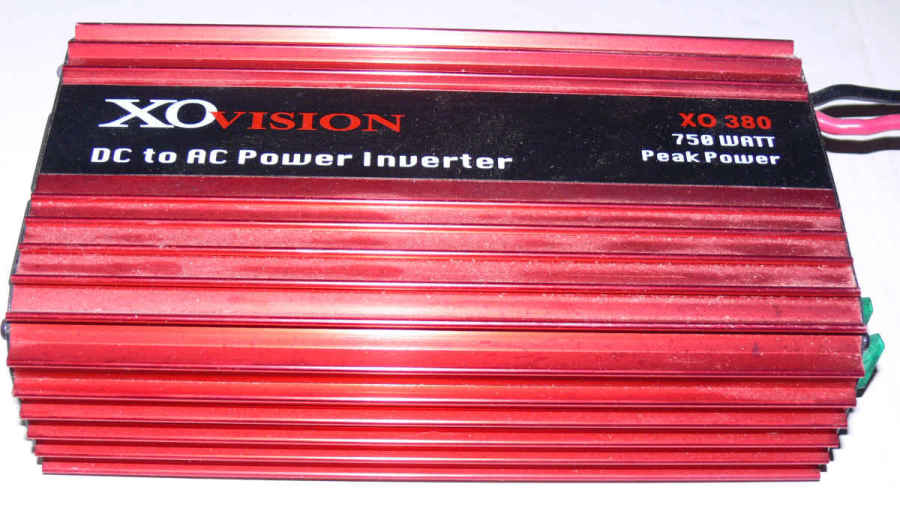

  solution. Here is what I have come up with. See DC-AC 1 through
  3.

  This is a mass produced under $100 automotive DC to 110
  volt AC 750 watt fan cooled converter. It weighs about 2 pounds.

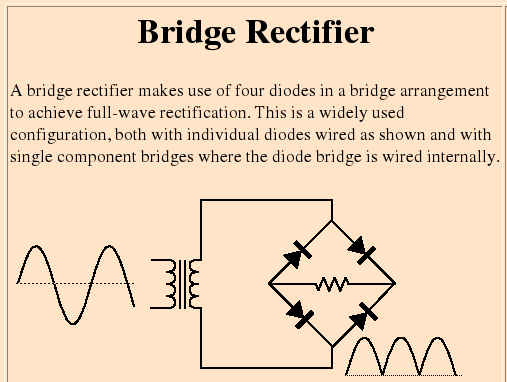

   All I need on the output is a full wave diode bridge circuit
  to convert it to  about 250 volts DC for rapidly charging the
  capacitors. One for each spark. Current to the capacitors can be
  as much as 3 amps!  At the full 750 watts current drain on the battery
  will be as much as 60 amps! I am not sure I need this much ignition power
  until I test the overall system at 7500 RPM but I have it if I need it.

  More info later on the total system.

--------------------------------------------------------------------------------------

You are looking at one of the most powerful ignition systems ever put
on an engine and it only cost $35 :)

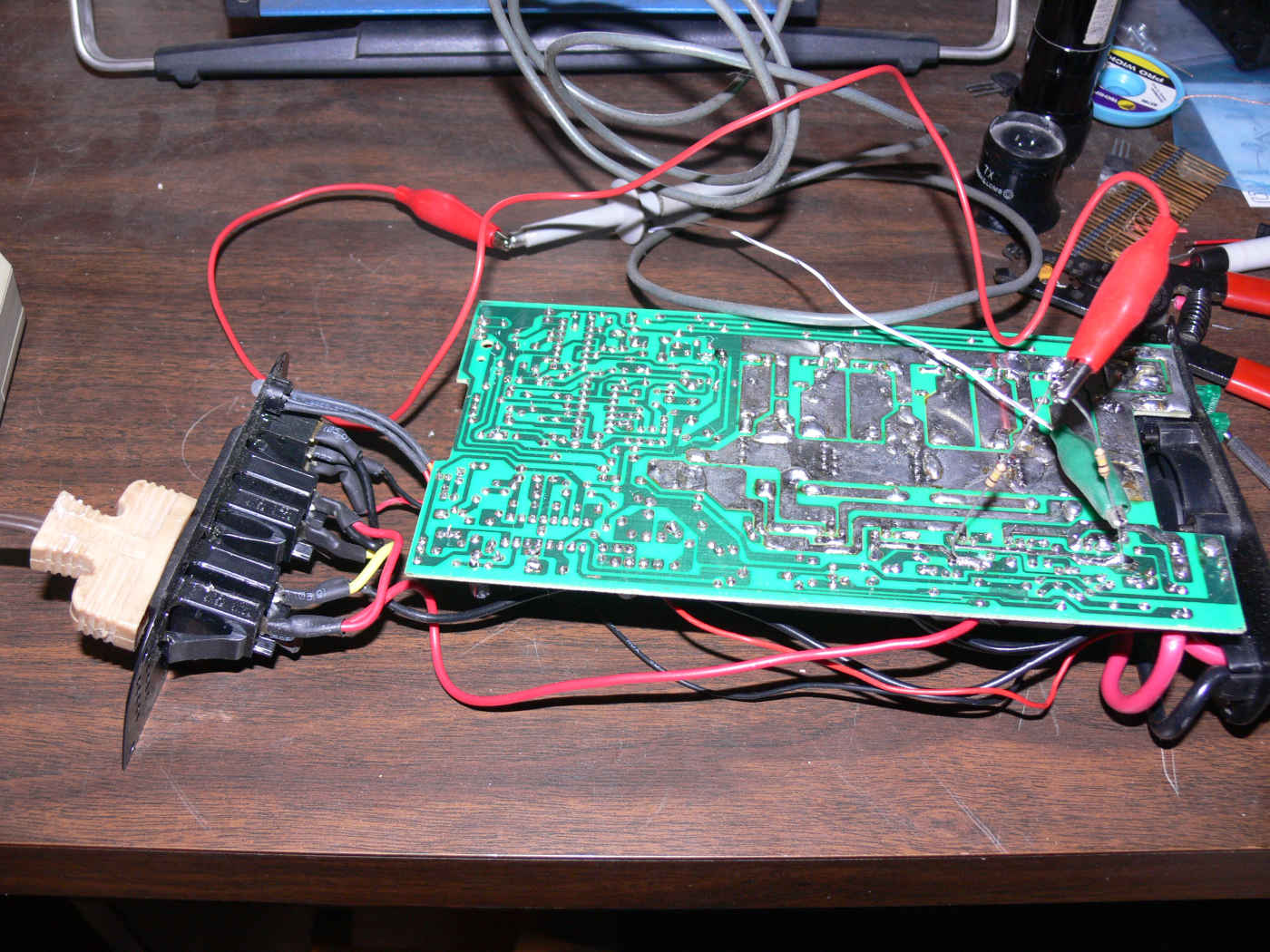

This is the PC board of the XO Vision 380 watt 110 volt Ac inverter.
750 Watts peaks. Fortunately XO Vision did not go to all the trouble
of forming a perfect sine wave. This modified square wave is perfect
for my purposed as I will invert the lower half with a bridge rectifier.
It put out 320 volts peak to peak so when inverted it will be 160 volts
DC. That is the big trick that allows me to use a mass produced off the shelf
item as a powerful CD ignition system. The current drain on the 12 volt
bench power supply was 8 amps. The load was a 60 watt incandescent light bulb.
The unit dose not like to run with no load.

The scope horizontal was set to 2 ms per divison and the vertical was 40
volts per division so you are looking at 320 volts peak to peak. After the
bridge rectifier is installed it will be 160 volts DC more or less.

I have located a higher quality, more expensive 400 watt inverter unit
that puts out European 220 volts AC so the DC voltage should be around double
this or about 320 volts. Just about right for a CD ignition system. More
to come as we will  need caps and switches.

Paul Lamar
