Paul could you please post the drawing for the oil pan and include the
materials and dimensions?

I'll be using a mount almost identical to the CH-801 you previously
designed. Also same for the S-beam? When fabricating the S-beam what radius
is desired for the bend please? Does one use a hole saw for the lightening
holes or a fly cutter? Thanks a bunch. I have an autocad viewer, so should
be able to view a .dwg or .dxf file.

C. Smith

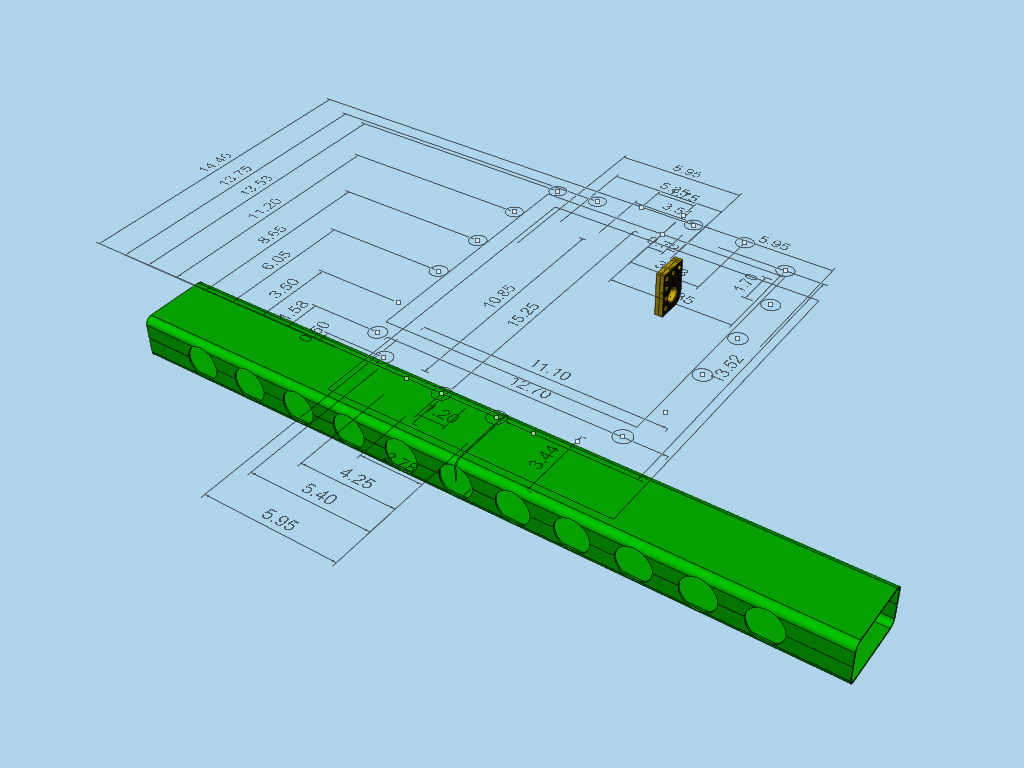

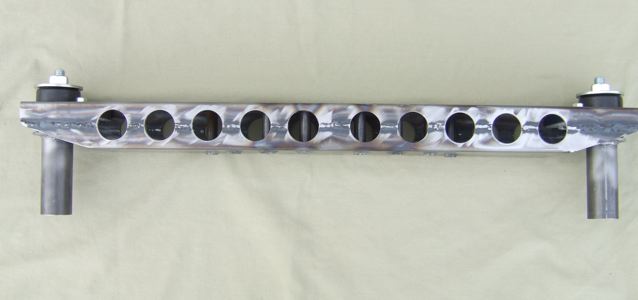

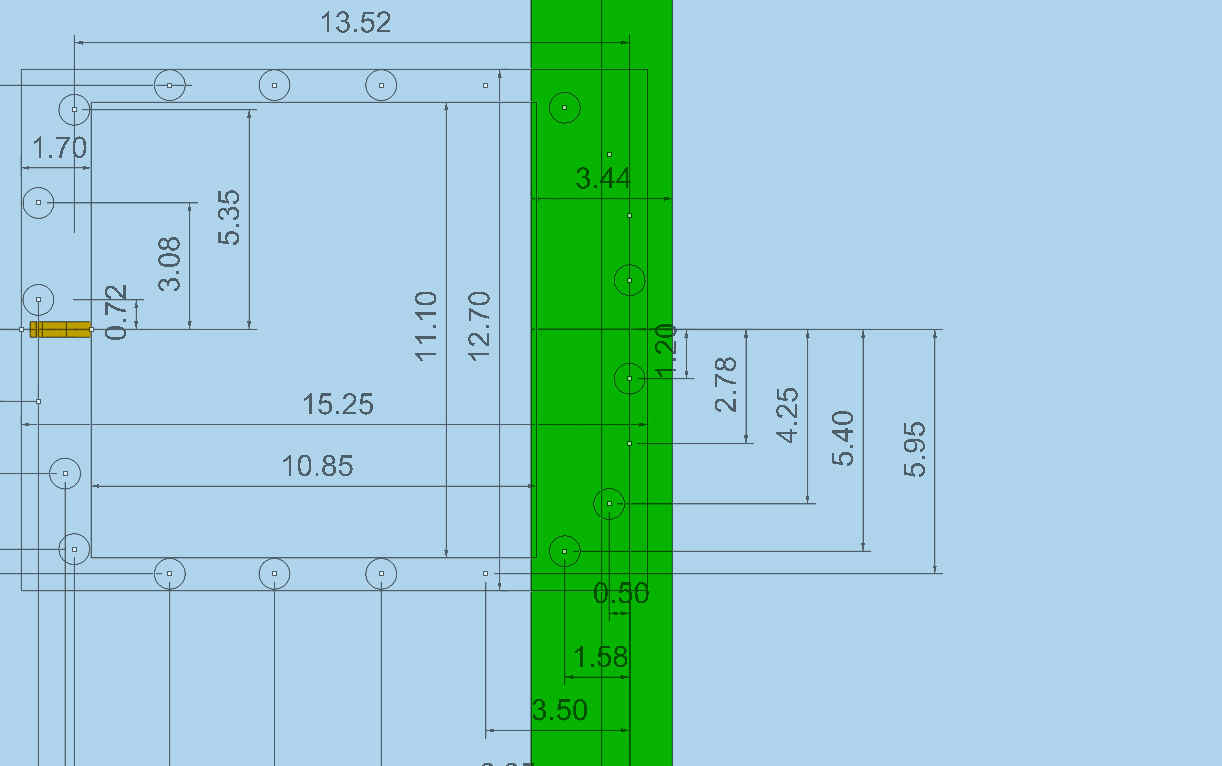

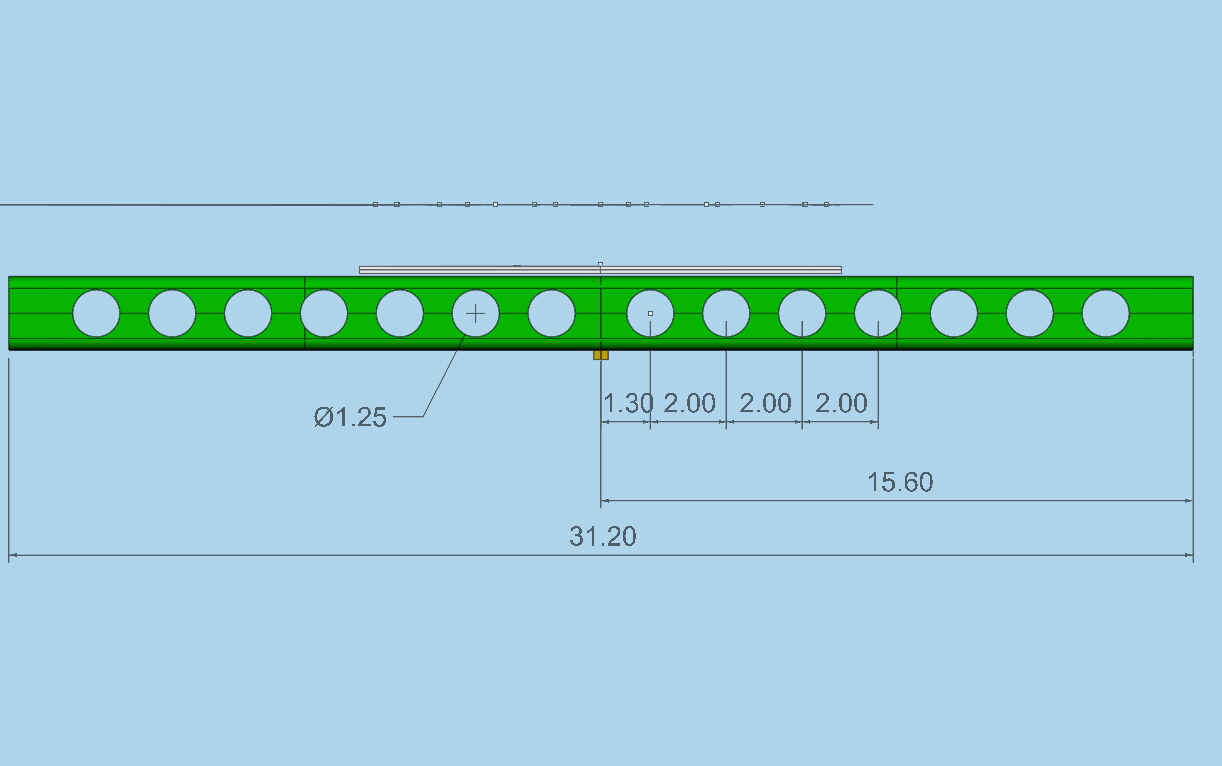

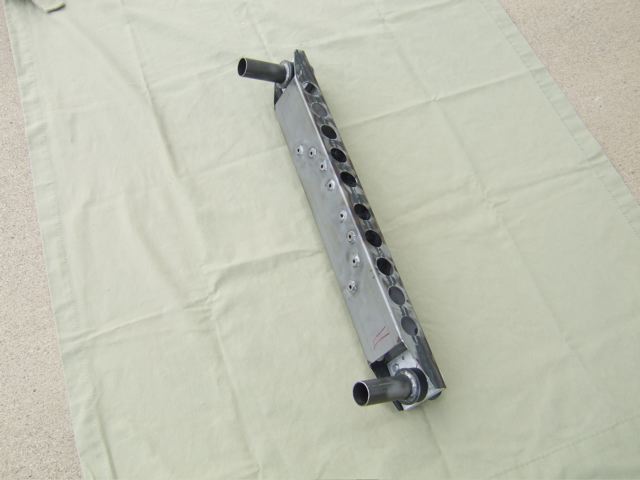

Here are some old designs but they may need to be adjusted
your type of airplane.


Paul Lamar
