Paul, I don't know if you have this covered in your drawing,
but there is an oil seal of some kind pressed into the TC PSRU
base plate. I'm shipping it out today to Jeff.
C. Smith

Yes the oil seal counter bore on the back side of the plate is in the
3D I sent to Jeff.

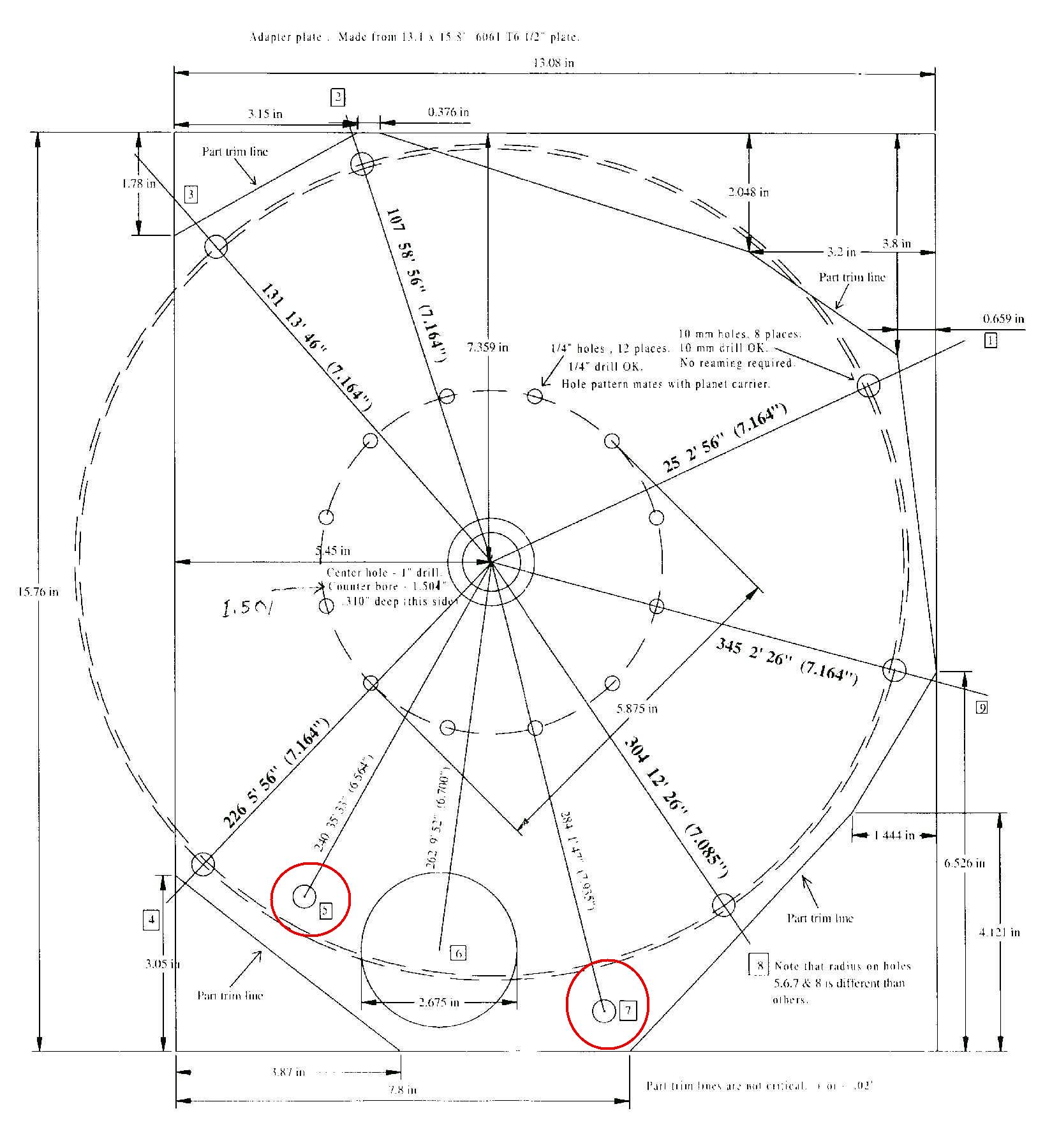

Here it is in Tracy's dwg.
Did you notice a shallow counter bore on the front side?
I am not sure he is still shipping them this way.

What is not is the mounting holes for the starter. I found an error
in Tracy's dwg so I left out the holes. It is easy to match drill
the holes once you have the 2nd gen starter.

Jeff, please take some pictures of the final product and send them to
me.

I'll put your name in address in the parts for sale section on the web site.

BTW we also need some one inch OD spacers drilled and two of them counter bored
for the hollow dowel pins. That can easily be done on a manual lathe.
Of course an NC lathe could knock out a bunch at low cost.
Craig has a set of spacer blocks from Tracy's that are rather crude
but the correct length can be determined by measuring those.

Paul Lamar
