Don't laugh. Dos
  has some real time advantages. XP will go into DOS mode. If it
  goes into DOS mode  it may be possible to do all sorts of real
  time  hardware stuff like fuel injection systems. Windows and
  Linux are multitasking which make them near useless for real time
  hardware stuff. Too much back ground house keeping going on.

  If it will run DOS it will probably run Quick Basic Compiler that
  can  access the USB ports directly as serial ports in real time. I
  run QB in XP all  the time.  Quick Basic has real time commands
  for directly controlling hard  ware including serial ports. It is
  small enough that I can email it to you. It  is very easy to
  learn. Many of us older computer users already know how to program
  in QB. I have tons of source code including a moving map program
  that takes in data from a GPS. UPS GPS receivers are available. One
  can buy a USB to parallel adapter kit that will out put 8 bits at
  a time with hand shaking. Each bit could control an injector. The
  key is what is  available USB as most note books or net books no
  longer have parallel printer ports.

  The other possibility is boot up DOS directly from a 3.5 inch
  floppy disk.

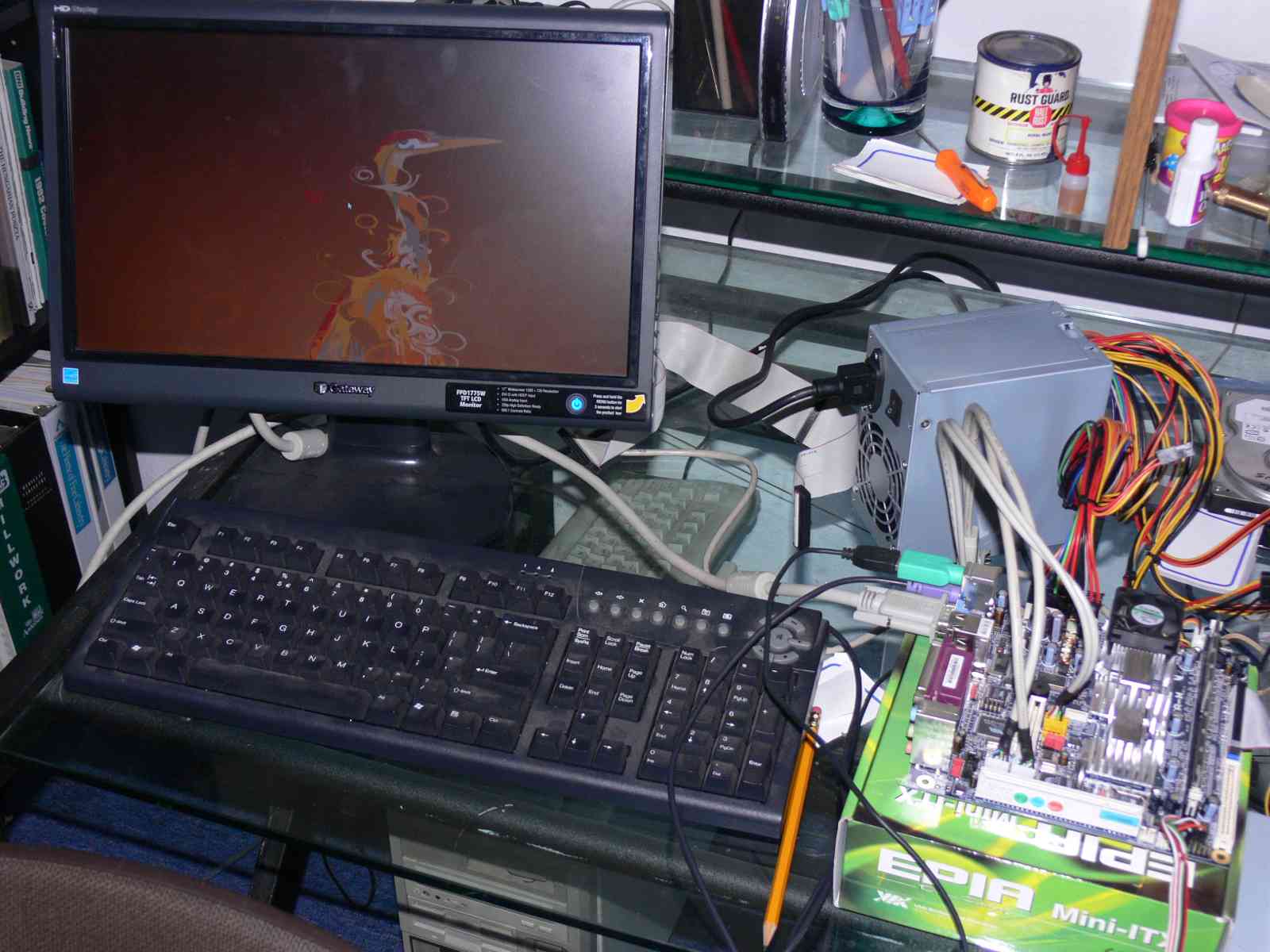

  I have a VIA EPIA PC mother board at the hanger that cost less
  than $90  with the processor on board with floppy connector. It
  has a PCI connector so many PCI cards will plug in. See below.

http://www.via.com.tw/en/initiatives/empowered/pc3500_mainboard/index.jsp

  It runs DOS likity split.

   --------------------------------------------------------------
  Make a folder  under 7 called QB1. Save this zip file to that folder.
  unzip it and delete the .zip file. Call up the command line. "cd"
  to the  qb1  folder with a successions of "cd". When you get there
  type qb on the commad  line and the qb program integrated
  development system will run. You will  come  up in the editor and
  you can run the the program directly from the editor  or  compile it
  from the editor. The help is self contained. The editor is smart
  and will automatically correct a lot of your syntax errors. It is
  the  easiest  programming language ever written.

  type in this program:

  for x = 1 to 10
  print "craig"
  next
  exit

  A high speed data acq system is trivial to write.
  We are talking 1000's, of samples per second here.

  It could be as simple as this

  Start:
  data1= peek (xxxxx) 'where xxxxx is the address of the A to D
  hooked to  ' the parallel port.  print data1  goto start

  http://www.petesqbsite.com/sections/tutorials/zines/qboa/4-beginner.txt

  Paul Lamar

  Yes, package received. Thanks a bunch. This should be quite educational.
  When you talk about the bounces, there is an automatic security
  block on  Ford corporate servers that trashes all messages with .zip
  files  Probably something similar happened with your post to other
  members. This  address is  my personal box, so it comes right through.
  C. Smith

  -------------------------------------------------------------------

  Here it is my DOS QB EFI source code. Took me less time than I thought.

  For illustration purposes I limited the A to D to 2 bits or four
  possibilities. Same for the RPM so this is a crude system.
  I simulated reading the A to D by a keyboard entry of an integer number
  between 1 and 16.

  4 MAP readings  times 4 RPM readings is 16 so all we have is 16 different
  pulse widths. Consider the integer PW number of 60 as 6.0 ms.

  This of course could be expanded to a 8 bit A TO D in that case
  there would  be 8 x 8 or 64 pulse width numbers. That should be
  sufficient to get the  engine in the mixture ball park.

  The trade off here is a couple of hundred dollars worth of stock
  PC parts  compared to say something like a Megasquirt for easier
  programming. All  sort  of other things can be done with the full
  screen of course in terms of  displaying all sorts of other data.
  For example the screen could read out  the  real time value of the
  pulse width being used and the RPM. It could also  total the pulse
  widths and read out the GPH. It could also run my DOS-QB  based
  moving map software as I only need that data out of the GPS once per
  second.

  A program to access the USB port from DOS would be a big plus.

  --------------------------------------------------

  I improved the program somewhat by separating the RPM and the MAF
  inputs to  make it a bit more realistic.

  I also added a pulse width generators as mPC hard ware does not
  come with  one.

  CLS
  INPUT "Input RPM "; RPM
  INPUT "Input MAP"; MAP
  position = RPM * MAP '"address" in the mixture table
  TYPE PWlist
  PW AS INTEGER
  END TYPE
  DATA ,51,52,53,54,55,56,57,58,59,60,61,62,63,64,65,66,
  FOR x = 0 TO position
  READ PW
  NEXT
  PRINT
  'pulse width generator
  PRINT "00000000";
  FOR y = 1 TO PW'delay up for  injector trigger.
  PRINT "1";
  NEXT y
  PRINT "00000000"  'take the pulse back down

  To change the mixture one modifies the numbers in the DATA line.
  This version is still 2 bits to keep it simple.
  3 bits would give us 7 combination each for RPM and MAF so the resolution
  would increase to 49 pulse widths.


  ----------------------------------------------------
  This makes the DOS-QB-EFI look much better.

  http://www.bootdisk.com/usb.htm

  All sorts of possibilities are opended up.
  Booting DOS from a USB stick would be ideal,
  No need for a fragile hard drive.
  Booting DOS from a small net book from a USB 3.5 floopy drive.
  USB to par. printer port for injector triggers.
  USB to RS232.

  ---------------------------------

  I wrote a short program to see how fast QB was in terms of instructions
  per second. This was QB running under Windows XP in a command window.
  This was my old HP notebook computer so I don't know how fast the
  processor is. My guess is 500 Mhz

  Here is the program
  CLS'clear screen
  PRINT TIME$'print the current time to the nearest second.
  FOR x = 1 to  9000000  'count up to nine million
  NEXT
  PRINT x
  PRINT TIME$

  The program completed in 3 seconds or 3 million QB instructions
  per second in interpreter mode. Plenty fast enough.

  With out compiling this program and disassembling the compiled
  code I don't  know how many machine level instructions were needed
  for each QB  instruction.  The compiled code size was 26K bytes. The
  compiled code took 8 seconds to  complete so something is strange.
  Compiled should be faster. I'll run the  same test on the stand
  alone DOS computer and report back.

  Paul Lamar

  http://www.cpuid.com/cpuz.php

  <http://www.cpuid.com/cpuz.phpThis will give you all the processor info.


As far as QB, I had
a course on it in the nineties when I was getting my BS.  We need to find an
inexpensive small computer that takes DOS. An outline of what hardware is
needed.  There seems to be QB sites on the web also.  I have a Timex around
here somewhere.

Joe Berki
Limo EZ

----------------------------------------------------------------

PC mother boards are getting smaller and cheaper real fast.
Here is a 6.5" by 6.5" Asus AT3N 74-5 I saw in Fry's today.
It will run DOS probably so it can be used in real time.
It is at least 25 times faster than the average run of
the mill single chip computers found in most EFI systems.
Cost was $160 with the processor.

Intel Atom Intel Atom
Clock rate 1.6 GHz
Data Bus Speed     533 MHz
RAM Installed (Max) 0 MB / 4 GB (max)
VGA
Ethernet
8  Hi-Speed USB


It is low technical risk as it is very simple and quick to
program or change the program.
------------------------------------------------------------
I have decided to go this route for the dyno engine control.
Lots of options for ignition triggers and fuel injection
schemes. Not to mention tremendous data acquisition is almost
automatic.

This is the best I/O card I have found so far but I am still
looking. It is kind of over kill but I don't have to use it
all.

3 counter timers for RPM determination.
Lots of digital I/O plus all of this.

The card accepts up to eight differential or 16
single-ended analog input channels.  Inputs are protected
against over-voltage conditions up to +35 volts and
typically survive static discharges beyond 4000 volts.  The
channel input configuration is software selectable.  When
using the card in differential mode the common mode
rejection ratio is a minimum 80dB at 45KHz and the common
mode voltage rejection capability is +11V.

   The input signals are amplified by an onboard
instrumentation amplifier to provide voltage ranges of 10,
5, 1.25-6.25, and 1.25-3.75 volts unipolar and ±10, ±5,
±2.5 and ±1.25 volts bipolar.  In addition, you can read 4-
20 mA current inputs by manually installing jumpers to
utilize onboard resistors.  In this case, the current input
is converted to an analog voltage range of 1.25-6.25V with
full 12-bit resolution and there can be up to eight inputs.


What this means is I can connect a wide band current output
O2 sensor directly to the card and process the data in QB
software. In effect a closed loop EFI system that will
hold any mixture ratio constant.


Each channel must be dedicated to either voltage or
current.  This card contains an industry standard 12-bit
successive-approximation analog-to-digital converter (A/D)
with a sample and hold amplifier input.  Under ideal
conditions throughput of over 100,000 conversions per
second is possible.  This card has a 2K samples FIFO data
buffer and a 2K words point list buffer.  These buffers
give capability for full-speed counter-driven background
data-acquisition with no computer interaction until the
data FIFO needs draining.

This allows 100,000Hz data to be taken with little
processor overhead.  A/D conversions may be initiated in
any of three ways: (a) software command, (b) an on-board
programmable timer, or (c) direct external trigger.  In
turn, data may be transferred to the computer by any of
three software selectable methods: (a) polling for
end-of-conversion (EOC), (b) polling for a half-full FIFO,
or (c) a half-FIFO interrupt.

This is an extremely powerful EFI system for a few hundred
dollars. Programmed in minutes.

BTW I got the single cylinder demo board and software from
FreeScale but I am sending it back. Too expensive for what
it does. Much harder to program than QB as well.

-------------------------------------------------------
One of the really neat things about DOS Quick Basic for real
time programing is it has hardware interrupt capabilities.
In other words regardless of what the program is doing
it can be interrupted by an external electrical signal and forced
to run a sub program to deal with it. For example we could
interrupt the QB program every time the rotary hit TDC on
rotor one. At 7500 RPM this happens only 125 times a second.
A piece of cake for a PC processor that is 25 times as fast as
your average CPU found in a typical EFI system.

One trick is to use a USB to RS232 adapter and use the Clear
To Send signal as an input to QB from the crank angle sensor.

The QB command is: ON COM(1) GOSUB ServiceTDC

---------------------------------------------------------

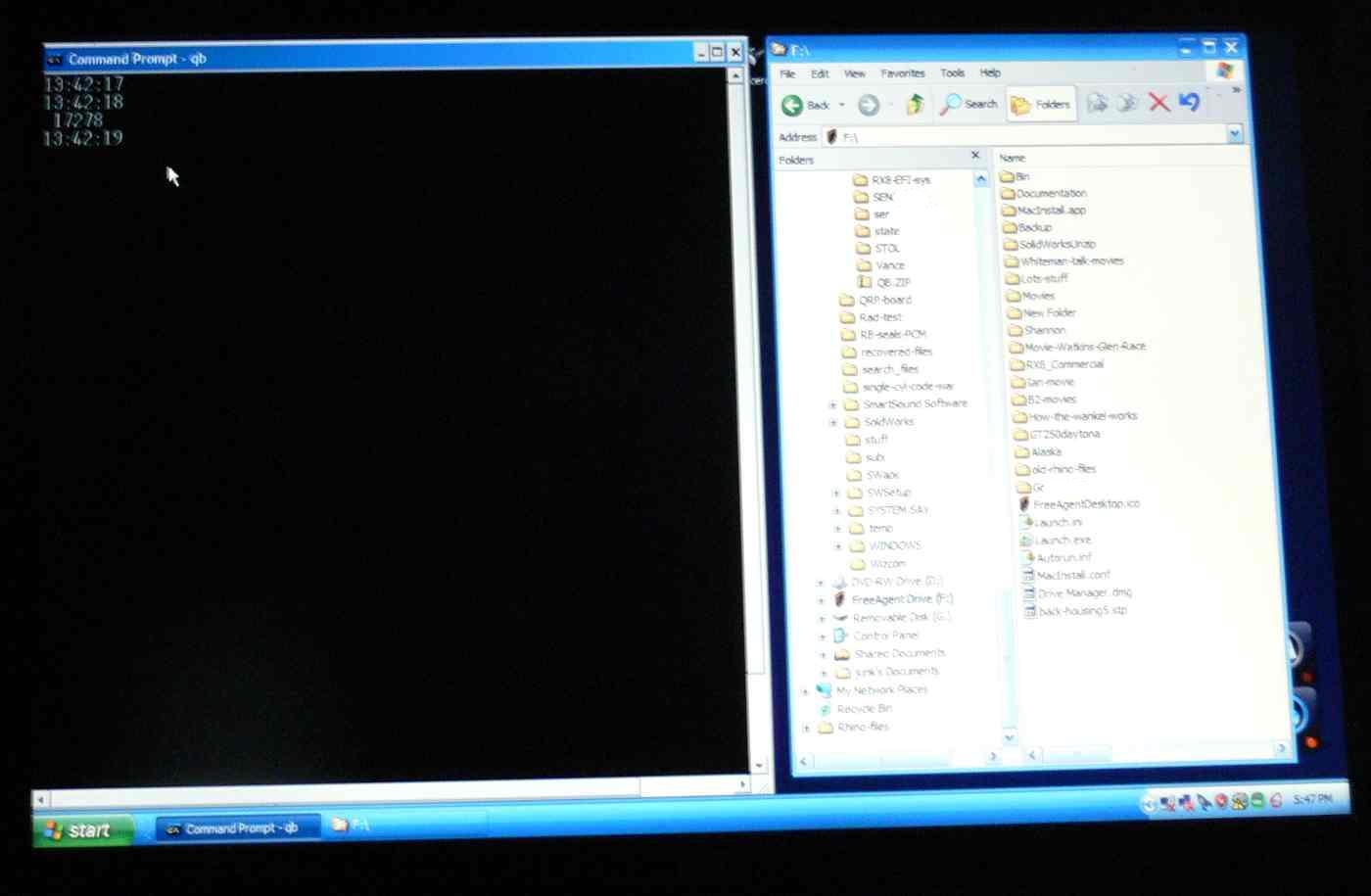

I set up a program that would test the speed of the DOS QB
program running under Windows XP and the same program running
under DOS on two similar computers. One DOS running under XP and
the other directly from modern hardware running good old DOS.

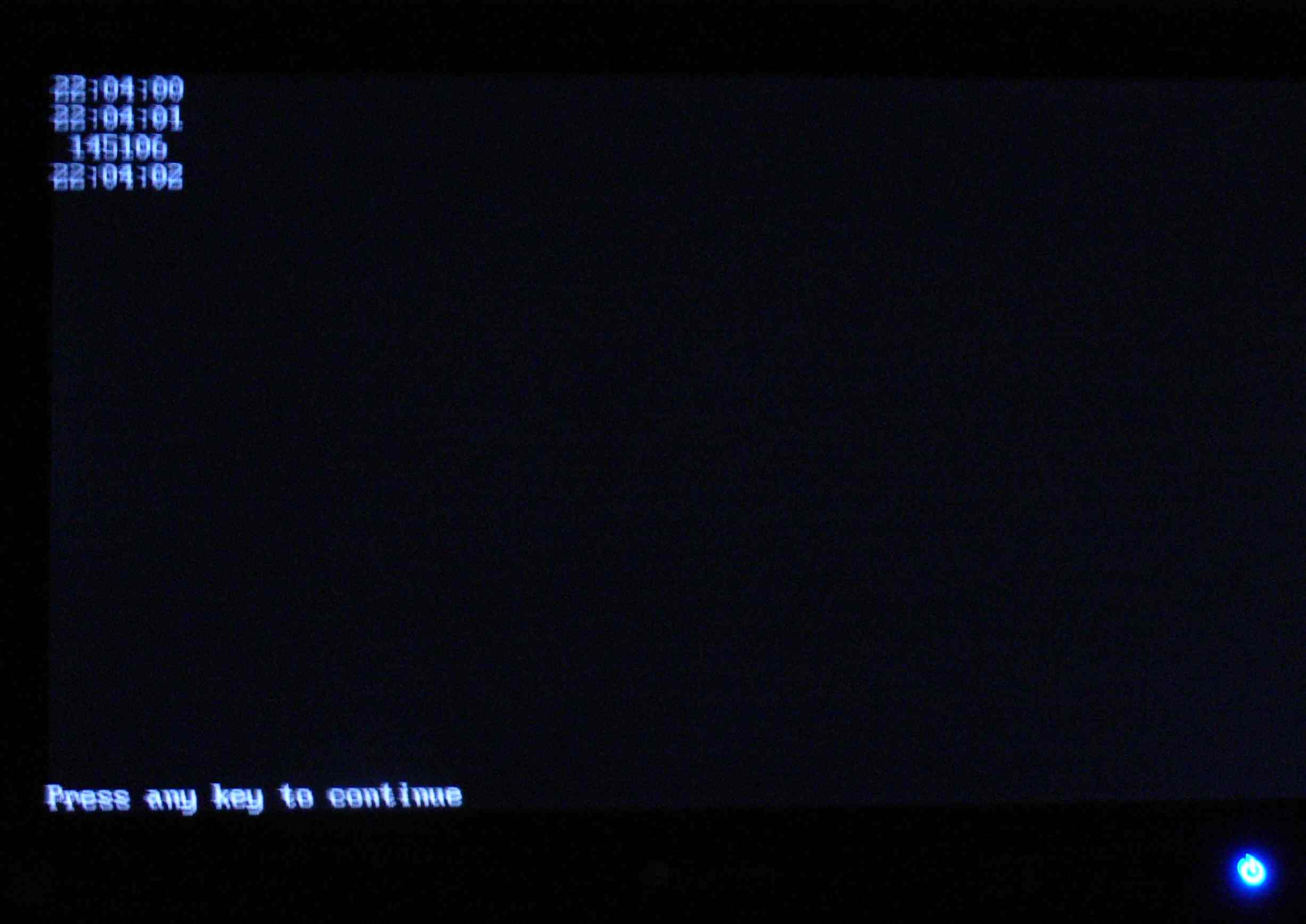

Frankly I was stunned. The XP version executed 17,278 steps in one
second and the native DOS version executed 145,106 steps in one second.

That is over 8 times faster!!!!!!!!!!

Worse than that the XP version was different every time I ran
the program. Some times it was half as fast. Totally unpredictable
and totally unacceptable for a real time program and hardware
controlling high speed hardware. Namely a rotary engine
electronic fuel injection.

I was very pleased to say the least. I'll go out on a limb and state
that DOS and QB have  a bright future for embedded real time
applications :)

Here is the program.

CLS  'clear the screen
PRINT TIME$   'print the real time clock on screen
oldtim$ = TIME$  'save  the real time  clock read
tryagain:  'loop address
IF TIME$ = oldtim$ THEN GOTO tryagain 'if time has not changed
PRINT TIME$  'time has changed  more  than one second
tim$ = TIME$  'save  the new time
FOR x = 1 TO 900000  'start counting
 IF TIME$ <> tim$ THEN GOTO exitit  'if time has not changed
 NEXT x  'go back and keep counting
 exitit:  ' one  second has gone by
PRINT x  'print  the count  on the screen
 PRINT TIME$  'print the new time  on the screen
END  'end or stop the program

The real time clock updates once a second.

Paul Lamar
