Just got around to the finishing touches. Here are some pics. Brad point

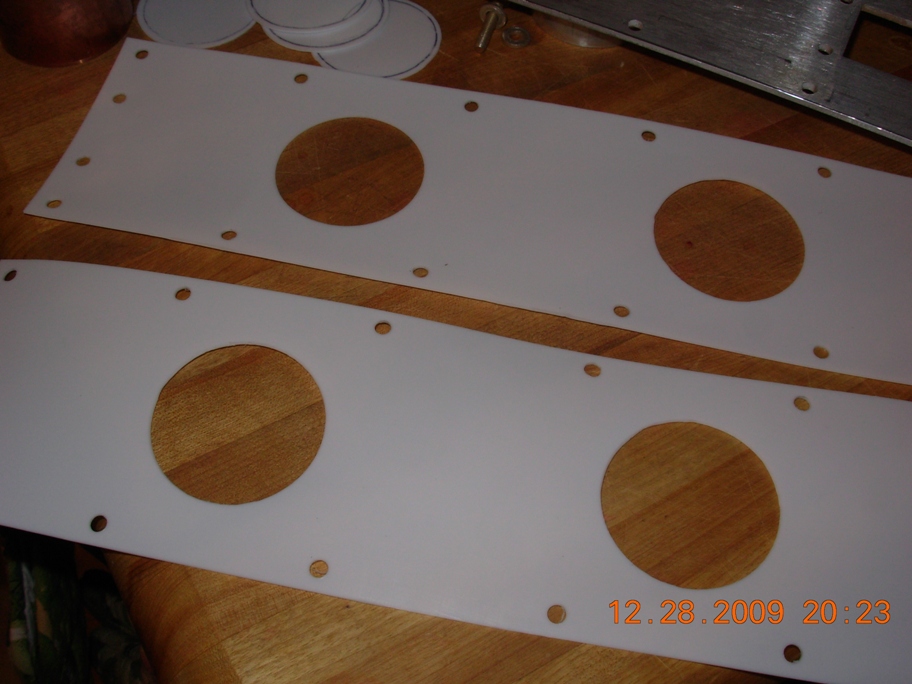

drill to prevent split from bolt hole, clamp between plates to support

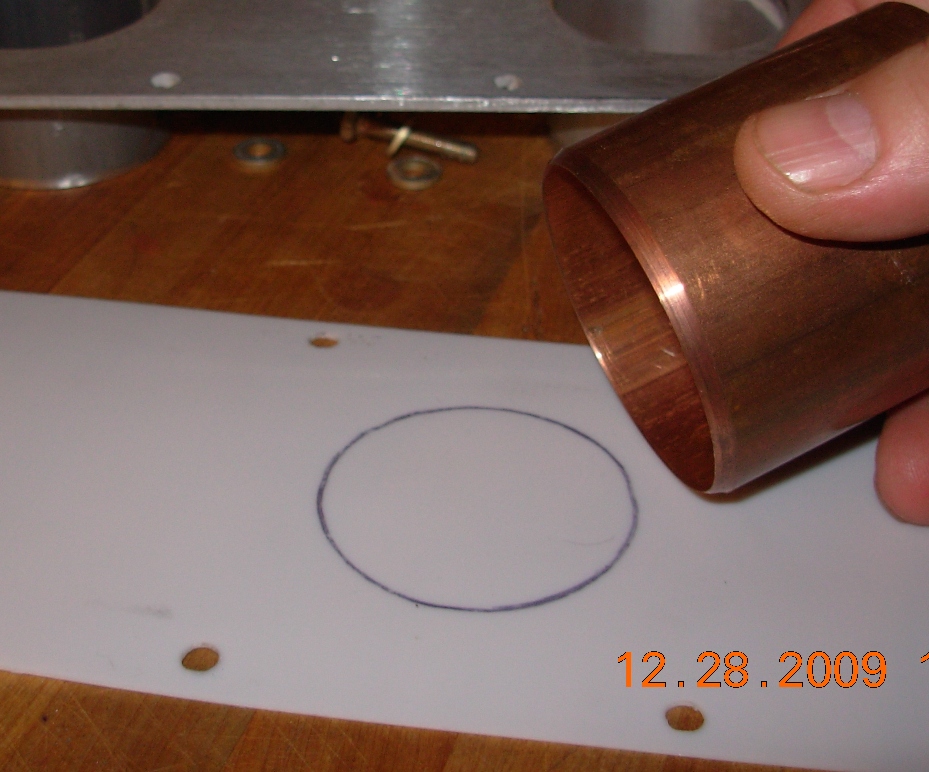

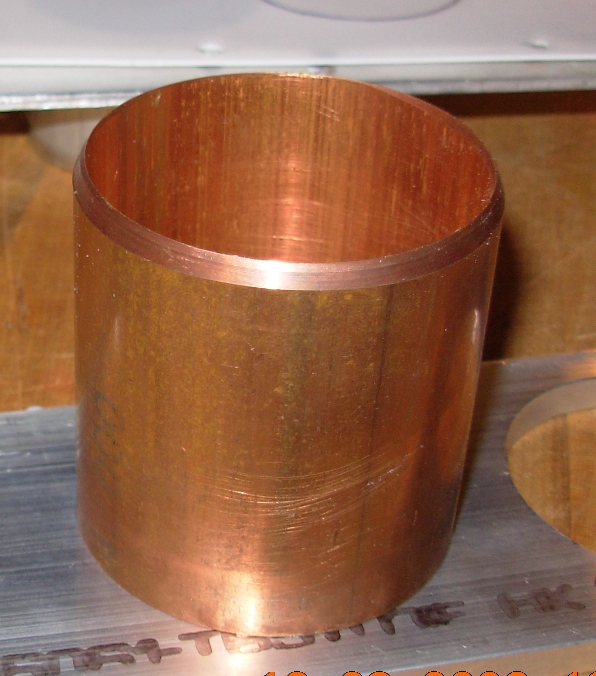

sheets. Improvised punch from 2" copper pipe, would work better pressed

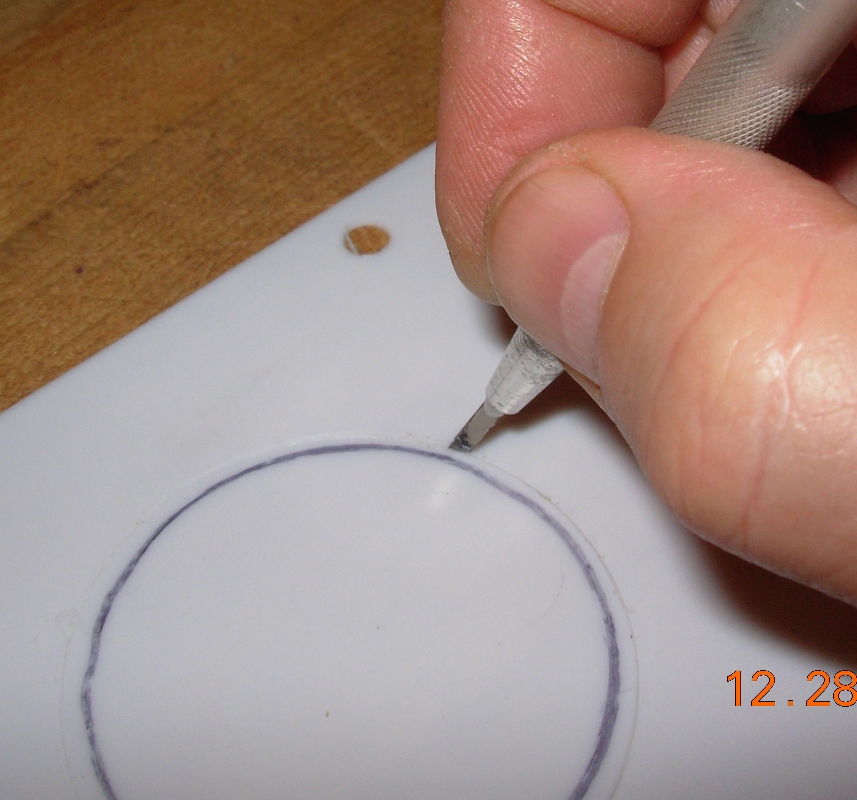

between 2 pieces of wood in a vise, but I finished the cuts with an x-acto

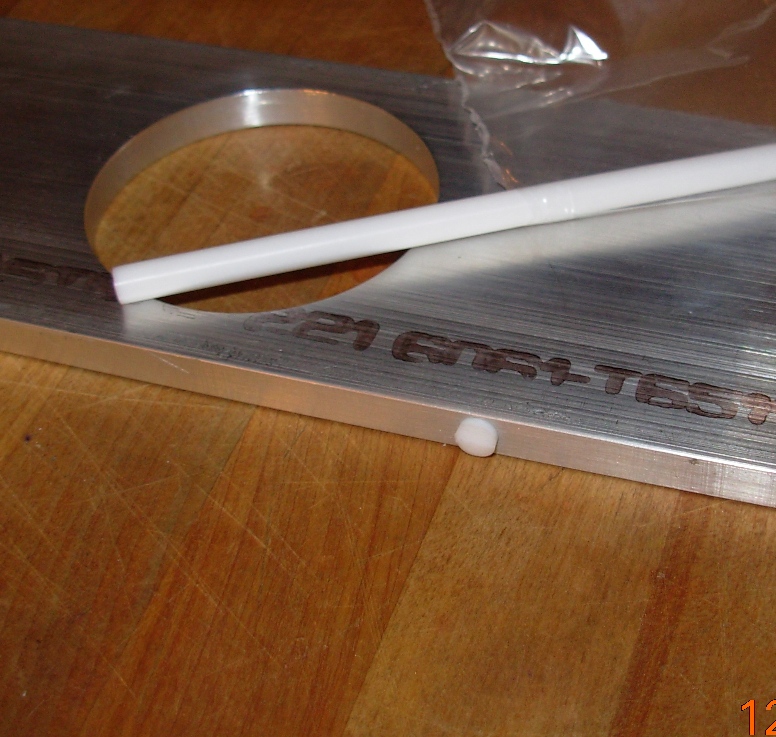

knife. 2" professional gasket punch is an arm and a leg. 6 Bearing buttons
on sides of slide keep alignment.

Tried to keep pic count low, cull as needed.

Craig Smith

Cool Craig. I'll use these in an how to. Thanks.

Paul Lamar
