Michael,
I woke up with another bright idea this morning.

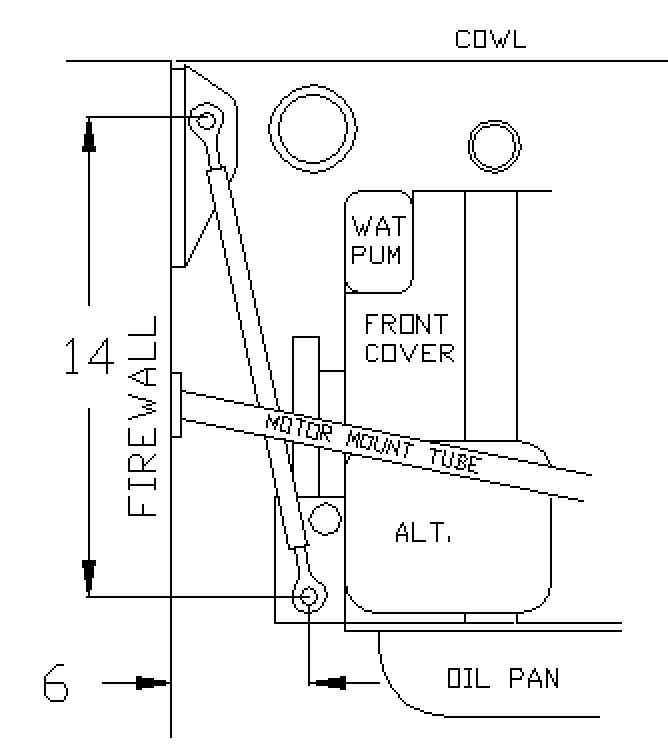

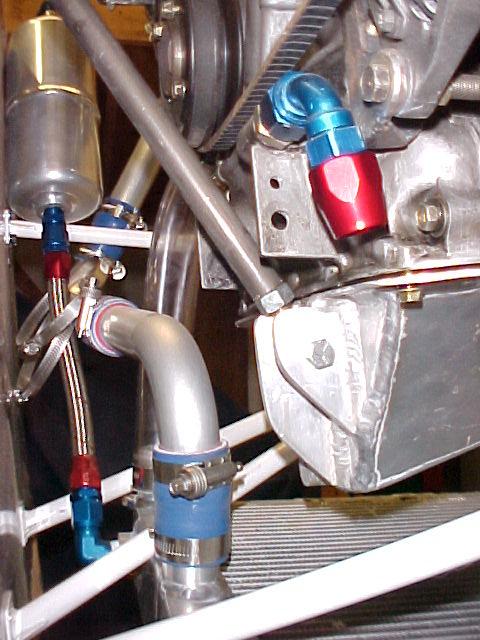

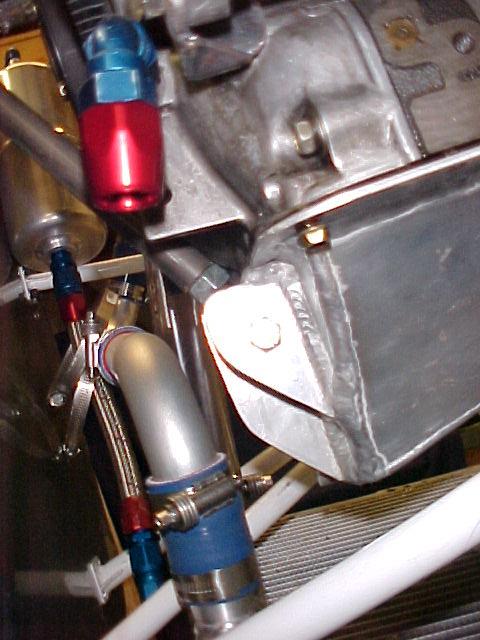

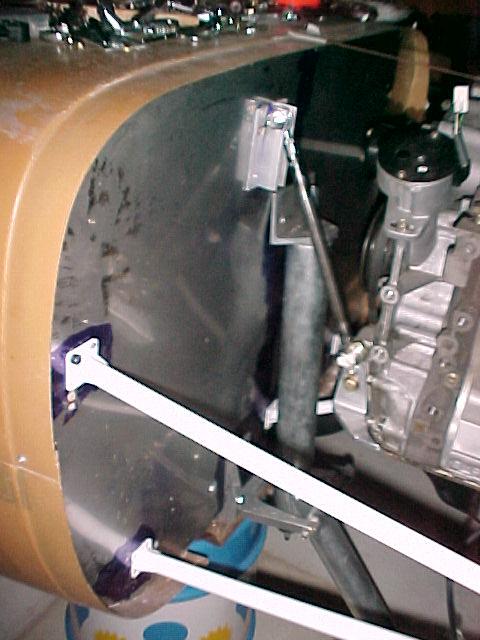

I combined the nose gear bracket and the rear motor
mount strut bracket in one part. The inertia load of
the engine on the nose gear during a hard landing  goes
directly into the nose gear and not through the firewall
first. Direct load path through one bracket. Reduces the stress
on the firewall.

http://tinyurl.com/45o5fv4
http://tinyurl.com/4rrpv7v


Paul Lamar
