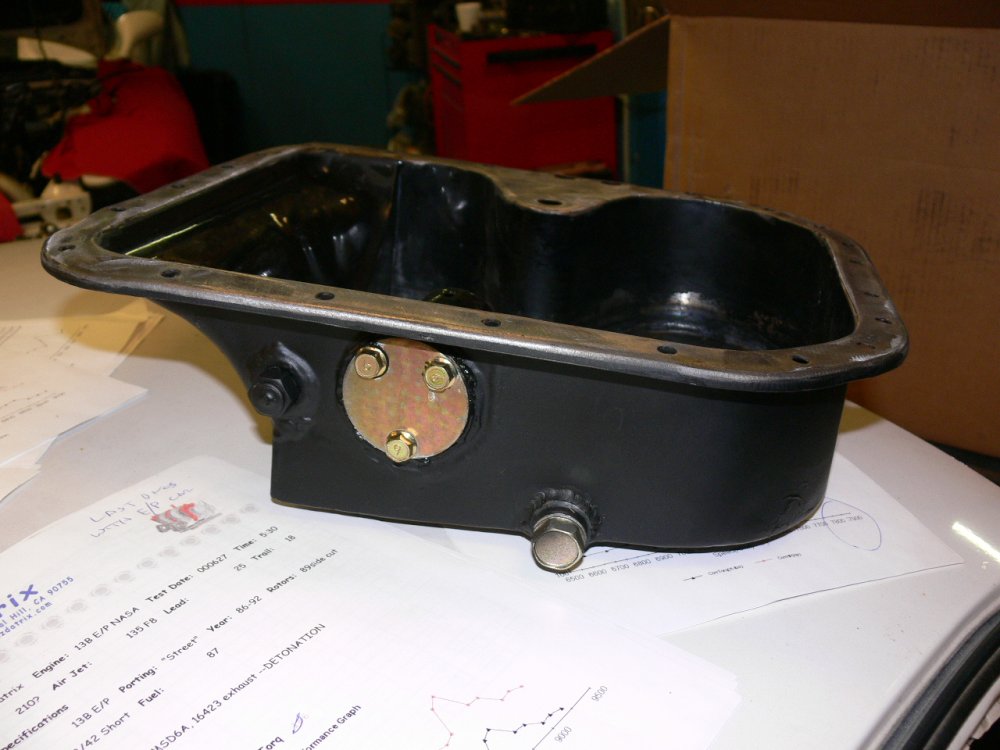

Industrial metals cut all the parts to size
  and Randy Lewis of one rotor Dragon Fly fame
  tig welded it up for me. Randy is a fast learner
  as he has limited experience tig welding.
  He practiced for only one day and then did
  this pan. It holds 8.5 quarts.
  The more oil the longer it takes to overheat it on
  take off :) My 230 HP O-470 has 12 quarts.

  It is not tapered due to improvements in ducting
  for the water rad under the engine. I used
  to bring the cold air in from the bottom of the
  rad. It is better to bring it in on the top
  and let it go out the bottom.

  I'll sell the old one if somebody wants a bargain.
  $100

  Paul Lamar


  Does your oil pan fit on the rx-8 13B??if so i am interested to buy and
  also the sketch for second one

  Jean Prudhomme

  Mine won't fit the RX8 Jean. They have a different bolt pattern.

  Hey Randy, Do you want to make another oil pan for Jean?


  I think I have a stock RX8 oil pan to get the bolt pattern
  from. If not you will need to ship me yours Jean.


  Paul Lamar


  Paul
  How much it will be for a rx-8 pan??


  Jean Prudhomme

  Roughly $400. 8 quarts.

  Paul Lamar

  Paul
  I do have a new 250 amps tig welder and if i can have your layout i
  will built my own and get part cutted by an a shop near by.
  I read all e-mail everyday and saved it as future referencse" 6763
  already saved" but there are all on my hotmail file and i try to find a
  way to tranfer all of them on outside hard disk could you tell me how.
  BRGDS

  Jean Prudhomme


  What kind of dwg software are you using?

  I can send dxf iges or stp.

  Paul Lamar


  You can send iges or others i do have rhino and Alibre
  Jean Prudhomme

  OK I'll send IGES shortly.

  Here it is.

  Paul Lamar

Thank's Paul
Do you have the drawing for the taper one also.
On this design you didn't provide any reset for the suction do you think
it can be a problem if you have a major oil leak in flight and the pump
can suck some air when oil level is to low


Jean Prudhomme

Reset for the suction. I have not heard of that. Can you explain it
better?

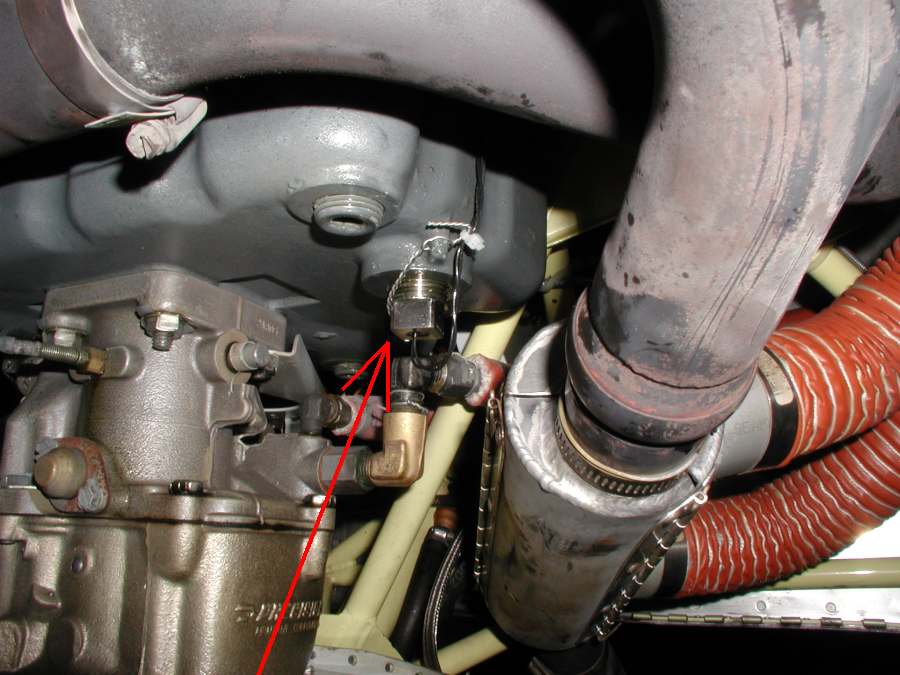

Do you mean a Low oil warning light? If so the stock Mazda unit

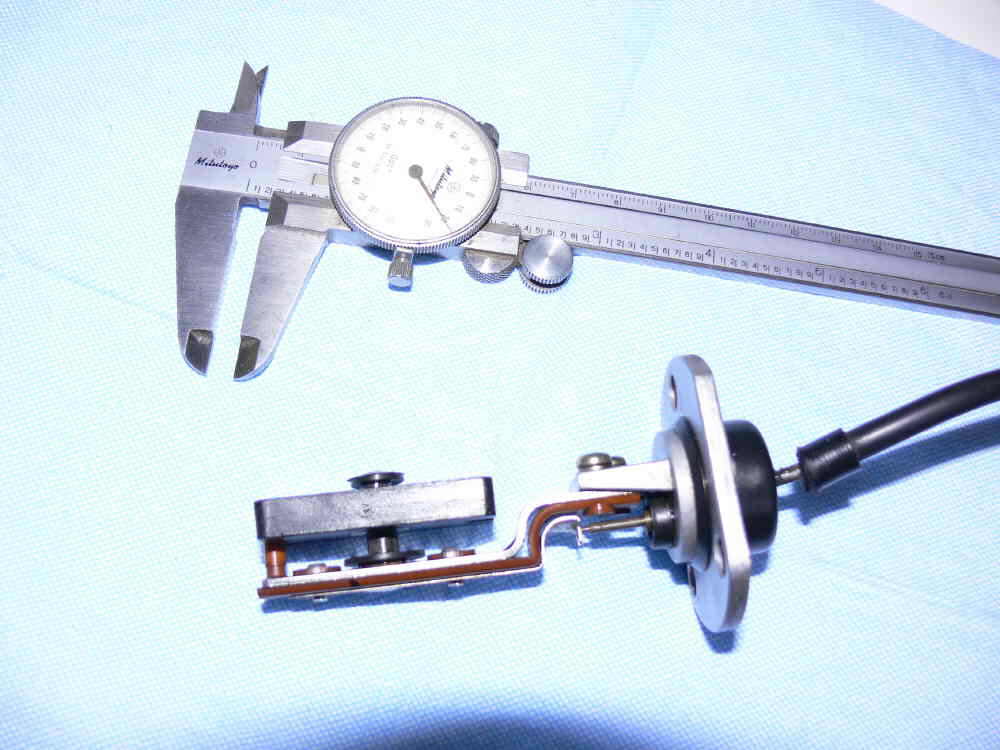

will fit. Just a float with a reed switch and magnet.

No dwg on that tapered pan. It was built 10 years ago BR (Before
Rhino) :)

Paul Lamar
