Brian, Dave, help!

I can't seem to get this adjusted. If I leave the nuts slightly loose
there is zero friction in the aileron action.
If I tighten either the front or rear ball joint
nuts noticeable  friction is added to the control.

If this is described in the plans what page number?

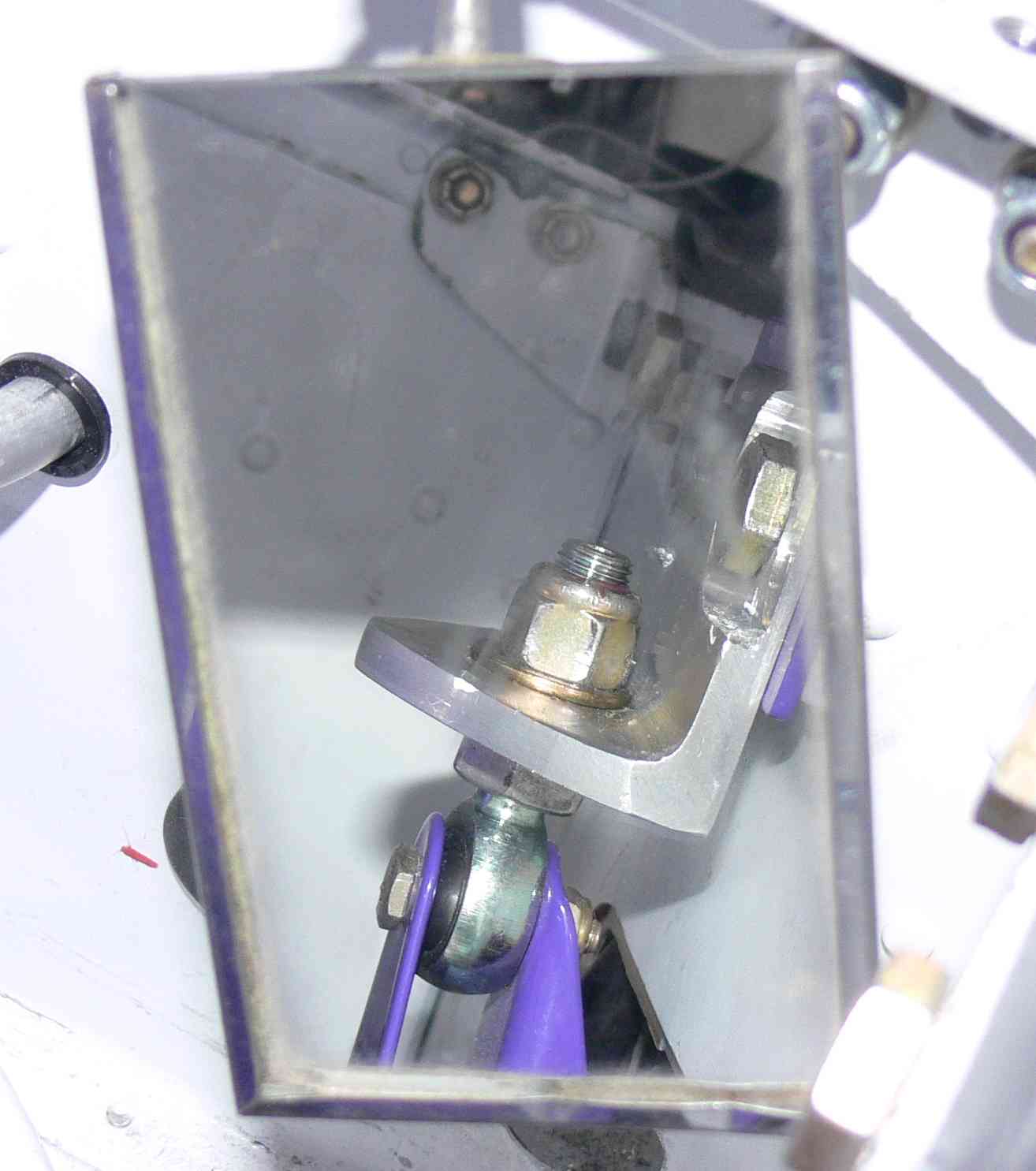

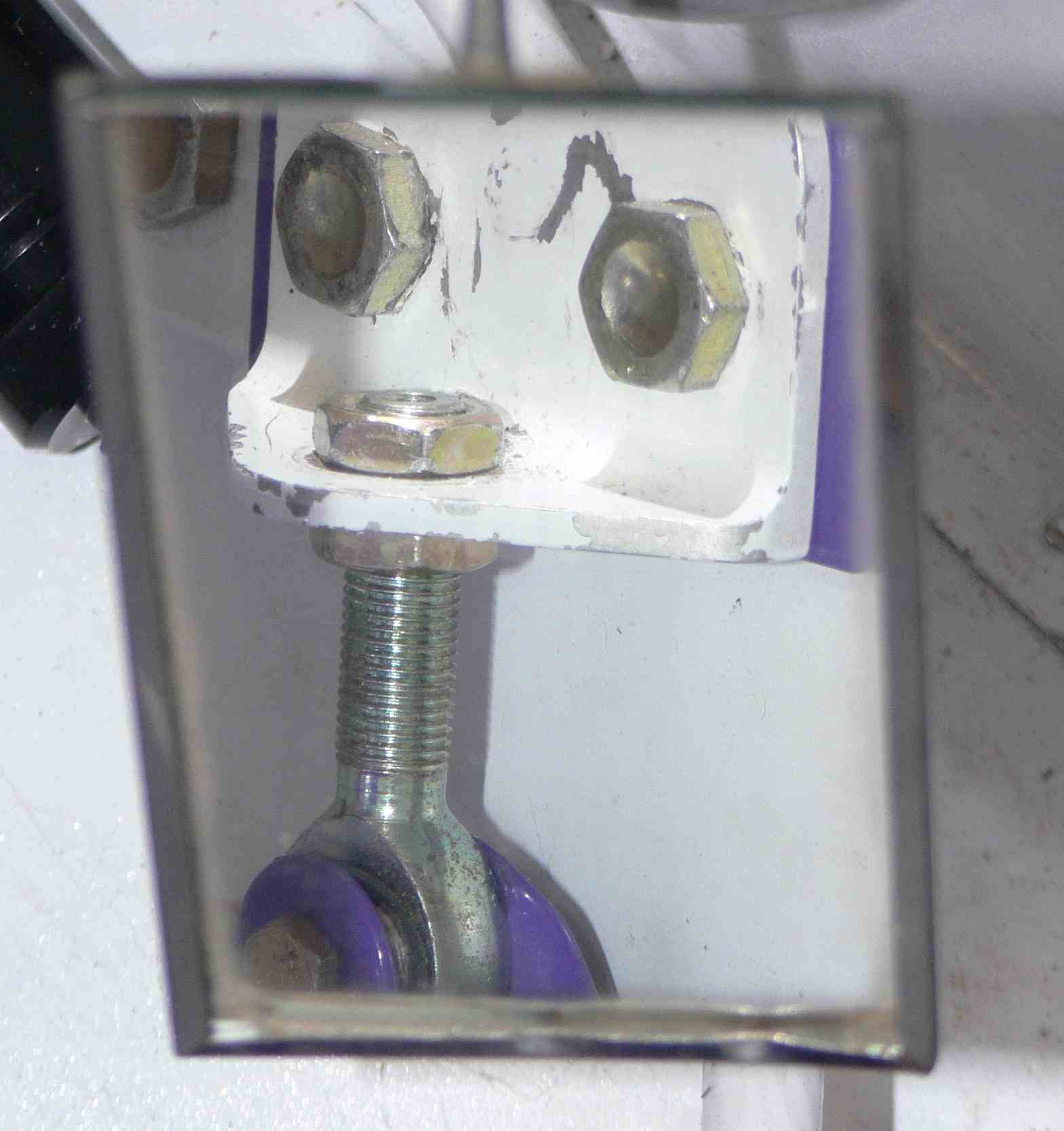

BTW I changed Mike's bracket as I did not feel safe
with just a non locking jam nut on there with no
threads showing.

Paul Lamar



Well, i can't quite understand the situation from the pictures, but I
can say this, there should be no friction in the system from any of
those brackets, and the nuts should be secure.  Maybe missing a washer
or two?  It should be in the plans, though very occasionally you must do
things different than called out in the plans.

--
David Leonard

Turbo Rotary RV-6 N4VY
http://N4VY.RotaryRoster.net
http://RotaryRoster.net

Have not seen drawings or pics, but where two bearings are used on a
single bolt, check that a spacer goes between them.

Lewis.

Here is the dwg.

Paul Lamar

Paul,
I don't quite understand- where do you have friction- when you move the
stick laterally?
Brian Trubee

I am not sure where it was but I got it fixed today. Apparently the angle
of the bracket had something do do with it. I bent it down so the angle
was about 95 degrees and everything started working OK. Go figure.

Paul Lamar
