Tom/norpro


   Good price Tom.

   If you drove this with a 1 to 1 cog belt drive a very simple outboard motor
   type CD ignition could be easily added by swapping out a couple of coils
   180 degrees apart for 300 volt units.

   Save one for me Tom.

   Paul Lamar


   I'll take one too, where do I send the money?
   Craig Smith


I would like to have one too.Just tell me how and where to send the money.

Michael Hart

Here is Tom's email address.

http://www.4norpro.com/generators.html

tomm@4norpro.com<mailto:tomm@4norpro.com>

Looks like these are used or one or more of the coils may have failed.

-----------------------------------------------------------------------

Here is a new Kubota for $106
Same type of magnet type of alternator. No field winding.

14 amps 3.12 pounds.

http://www.discountstarterandalternator.com/p-655-new-alternator-kubota-tractor-15531-64013-15531-64016.aspx


http://tinyurl.com/3fx7qxb

Two of these with modified for CD ignition one for top plug and one for bottom
plug would give dual independent ignitions and alternators.
One or two cog belts.

There is no regulator inside the unit
so an external regulator will be required as they are designed for low RPM
engines. ALTERNATOR REGULATOR 1K531 - 64602

http://groups.yahoo.com/group/AirVW/message/14115

"I'm getting 14.5 volts from 1200 engine rpm with a stock VW pulley, about 6"
diameter, all the way through 3300rpm." No load is mentioned.

Gil

I am not sure they will run to 7500 RPM so test them in a safe way because they
could blow up. A wrap of carbon or Kevlar uni would be a good idea.

http://www.iowamotorparts.com/kubota_alternators.htm

Lots of options here.

Paul Lamar


Here is Tom's email address.

http://www.4norpro.com/generators.html

tomm@4norpro.com<mailto:tomm@4norpro.com>

Looks like these are used or one or more of the coils may have failed.


Paul Lamar

Where do we find out about the details? I don't see this listed on the website.
If they are broken or are not fully operational, that should be info up front.
C. Smith

Paul:

   Where would you like it sent and how? I would suggest the USPO $5 box if you
are not in a hurry. My address is norpro
                       Att. Tom
                       385 town st
                       East Haddam ct 06423 or I can be reached
at860-873-0100-ext.0 and ask for Tom. We do take credit cards but not amx.

Tom/norpro


Tom, are these new or used? Are they guaranteed to work?

Paul Lamar

All:

  They are units that have come back for Isuzu warranty consideration. All were
on new engines and if the battery is hooked up backwards on installation the
regulator will pop. These have the add on regulator that are screwed on the
back. They have been tested and match the same ohm readings thru the coils as
well as to ground. They test the same as a brand new one. I will warrantee them
for 90 days. The external regulator that works on the Kubota, Yanmar and Isuzu
will work on this. I am sure Paul can come up with a $10 regulator that will
work with it. We also have new take off's that were removed to convert the
engine to 24v for $150 that will include the regulator and a mating plug plus a
wiring diagram. Without a regulator it weights 4lb and with 4 3/4lb.  I have
sold a bunch to the Corvair crowd. If you have any other questions I would be
glad to answer them. If Paul would like I will send him one for inspection and test.

Tom/norpro

All:
   Craig smith implied that I was trying to hide something, I take no offence
to it. I would like to set the record straight. I thought I was replying to the
Honda post for used parts. I thought by offering the group something  that I
believe is better and currently available on the market rather than a used 70's
set of coils for a Honda or the outrageous price of Harley parts.

  I see I screwed up when I offered Paul a unit to test, I need to send him a
complete one to compare readings. So the offer is for 2 units. The manufacture
is Kokusan Denki part# GP9905 and Isuzu part# 8970489701. If there is any other
info anyone would like I would be glad to provide it.

Tom/norpro




Thanks for the offer Tom.

I'll send you my shipping address by PRIVATE email.
I'll set it up on the bench and test it for out put
current.

Paul Lamar

To set the record straight, I was not trying to imply anything of that nature at
all. I was responding to the comment made by Paul

 "Looks like these are used or one or more of the coils may have failed.


Paul Lamar"

No offence intended. I didn't see anything about these coils, so I wanted
clarification about condition.
C. Smith

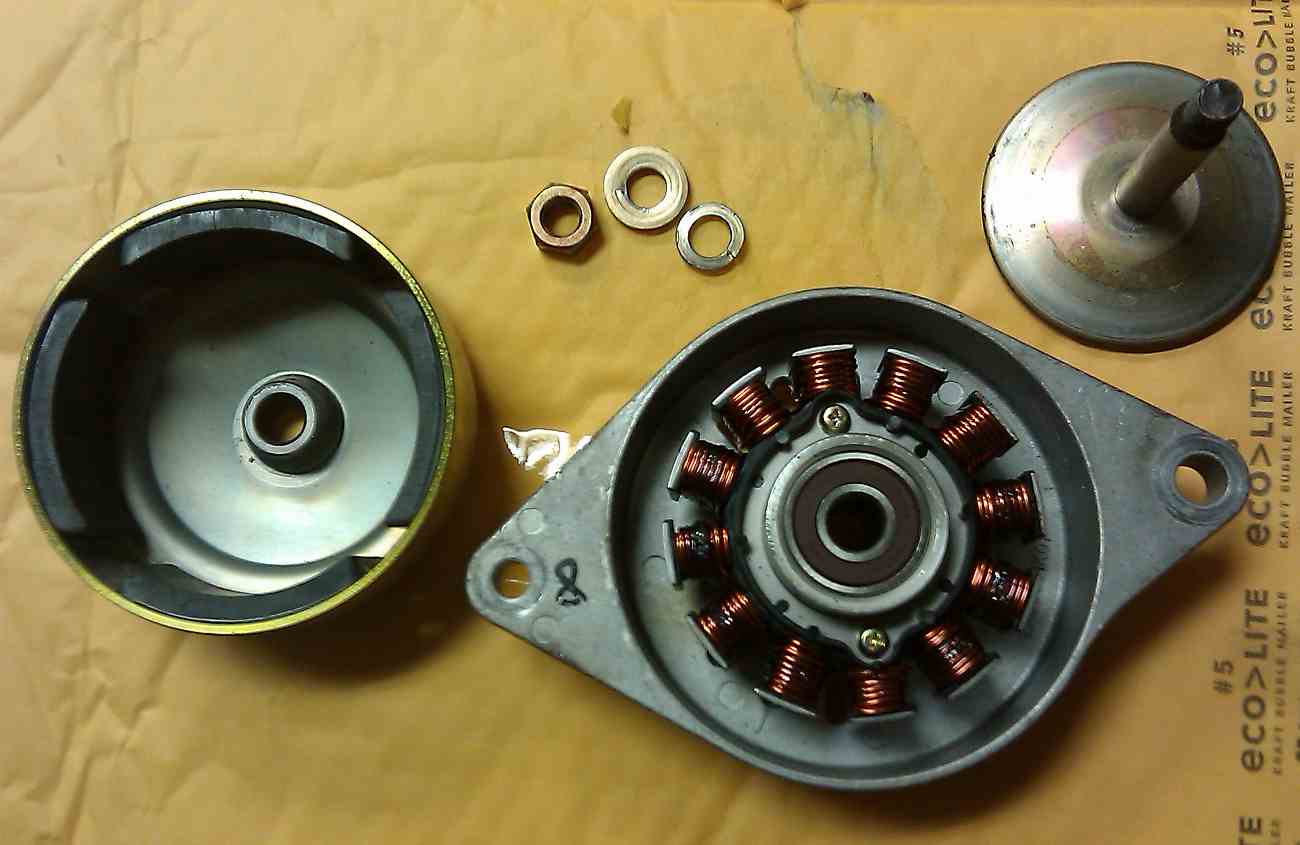

Tom sent me a couple to test.
I set one up in the CCM and it put out 9 volts AC at about 5800 RPM.
15 volts AC at 9840 RPM. This unit is best used with a belt drive.

You will need some diodes to convert the AC to DC.

It could be used direct drive as part of the flywheel if you re-wound
the coils with slightly smaller wire. Voltage would go up at 5800 RPM
but there would be a slight loss in current output.

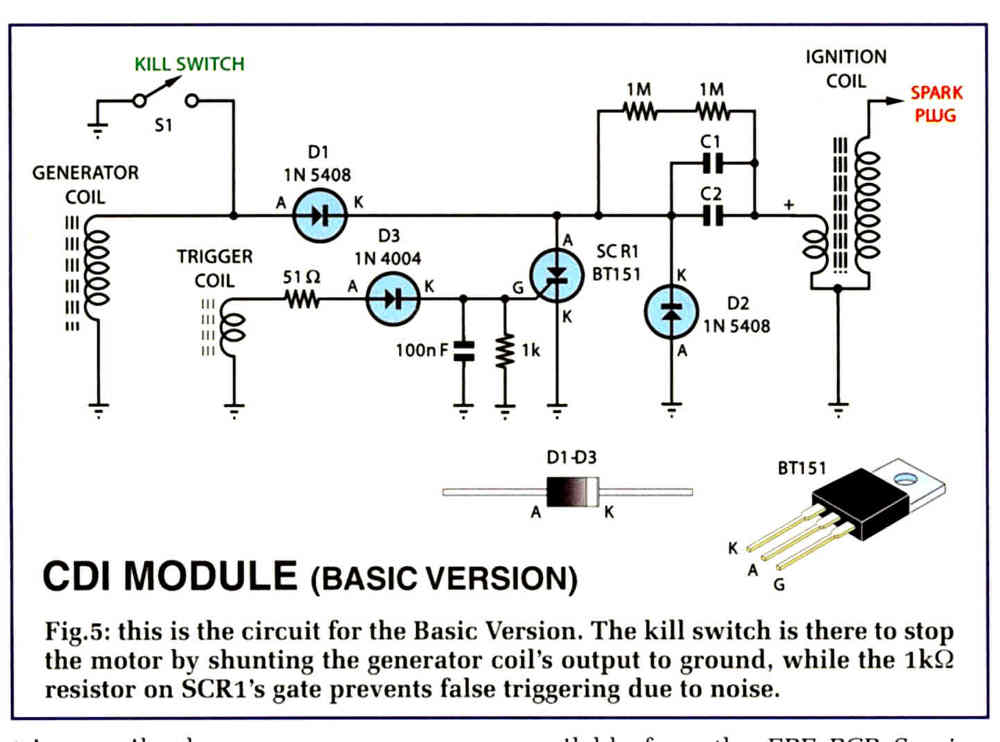

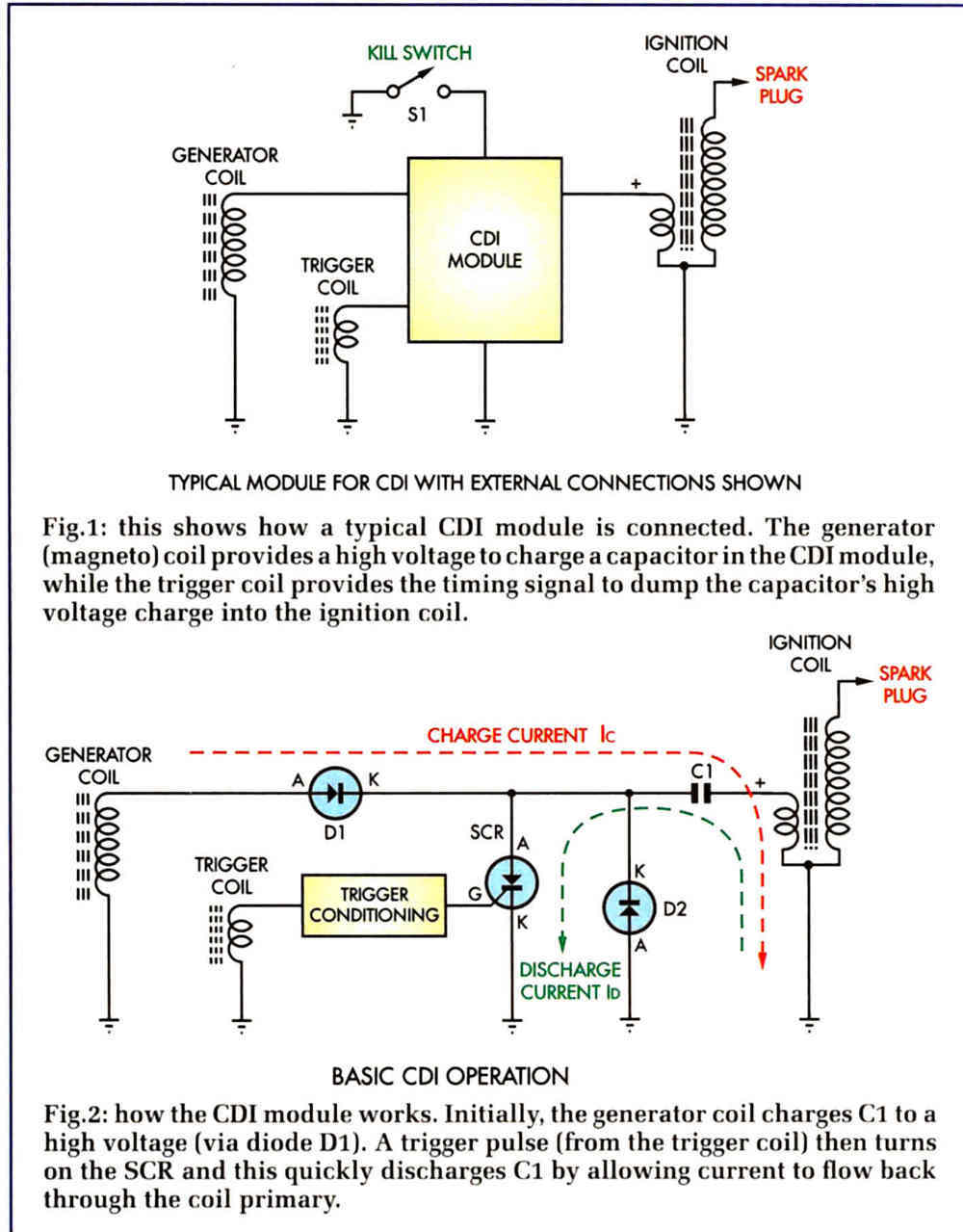

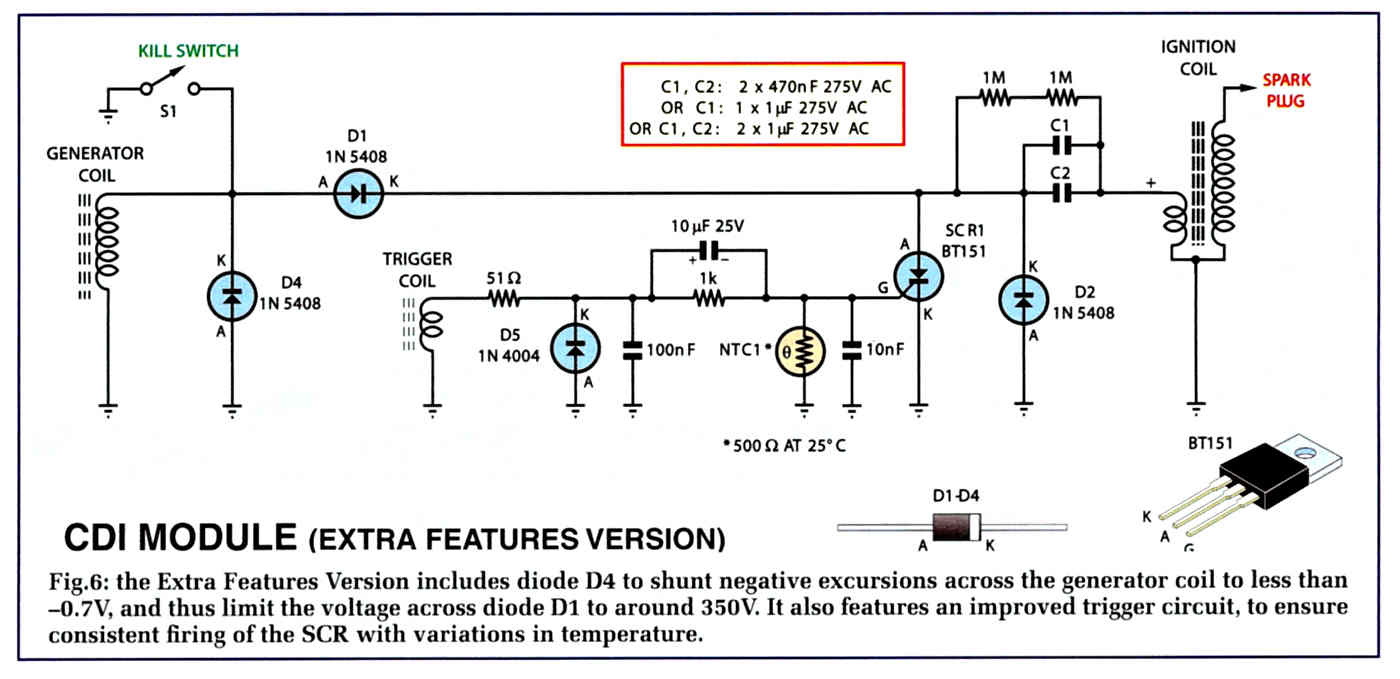

As a source of 300 volts for a CD ignition system perhaps one or more
custom wound coils mounted on the outside of the magnet drum would work. The magnets are very powerful indeed. When you turn it by hand you can feel the magnetic attraction for the metal coil cores.

Tom also sent me one with attached diodes and voltage regulator which
I have not yet tested.

The unit weighs about 4 pounds which is half the weight of the
stock Mazda RX7 alternator however the current output is half too.


Paul Lamar
