Thanks to Murry for finding this.

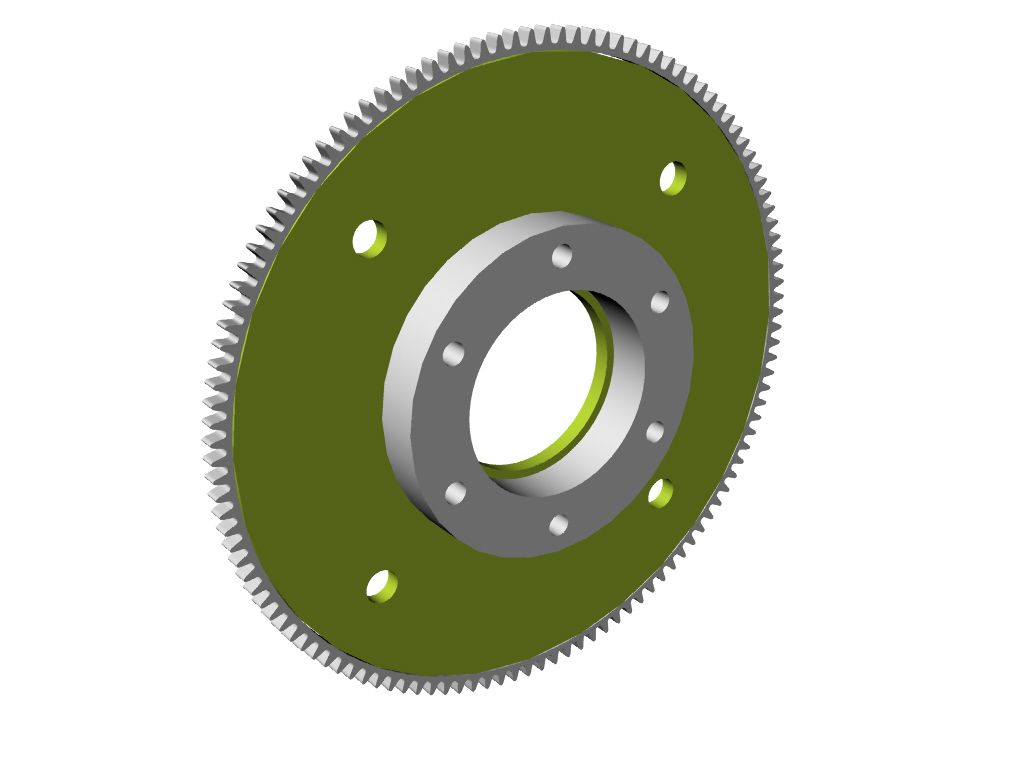

  It looks like we can just use the Ford splined part to mount the SGF
  damper and an .090" thick 4130 plate to hold the ring gear. This is
  easy to make with nothing more than a lathe and easy try.

  Paul Lamar


  Looks like the driveshaft coupling I mentioned once. How well will it
  dissipate the heat?

  Dale Davies

  Good question. On second thought we are in this for the long haul.
  It might be a mistake to depend on just one part like the SGF that
might
  disappear.

  Probably better to build our own. Another advantage to that is we
  can tailor the durometer of the rubber bushings to our needs.

  Paul Lamar

  Hi, they are used in high volume production cars: Mercedes, Corvettes,
  BMWs, etc. also sold for marine use.


  Murry I Rozansky

  There are many sizes. I don't think they all use the 300 ft pound
version.

  Paul Lamar


 For everybody that would like to try an off the shelf rubber damper
 here is a reliable source. Been around for years and will be around
 for the foreseeable future as this part is widely used on certain classes
of
 road racing cars. The torque rating is 220 foot pounds about right for a
turbo
 or P-port. The mounting bolts are 7/16th and the bolt circle is 3.78
inches.
 The thickness is about 2 inches so it should fit in the cone of the stock
 flex plate both 13B and RX8. You will need to machine your own adapter.

 The company is called Pegasus Auto Racing Supplies. Been in biz 31 years.
 1 800 688 6946

 www.pegasusautoracing.com

 I want to warn you that this damper is likely to be limited to 5000 RPM by
 the manufacturer so if you push it beyond that you may explode it.

 Hopefully Murry can come up with a source for the SGF which is rated for
 higher RPM.

 Paul Lamar

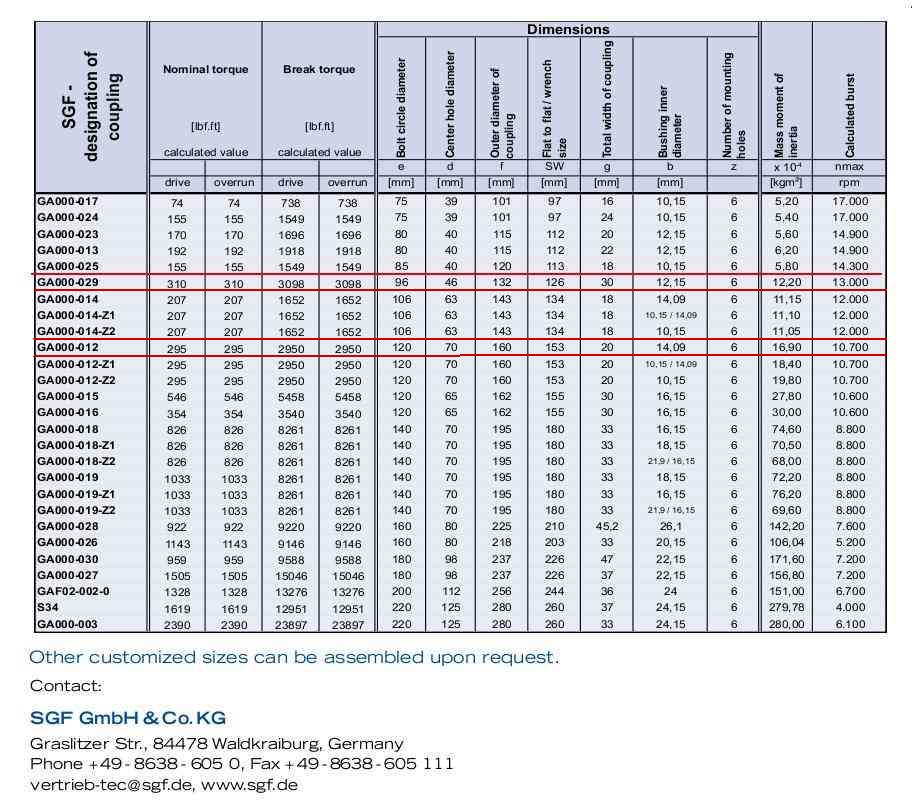

 -Hi all,  this is what I have found so far.  The -029 is the better
choice, nominal rating is 310#' torque, will fail at about 10X that, weighs
less than 1.2# calculated burst speed is 13,000 rpm.  I am checking into
getting a bolt set with the coupling.  The Porsche aicraft engine was fan
cooled and had some cooling air piped to the bell housing to cool the
coupling.  Cooling is a good idea for any type of elastomer coupling.

Murry

===================================================================
Thank you for your interest in SGF's couplings.


Inverom is exclusive distributor of SGF couplings in North America and I
will be more than happy to help you with your request.

Unfortunately we don't have the couplings mentioned below in stock in
United States but it usually takes up to 1 week to ship it directly from
SGF Germany.


The prices are following:


GA000-029 $62.72/each + shipping costs
GA000-012 $53.75/each + shipping costs


If you would like to order these couplings please email me you purchase
order with all the contact information along with UPS account number to use
for the shipment if available.


If you have any questions feel free to contact me.


Best regards,

Michaela Taryova
Inverom Corporation
1110 Jorie Blvd., Suite 202
Oakbrook, IL 60523
Phone #:  (630) 572-0202
Fax #: (630) 230-1665
Cell #: (630) 946-4269

www.inverom.com

=========================================================

Good work Murry. The -012 looks a bit easier to make an adapter for.
Looks like a real bargain. I'll draw something up. Will fit the

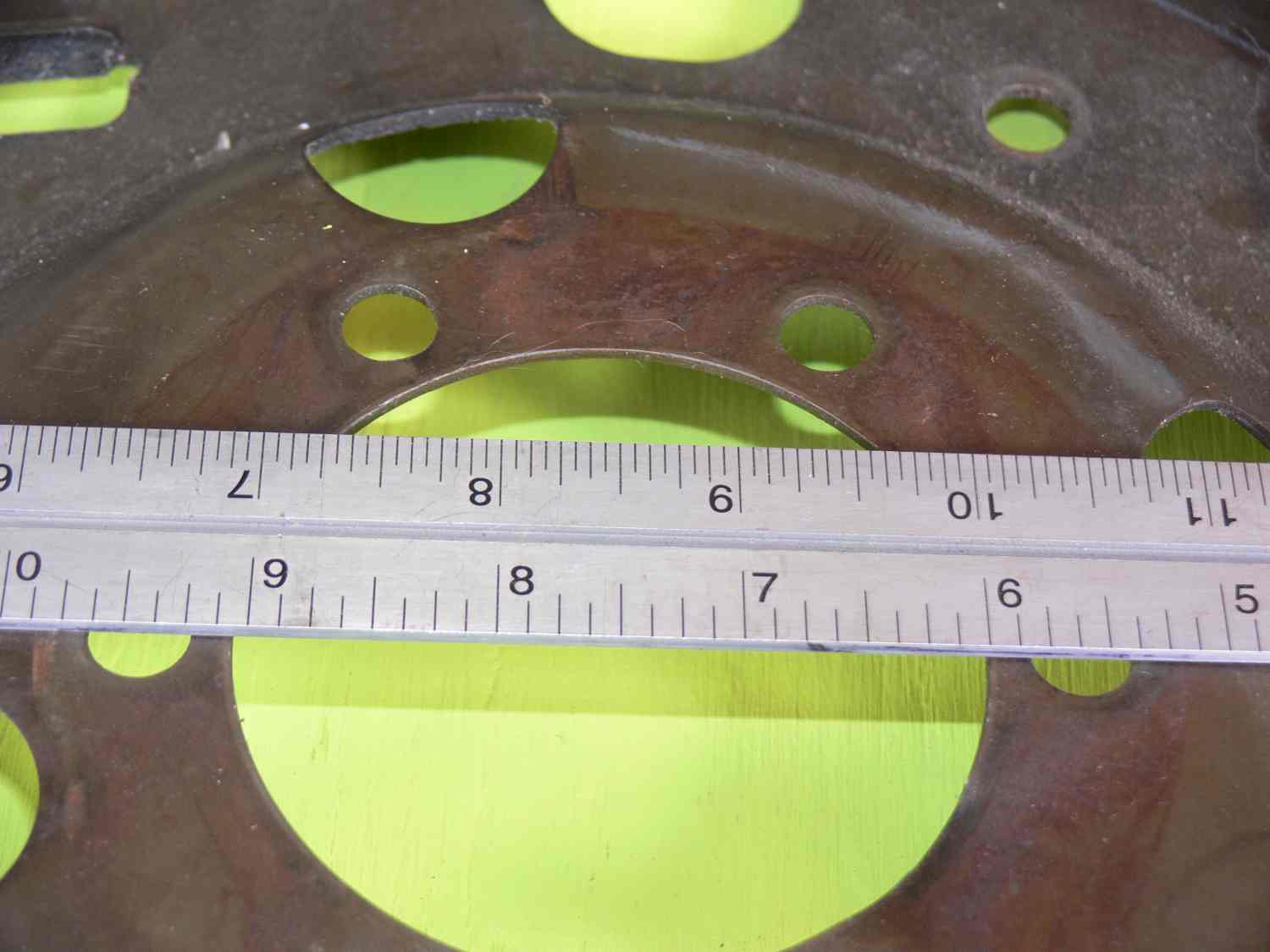

13B and the RX8 flex plate. The coupling will remove the drive stress
from the plate so stock plates should be fine.

Paul Lamar
