I am about to begin drilling P ports. Based on the dimensions given on your
 main site, it appears the ports have an angle of approx. 5.5*, sloping down
 into the housing. Is that how it is being done? It appears from some of the
 photos, that the holes are perpendicular to the vertical machined surface
 of that side of the housing.

 Most of the photos of aftermarket p ports show them at a considerably
 steeper angle, and that after having had the ports threaded into the
 housing.

 Is there any reason I should not use the 5.5 degree shown on the drawing?

 Ed Carver

 We are not bothering with that. We are getting plenty of power going
 straight
 in. So far 250 HP is destroying stock flex plates left and right :)

 IMHO straight in is best  as the air must turn up as the rotor moves away
 from the port.
 IMHO angeling it down is not the way to go.

 However the racers have to get the last HP so it may or may not work for
 them.

 Dave Leonard bought this really expensive and heavy flywheel to run Reno
 and then spent more bucks to have it machined to fit Tracy's damper.
 As I recall it was seven pounds without Tracy's damper. We don't need
 the clutch surface area.

 Went 229 MPH in qualifying so he must have had at least 250 HP.

 Paul Lamar

 Paul,

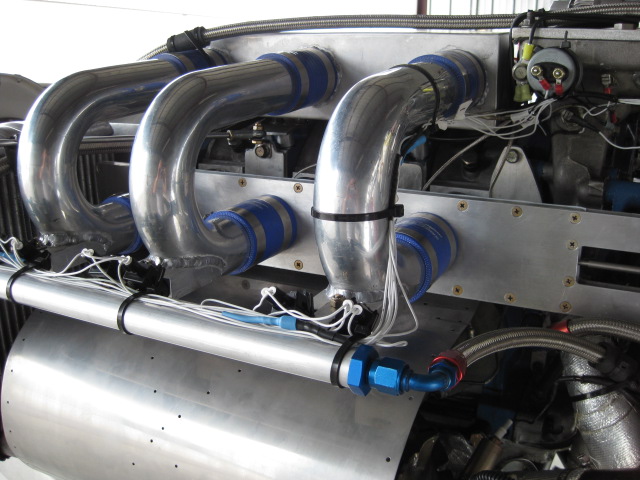

I bored my p-ports straight in.  That eased the design & fabrication of the
intake, helping to keep things neat and compact.

Mark S.
