Subject: HyTek Data acq set up
From: rotaryeng
Date: 1/19/2012, 4:02 PM
To: AAAA Put this in the To box


Mark

As I recall I recommend it with Linux for email :) Of course it is
now about 5 years old and you know how fast computers become obsolete :)
Tablets are taking over this segment of the market using a form of
Linux called Android. If it is any consolation full blown Linux does
not work on it worth a damn either. The original Asus Eeee OS, a sub
set of Linux, worked OK.

Good work. Your on your way. I am glad to see Bobby involved as we
should see data from both a 2 rotor supercharged (RV10) and a 3
rotor P-port.

Paul Lamar

Paul,

I thought we bought them to use in flight, above 10k, hence the SSD.

What voltage range should I be seeing from the pressure sensors.  The
iDAQTest&Log 3.1 shows 1.717v for atmospheric, and .0077v at 25" Hg.
  Does this sound about right?  How do I convert this to MAP?

Mark

Yes it is good for that.

What is the pressure sensor part number you have?

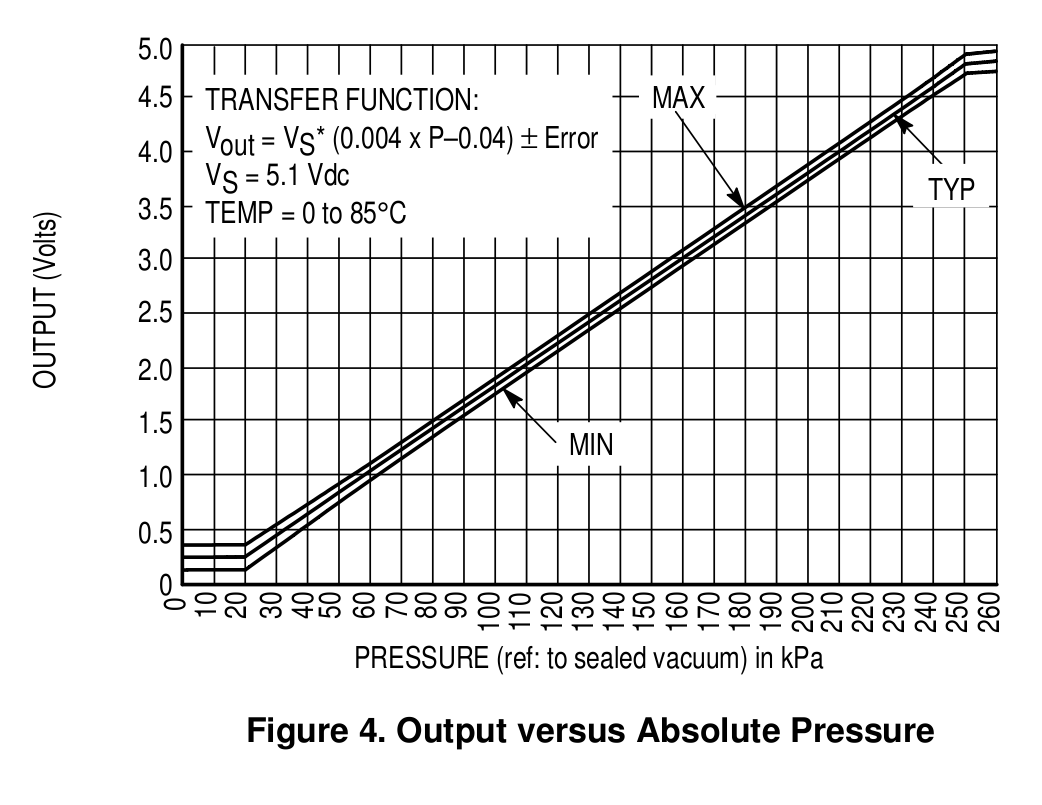

Here is a graph for a 4250.

Tracy is know using the 2 atmosphere 4250 above version I think.

Paul Lamar
--
