--- On Sun, 8/26/12, rotaryeng <rotaryeng@earthlink.net> wrote:


From: rotaryeng <rotaryeng@earthlink.net>
Subject: rotary newsletter
To: "AAAA Put this in the To box" <rotaryeng@earthlink.net>
Date: Sunday, August 26, 2012, 2:56 AM




I am an retired aircraft mechanic and inspector who rebuilds rotaries.  My latest
interests are water cooling mods to the housings around the spark plugs..... and
doing in-chamber testing to determine best ignition point and burn-rate improvements
with TFX equipment.

See attachment.

http://s287.photobucket.com/albums/ll129/bbordes/?action=view¤t=preignitionpressurecurve.jpg

Thanks,
Barry Bordes


Where do you live Barry? From time to time people need over hauls.
Not from wearing them out in aircraft. Mostly engines out of cars being prepped for
use in aircraft. Our HP requirements rarely exceed 250 so far we have not needed the
cooling enhancements in the water jacket. Some people are running CHTs and the temp
is not getting over 350 F or so.

Paul Lamar
--

Paul,
I Iive in Slidell, Louisiana, across the lake from New Orleans.

Looks like you are way ahead of the curve on the cooling of the rotor housings.
Here are some pictures of of the leading spark plug problem area.

This one shows reduced flow from the plug spacing change on 3rd gen housings.
http://s287.photobucket.com/albums/ll129/bbordes/?action=view&current=mazda2005.jpg


This shows porting around the plug for enhanced flow.
http://s287.photobucket.com/albums/ll129/bbordes/?action=view&current=IMG_8998_1.jpg


And other mods.
Porting aid made from bad rotor.
http://s287.photobucket.com/albums/ll129/bbordes/?action=view&current=porting1.jpg

Perfect cut for trimming side seals.
http://s287.photobucket.com/albums/ll129/bbordes/action=view&current=rx7sidesealgrinding-1.jpg

Gapless side seals.
http://s287.photobucket.com/albums/ll129/bbordes/?action=view&current=zeroclearancesideed-2.jpg

Floating NA housing on plug bosses by Carlos Lopez
http://s287.photobucket.com/albums/ll129/bbordes/?action=view&current=cuthousing-1.gif

Oil pick-up type mod from Lynn Hanover.
http://s287.photobucket.com/albums/ll129/bbordes/?action=view&current=oilpumppick-upbellmouth.jpg

Oil pump mods.(the 515 loctite and gasket requires resurfacing the pump housing to
maintain factory side clearances)
http://s287.photobucket.com/albums/ll129/bbordes/?action=view&current=125-2505_IMG.jpg
http://s287.photobucket.com/albums/ll129/bbordes/?action=view&current=124-2464_IMG.jpg

And my thoughts on why apex seals break and how to fix.... I mean minimize it.i
http://www.rx7club.com/rotary-car-performance-77/why-apex-seals-fail-866513/?

Best Wishes,
Barry

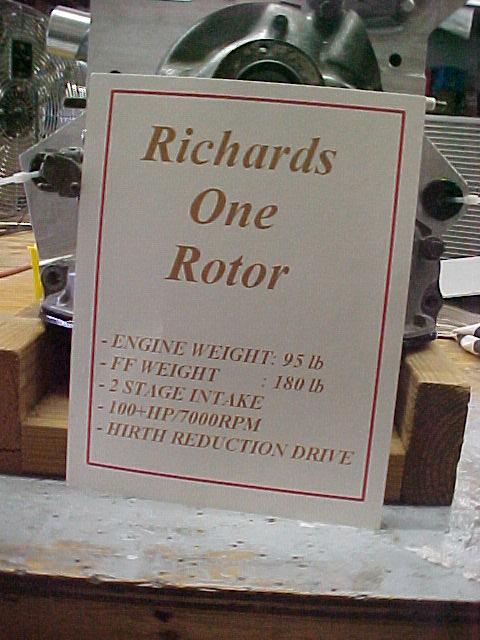

I'll be driving through there some times about the 1st of October. Richard Sohnn just
up the road in DeFuniak  Springs Fl builds his own one rotor engines.


Paul Lamar
--
