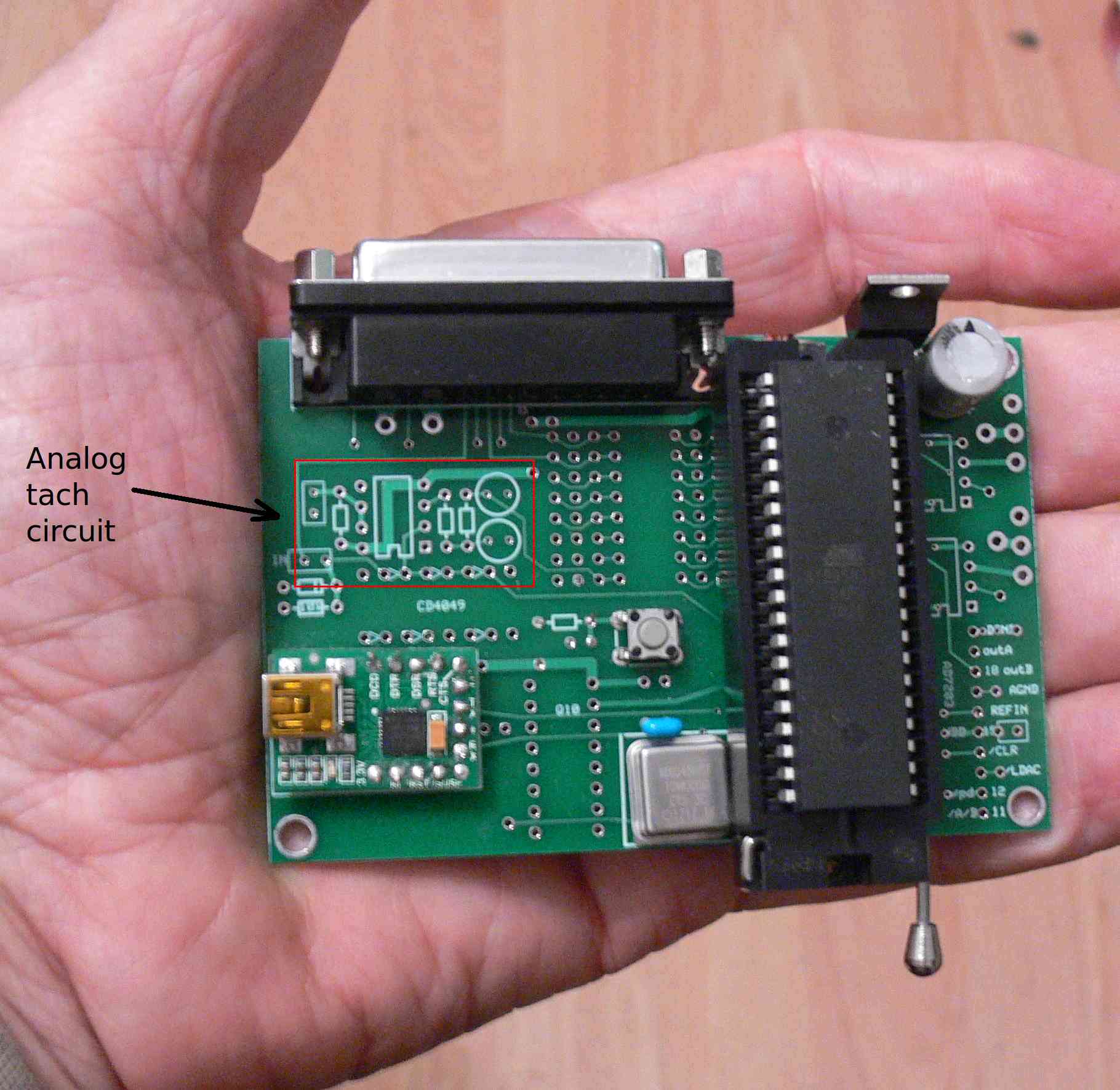

It executed it's first program. Had a wiring error but it can be fixed with jumpers.

The silver lever is a Aries zero insertion force socket for getting the chip in and
out quickly for programming purposes. There is no on board in circuit  programming
for this version. You must have a stand alone programmer.

It is not fully populated yet but all the other circuits have been tested on the bench.
