Paul,
Do you have any installation drawings of the mazda rotary?
thanks,
Steve Arnold

What type of airplane?
I have 3D drawings in Rhino format or iges or step.

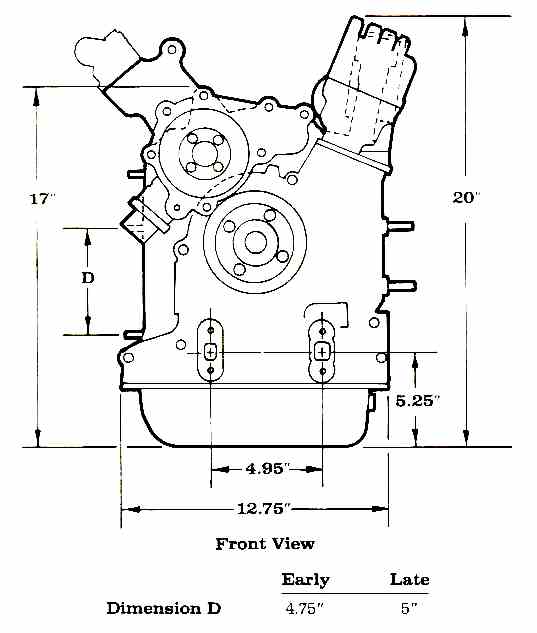

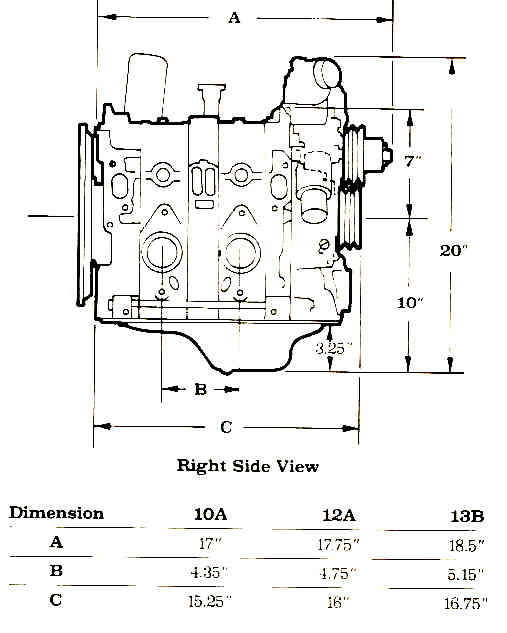

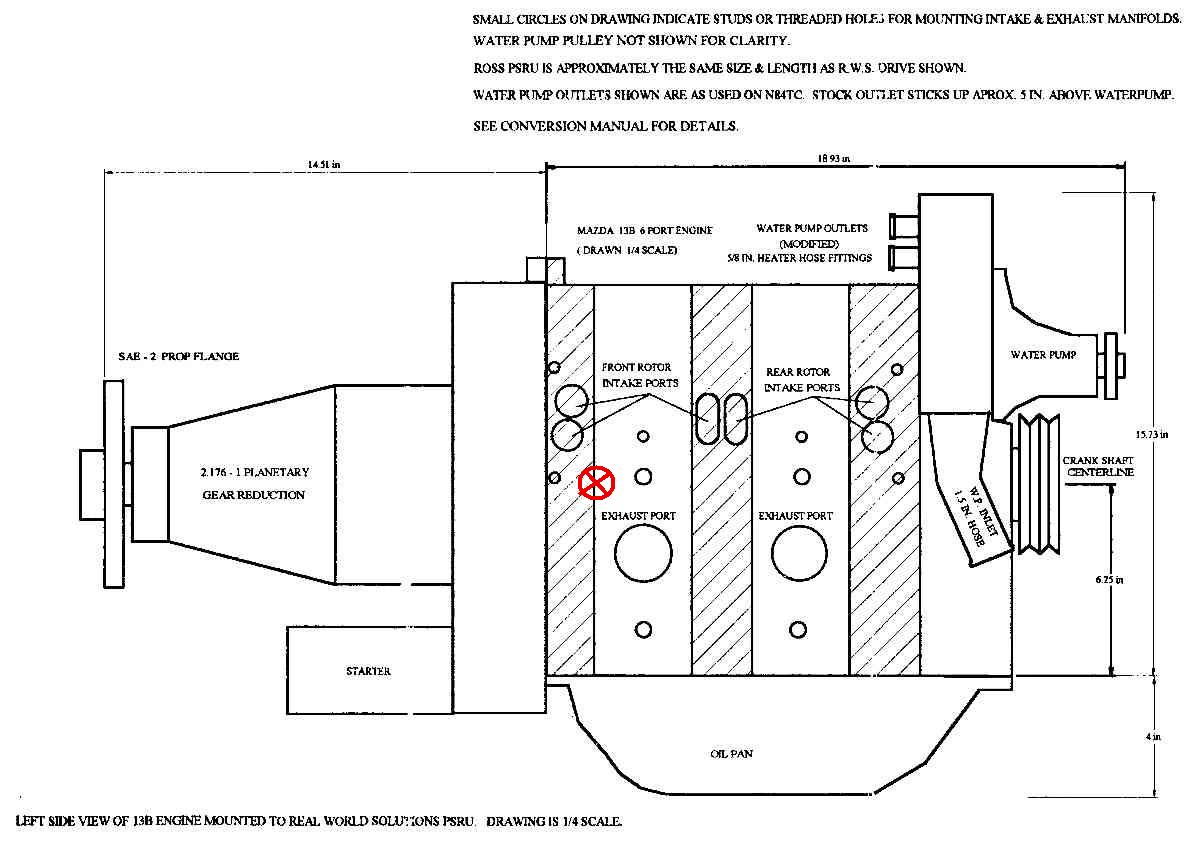

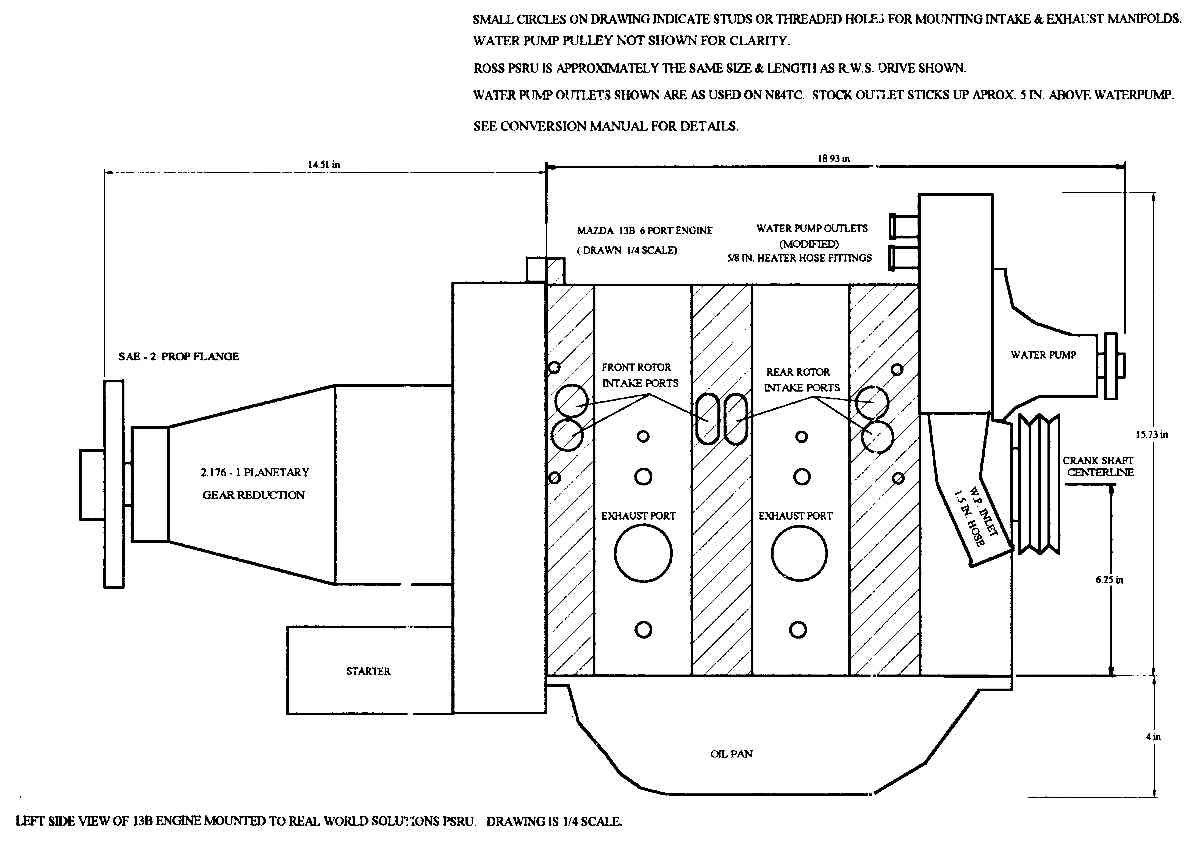

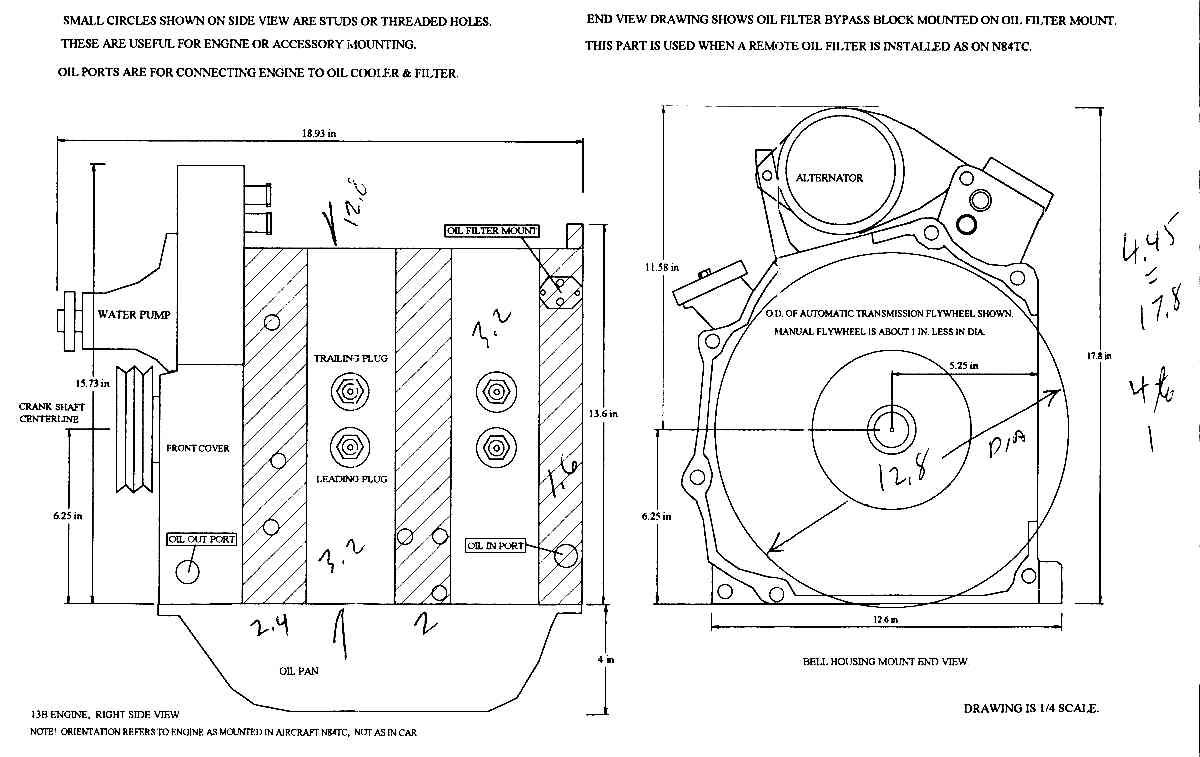

I can also send jpgs like these.

What are you trying to do?

Paul Lamar
--
