New Subject,
Does anyone have a dimension-ed drawing for a 3:1 reduction box
modeled on Tracy's Box?

Milo

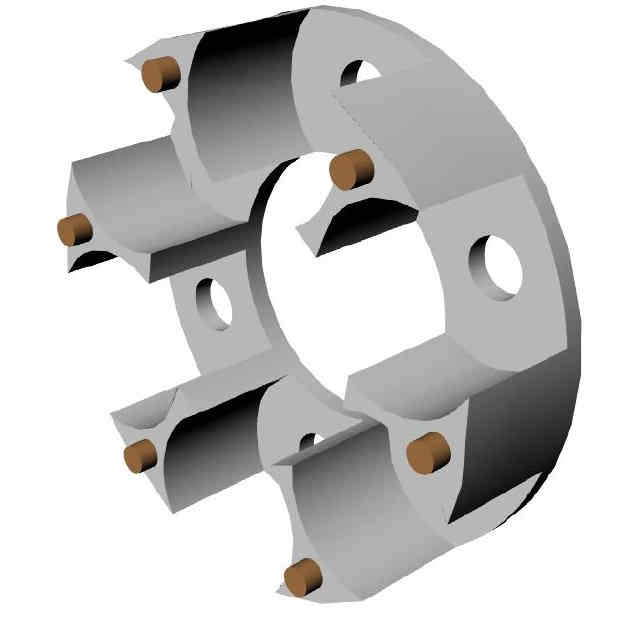

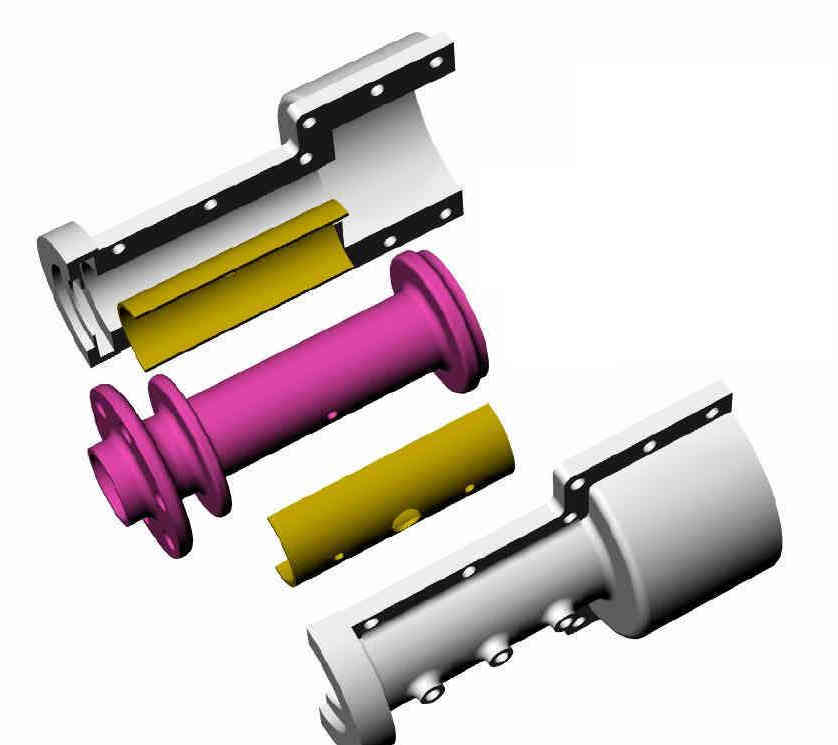

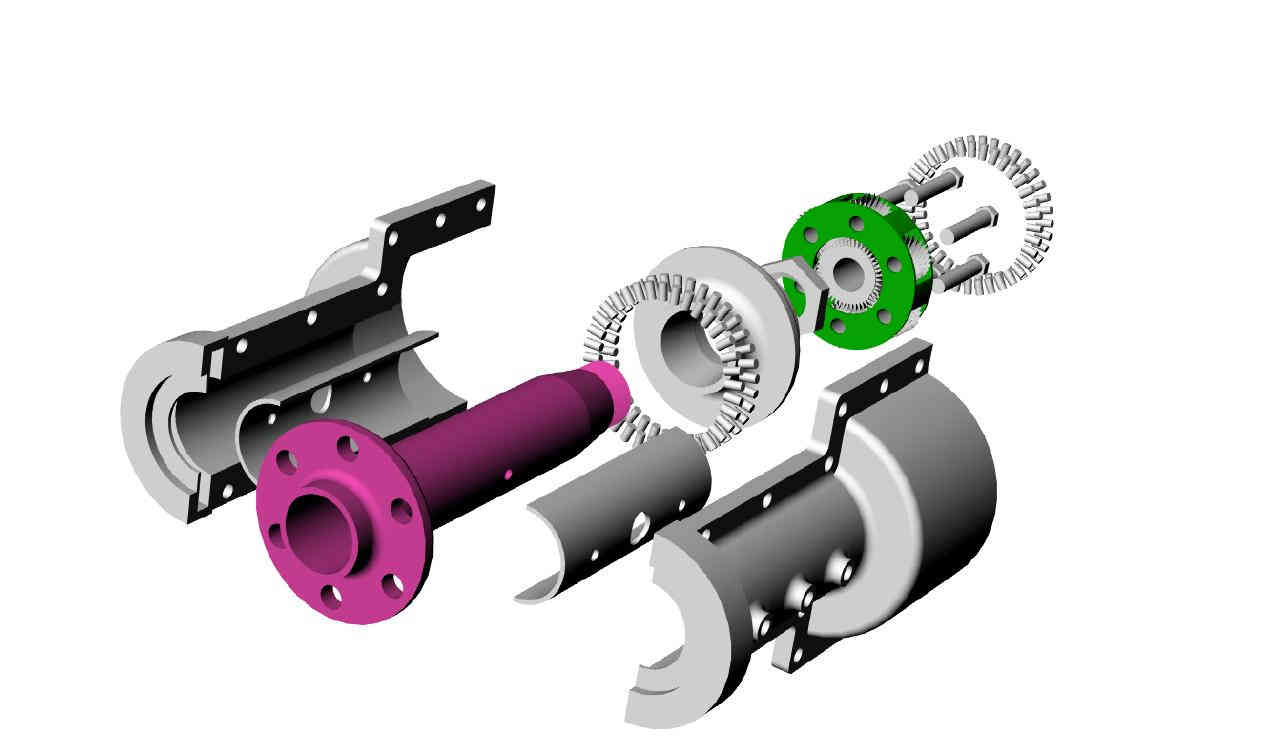

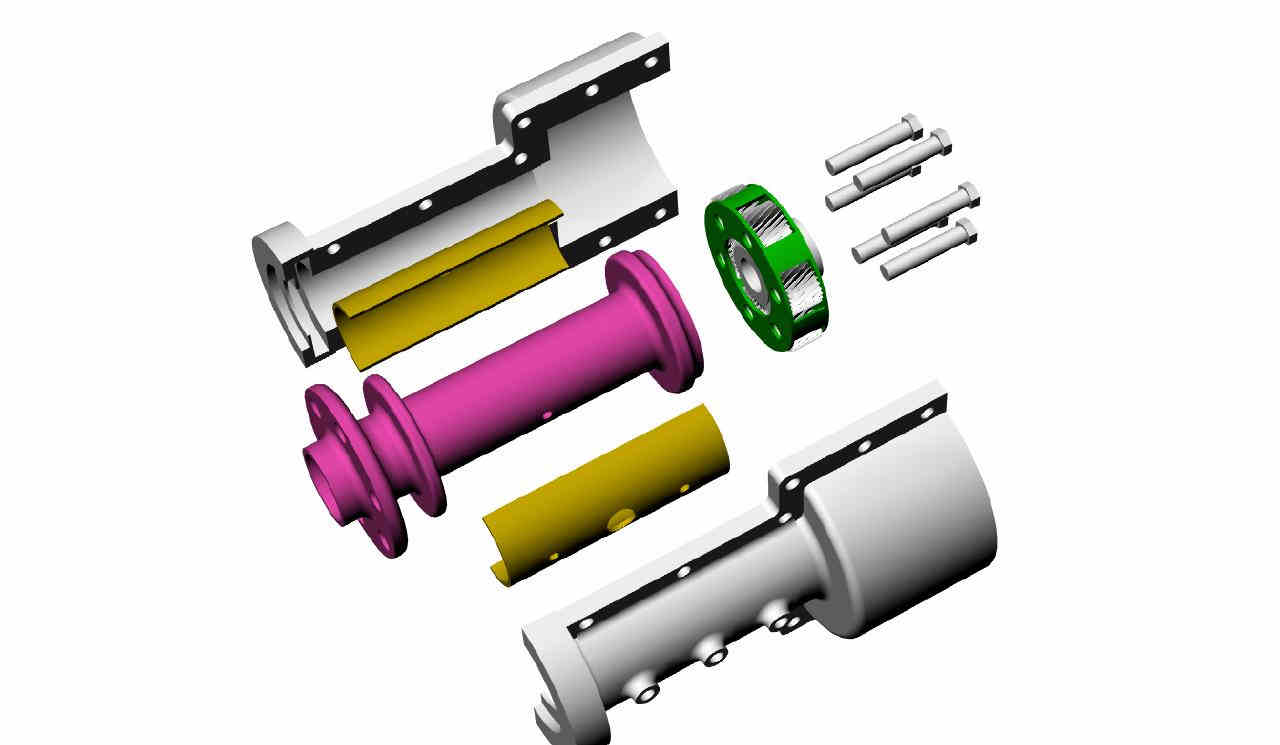

This is what I have so far.

Paul Lamar


I measured mine up for CAD drawings before I assembled it, but with the holidays I haven't had time to draw it. I will get to it shortly.

Kevin Alderman



Kevin, would appreciate a copy.  I think it is time to do a 3:1 drive.
Would like suggestions from one and all on the appropriate gears by part
number if possible.  Also design concepts as well, like integration with the
standard bell housings to keep the costs down.

milo

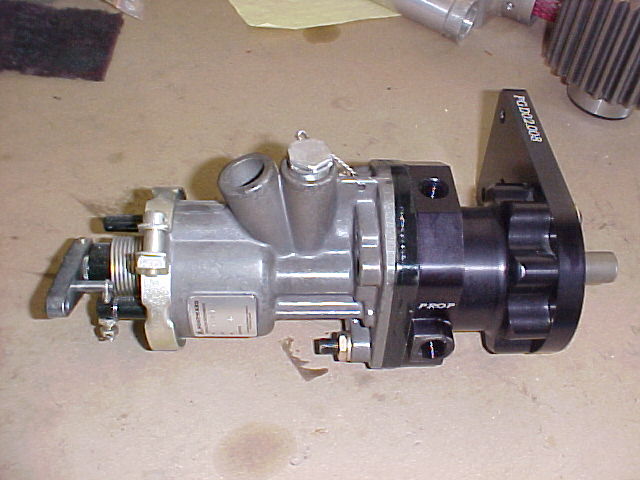

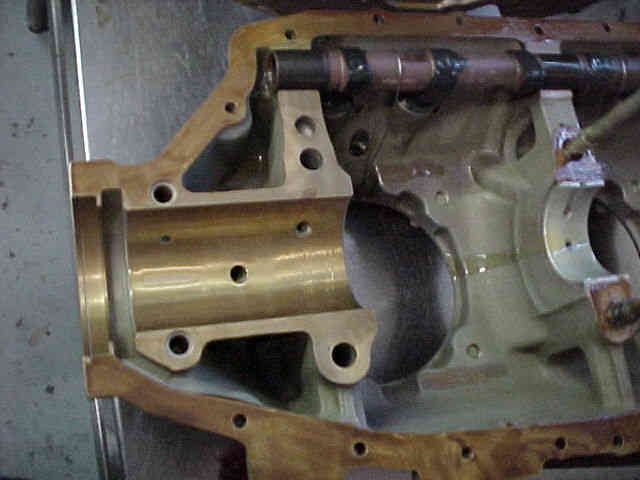

If you build it like this you can use a relatively cheap constant speed
hydraulic prop.


I forget the attachments.

Paul Lamar
