Alex, with a few changes to the water pump
and intake plenum I can use a simple top mount
and simplify the main motor mount greatly.

You will need to add a hard point to the top of the
firewall at the center. This is a real old idea used
by Power Sport 20 years ago.

Paul Lamar

Here is what the low cost version of the Tango mount with the
top motor mount. Fewer laser cut tubes and welded joints.
Rotary installation is driven by cost.

I had an idea on how to mod an off the shelf car shock
and convert it to an air spring.

Drill a hole and drain the oil. Tig weld or braze a pipe
fitting on. refill with oil and plumb to an air pressure
can.

Paul Lamar


You can buy shocks that way now. Takes the fun out of when the shock will blow
up when the oil vapourizes from the heat.

Dale Davies

Got any specific car model suggestions Dale.
Preferably something heavy like a sport ute or pickup truck.

Got any junk ones lying around I can play with and test.
I'll pay shipping. I need mono tubes.

Paul Lamar

 Here are some pics, unfortunately i am not in the USA at the moment to take
more pics but the one pic shows the water pump outlet mods Milo did, its not
a slide throttle on this one, the intake plenum is on the side of the intake
so it should be easier to attach the top supporting strut to the top of the
engine and the top centre of the firewall, i'd like to turn the intake
around and have it facing relative airflow rather than the firewall, net me
a bit of ram air pressure, I'd also like to look at p-porting as a project
for later down the line once she's flying and proven, but i guess i could
route the pipes around the top MM strut somehow,


 Alex

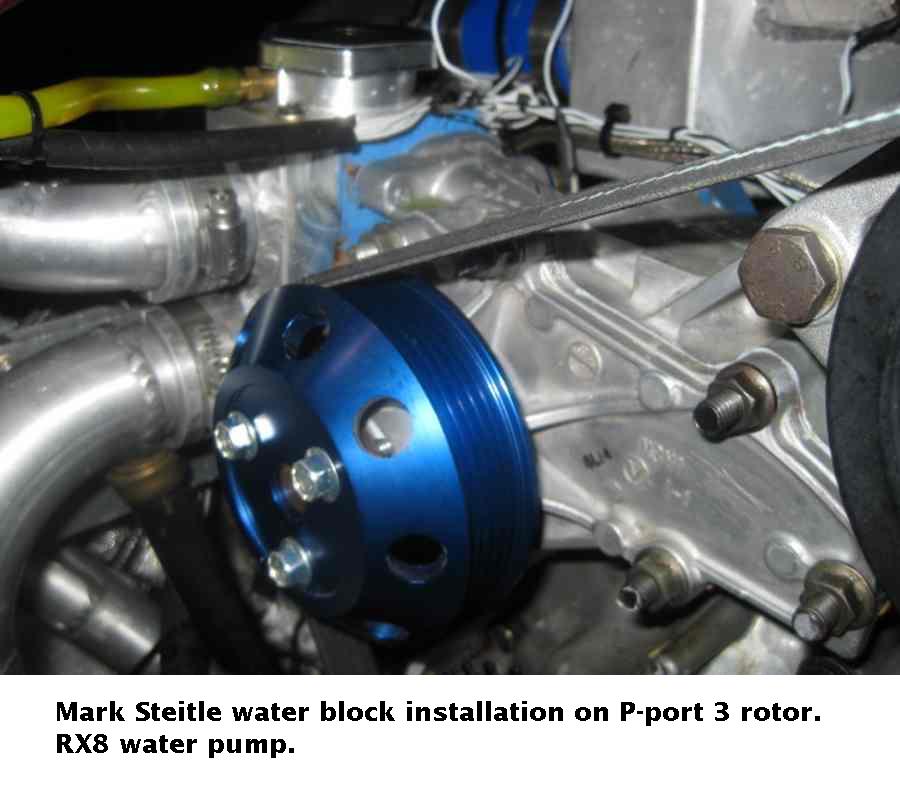

Ah so stock RX8 water pump.
P-port and slide throttle.

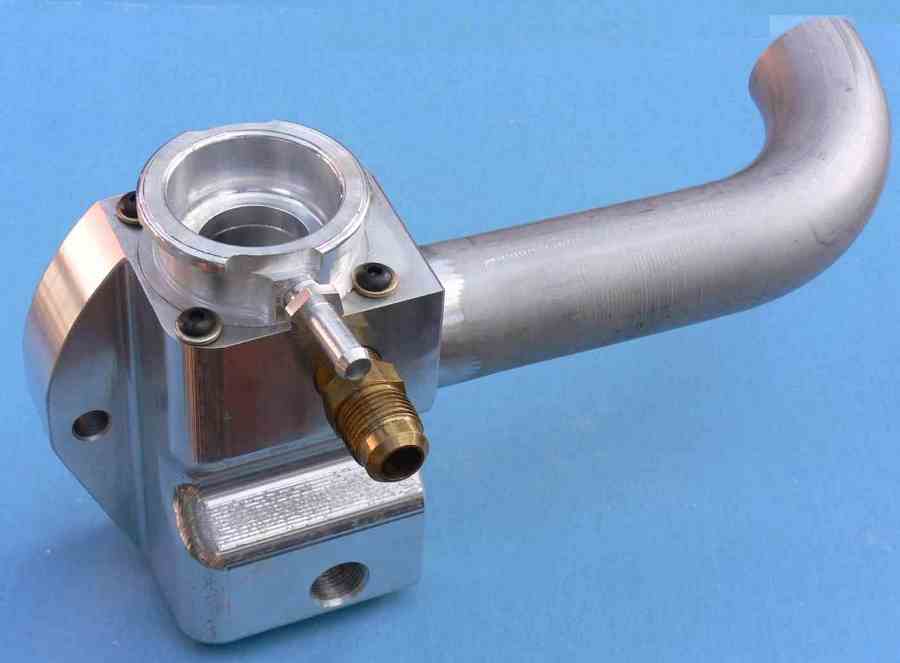

If so you will need an WP adapter block.

Paul Lamar
