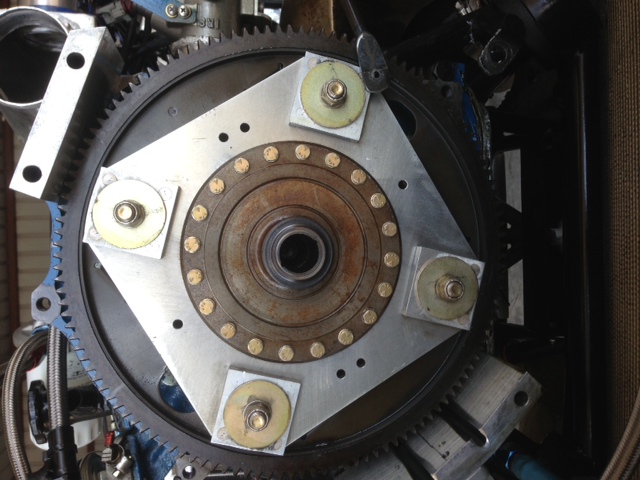

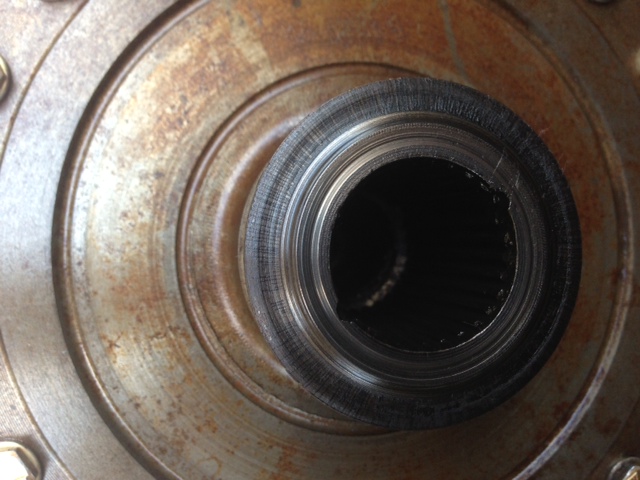

Pics of my flex plate assy. (with bolts instead of rivets).

Mark

Nice Mark. Safety factor of 50 :)


I am having a lot of trouble finding a 10 MM hex drive flat head metric bolt with 1 mm pitch that
will hold the flex plate to the counter weight. That means we will lose about .3 inches on the width
of the rubber bushings. Plenty of them out there with 1.25 pitch. 1 mm pitch is called super fine.

If anybody knows where I can get such an animal please speak up.
Bolt Depo was no help. Same for McMaster. East Coast 800 638 1830 John is checking his
Japanese supplier.

Paul Lamar
