Very well made device by
 Tom McNeilly
 14001 E. Williams Field Rd.
 Gilbert AZ 85295
 (480) 899 7613

 Haven't installed it yet.

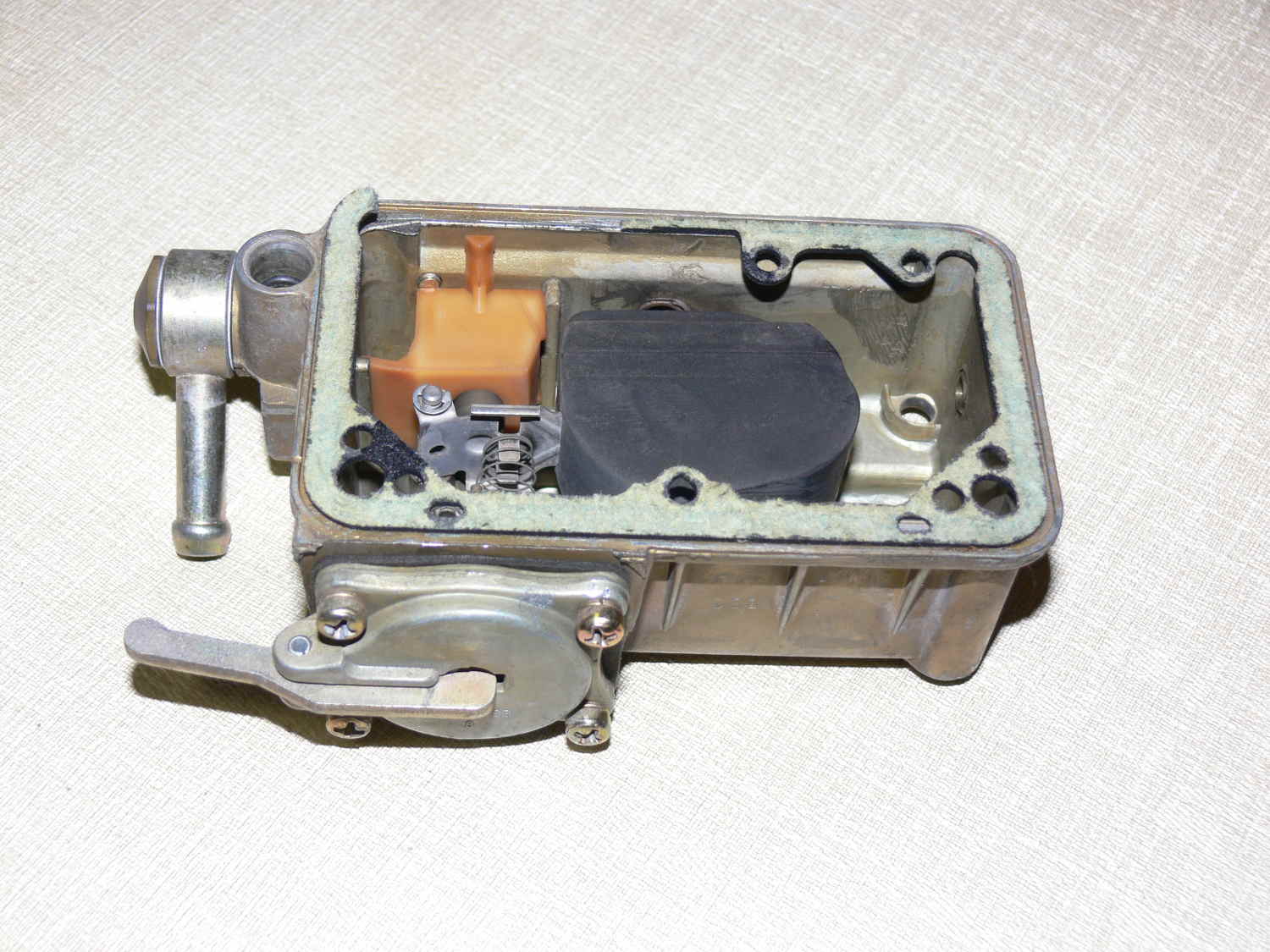

 The silver gadget lengthens the accelerator pump arm
 to compensate for the leaning block insertion.

 The power valve is also blocked with a supplied plug.

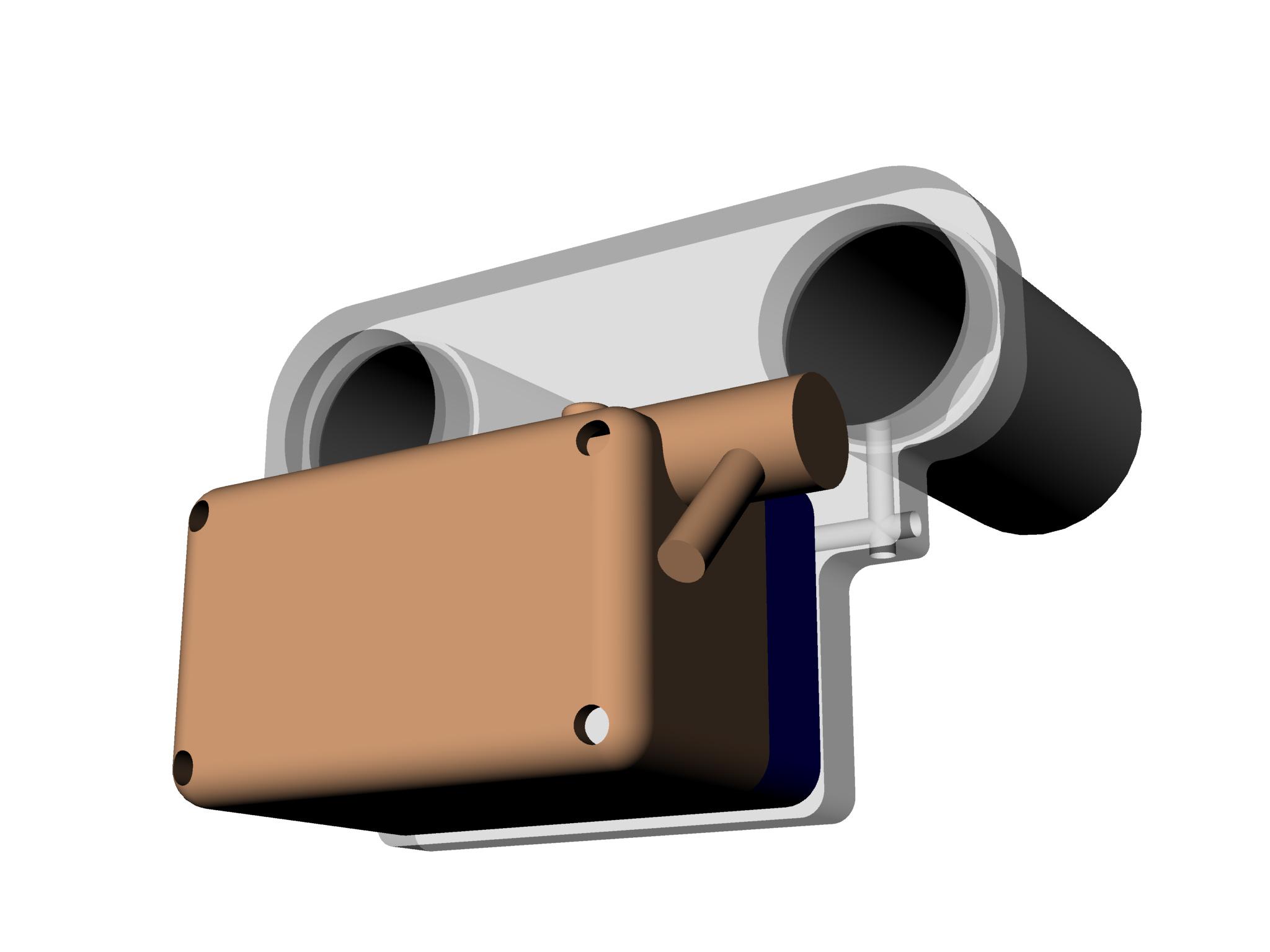

 I plan on using it for the side draft, slide throttle,
 2 barrel carb I am designing for the p-port two rotor.
 I will use the Holley float bowl assembly.

 Paul Lamar

So will you be taking the throttle butterflies out and using the Holley
to provide the mixture control ?
And not being a smart ass but I'm guessing you mean side mount downdraft
carb, right ?
I like it.

John Gibbons

The throttle butterflies do not control the mixture.

I am not using them.
The size of the jets control the mixture.

Not side mount downdraft.
Side draft carbs have horizontal air passages.
Down draft carbs have vertical air passages.

Paul Lamar
