When I look at those dwg, I do not understand how the sun gear is
powered from the engine and rotates the planetary gear set.
Spring induce friction, that I understand but where is the part linking
the shaft to the torque assembly?


Would be great if someone gather a definitive set of drawing on a final
design of a gear box in order for all to be on the same page and having
the best of all these years of improvements and thinking's....

Pascal (starting to be confused as well with all the sum of
information's....)


Does this help? Dwgs of Tracy's gear box.


Paul Lamar

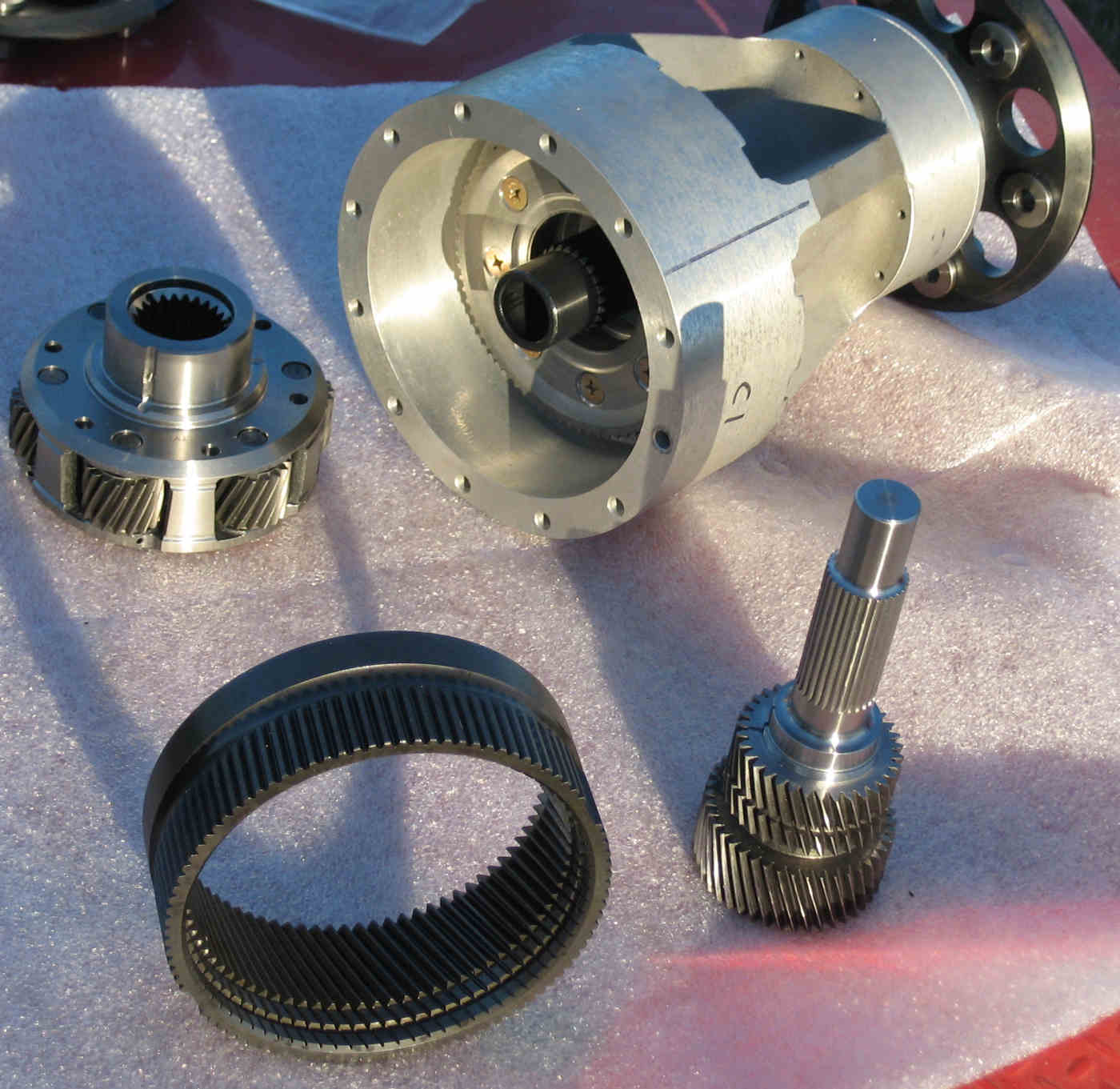

Pascal , I would strongly recommend purchasing the six pinion gear the ring gear (cover) and
the middle piece. It less then $200,  It will all become clear once you play with it :).
The drawings pictures etc will make sense.

Zahid Rahman
