Paul,

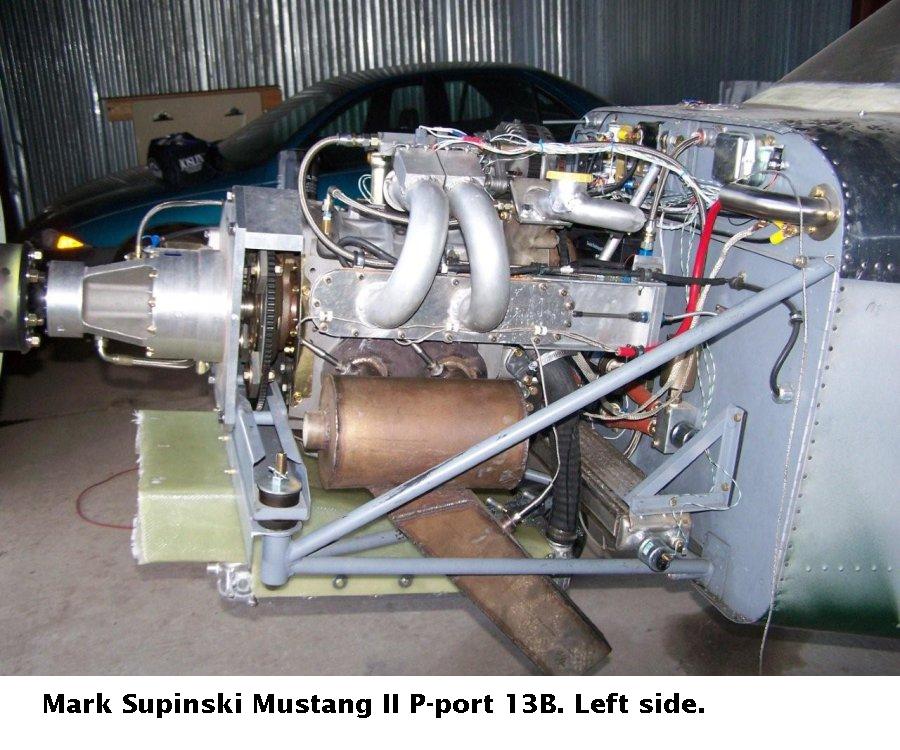

The image  left-side-p-port.jpg (attached) of Mark Supinsky Mustang II
P-port 13b left side shows P-port with slide throttle as per rotaryeng.net
website and a short exhaust.

The image p-port-turbo.jpg (attached) shows the short exhaust replaced with
a turbo and feeding back into P-port  top chamber.

Principally are these the major hardware changes needed to add turbo to a
p-ported  engine.


Regards
Zahid Rahman

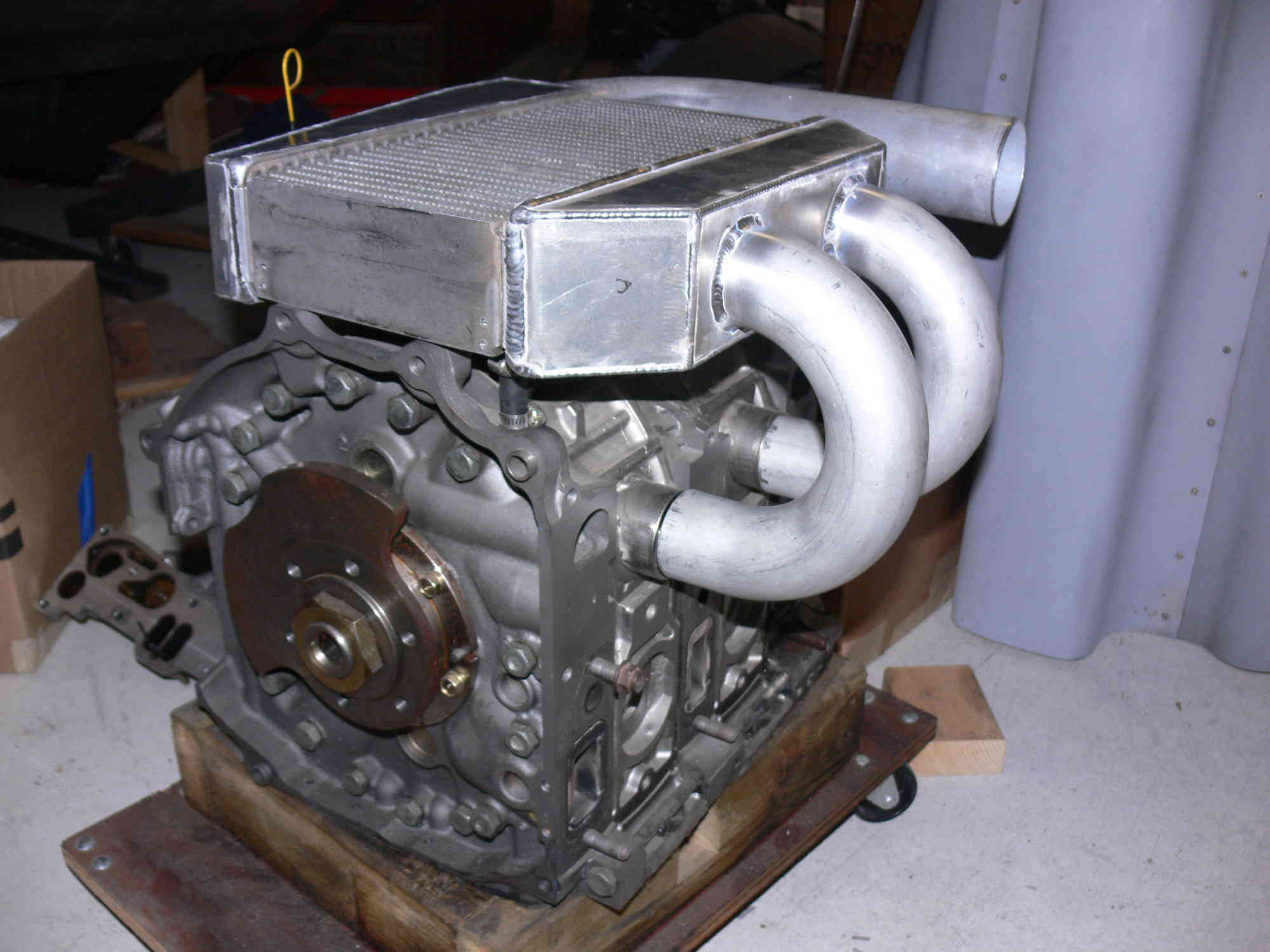

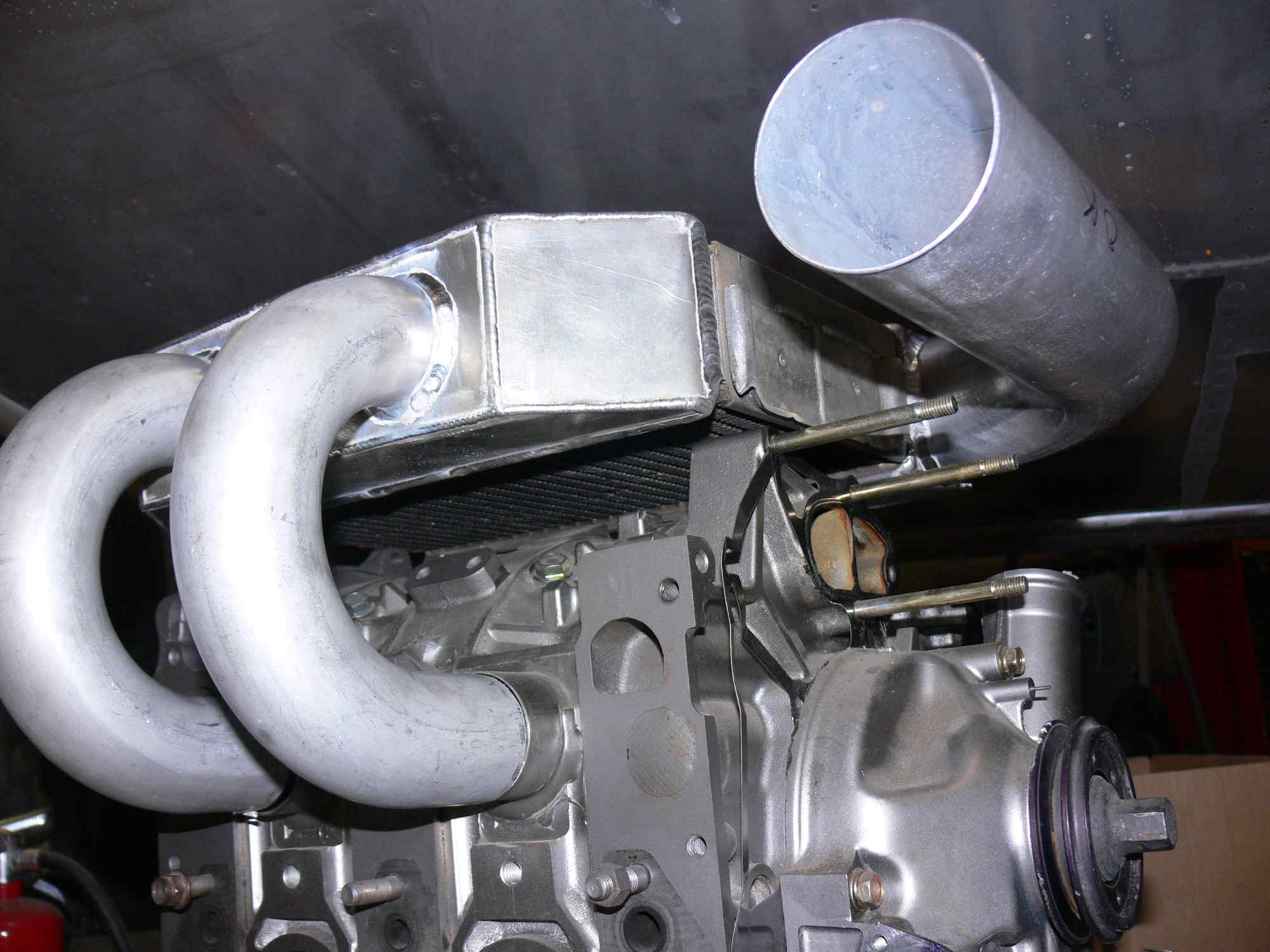

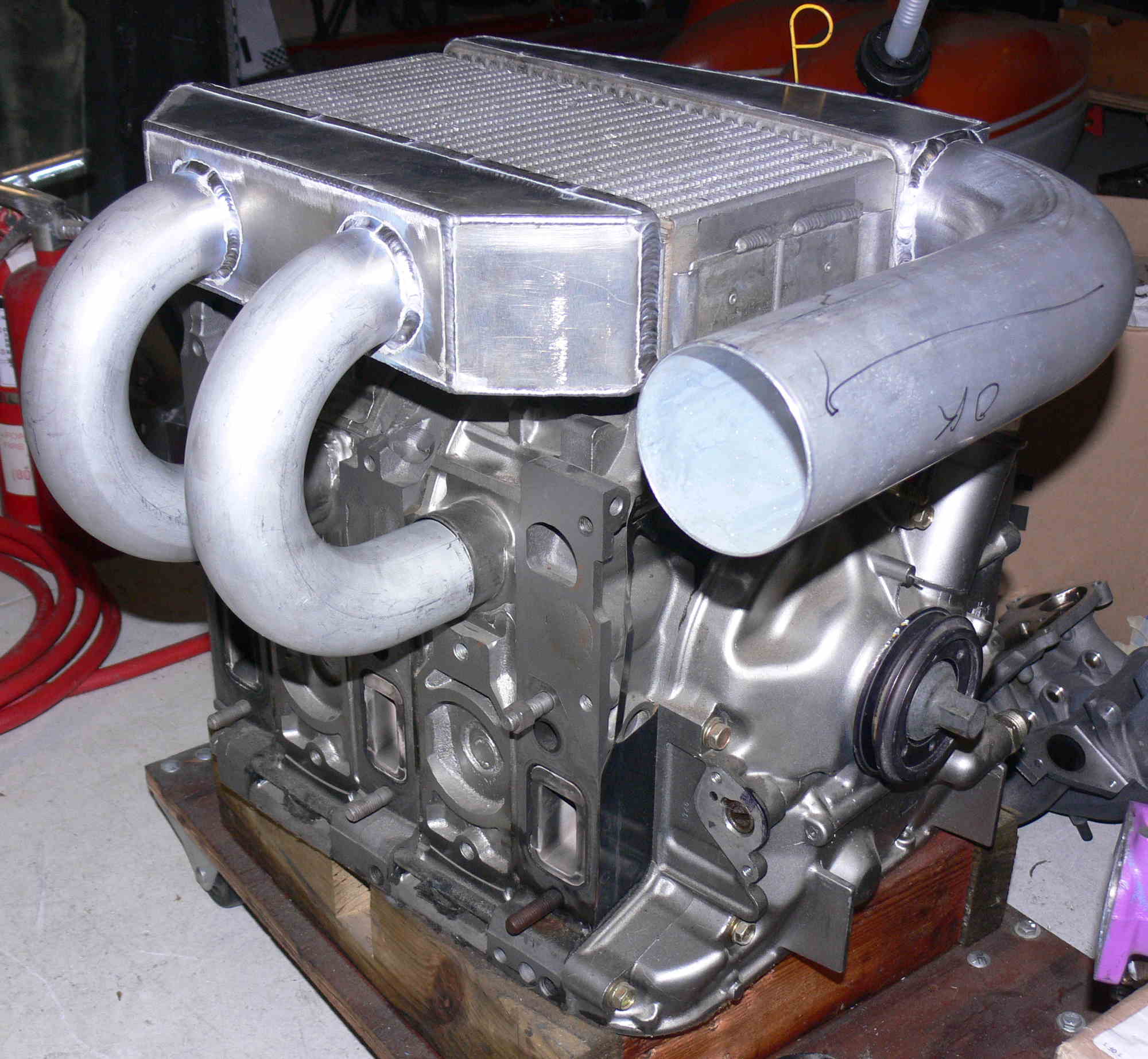

Yes and here are some pictures of the turbo integrated inter-cooler
and p-port intake manifold my welder welded up for Mike Collier's
Long Ez. This will be an easy 300 HP or more.
It requires a butterfly throttle between the turbo and the
inter cooler.

Paul Lamar
