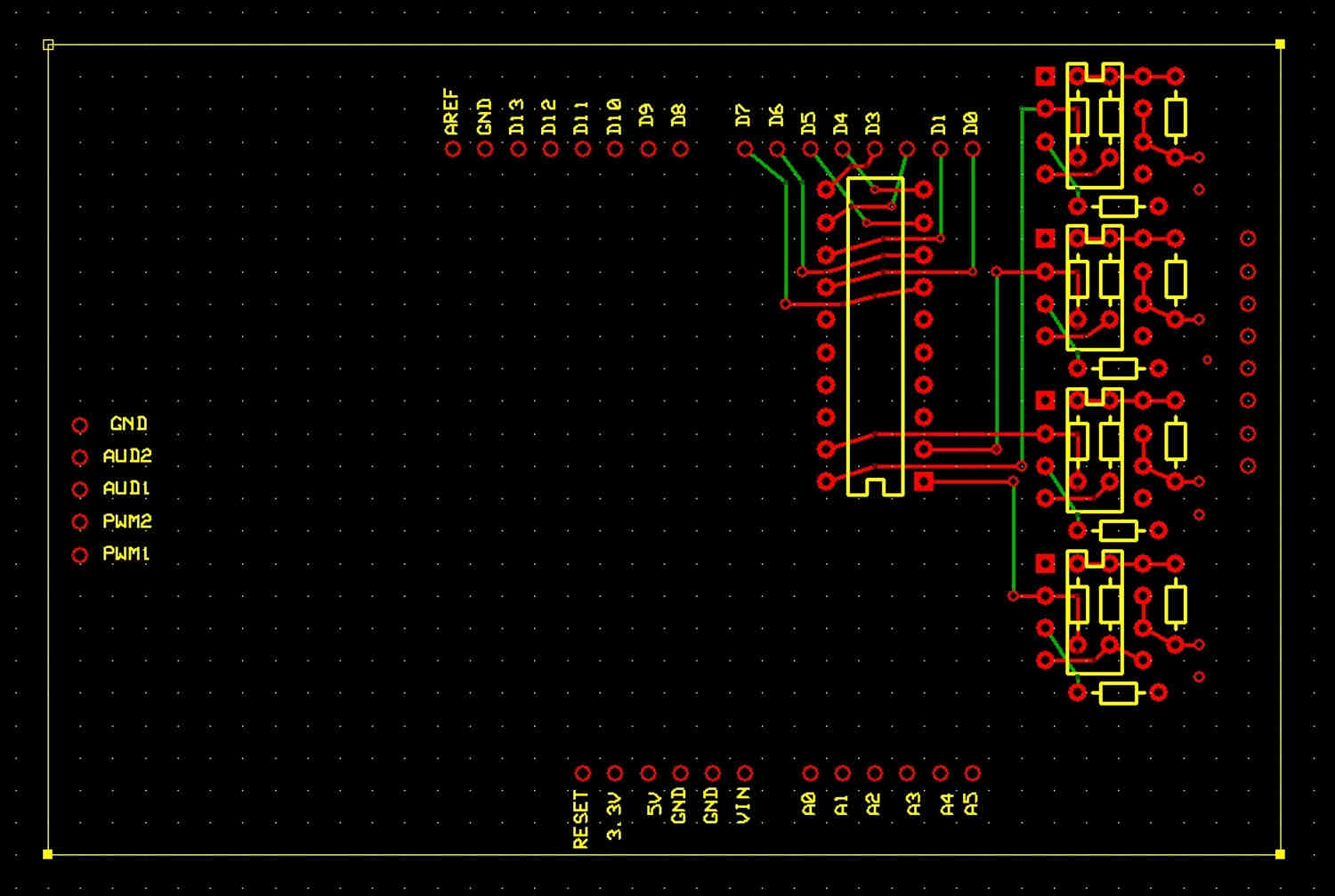

Here is a pre lim design for a Maximite or Arduino
shield that off loads the EFI injector control stuff
to leave more time for EFIS. Four injectors each
can be set up differently. Once set up the engine
will run for hours with no processor intervention.

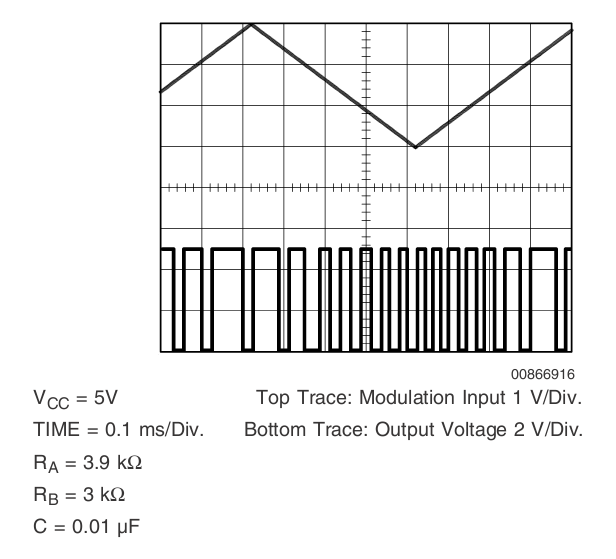

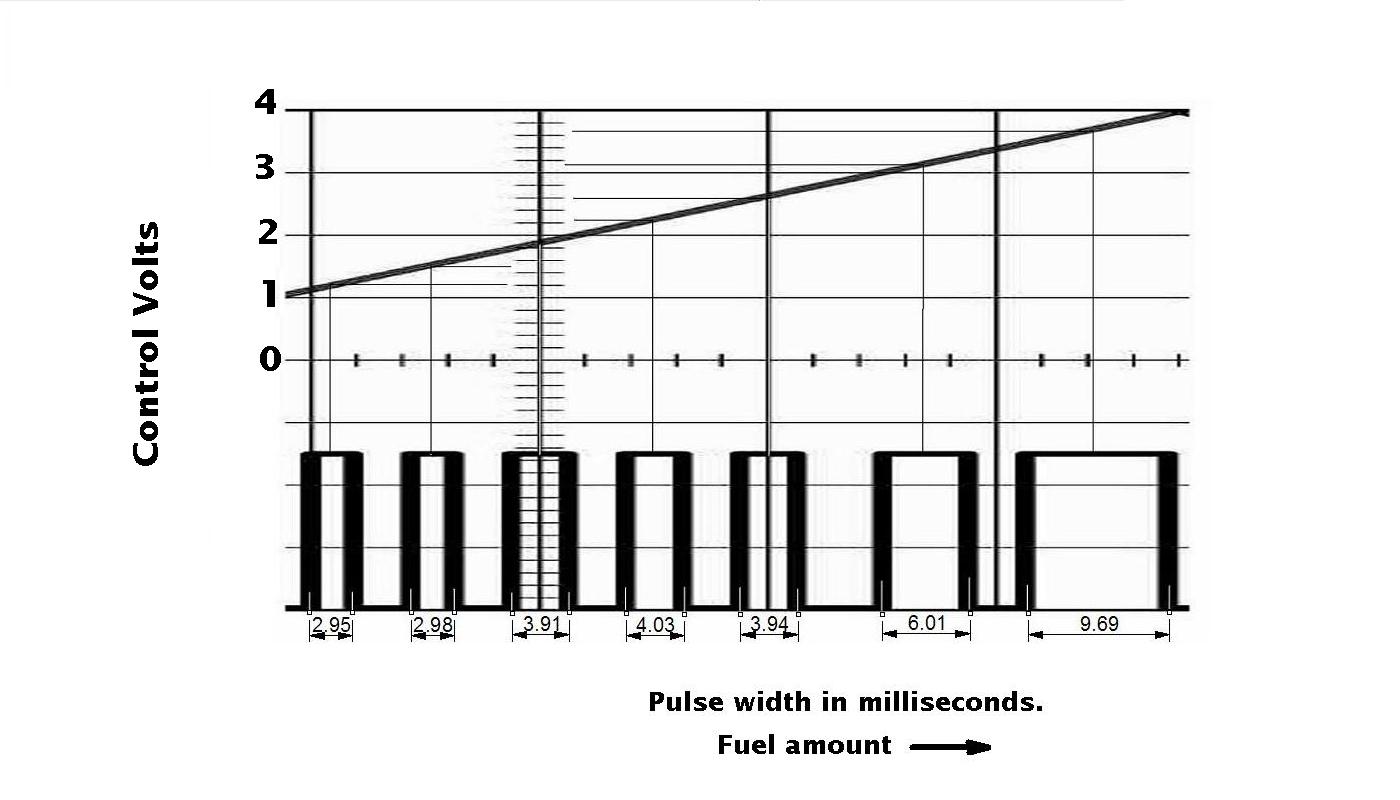

It use the CMOS 555 in PWM modulation mode.

Paul Lamar
