Hi Paul
Here is the POH of
another I got my hands on.

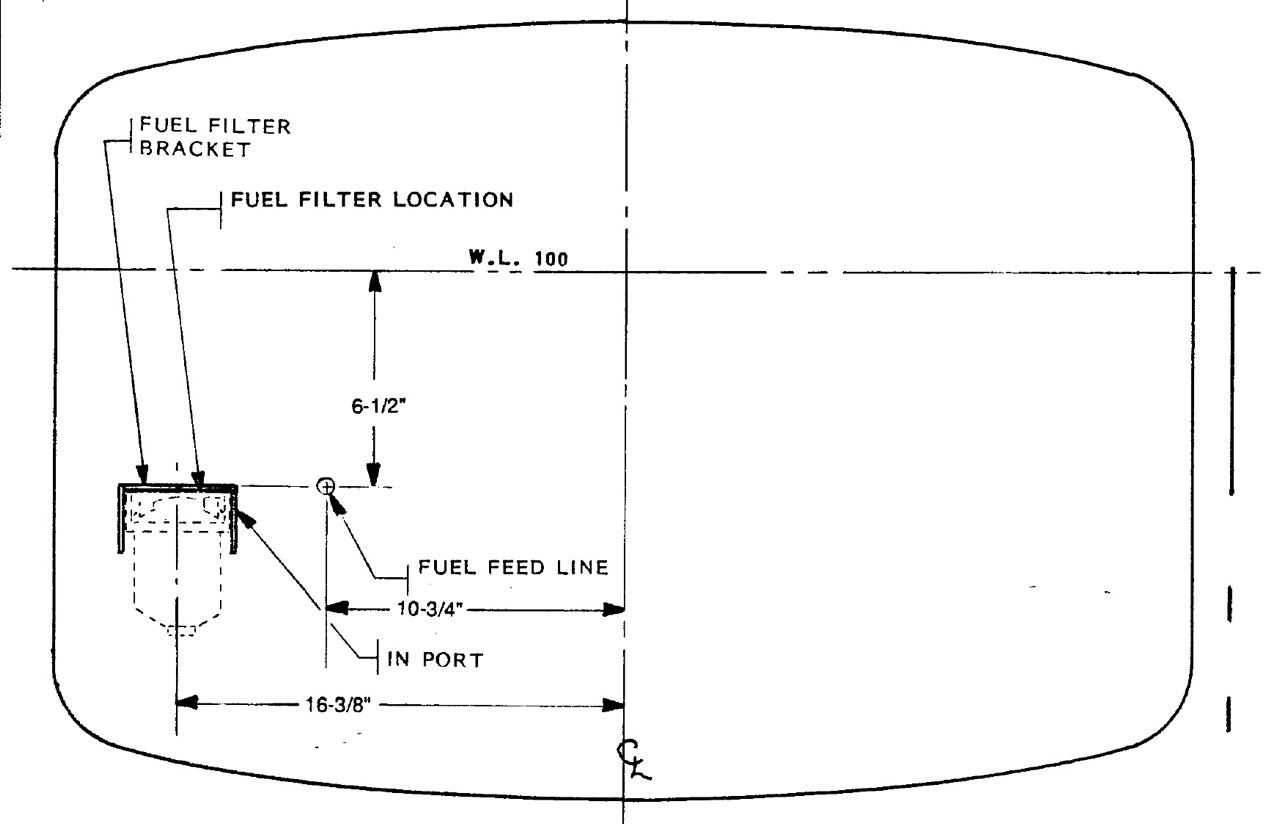

The drawing is the best I could find of the firewall. Hopefully its to scale.
The actual firewall dimensions page in the handbook G-123 is a full size template that I no longer have.

Steve Izett

Thanks Steve.

That is just what I am looking for. I can scale it from the dimensions given.

Paul Lamar
