You are not going to believe this.

 This makes an e-shaft cheap to manufacturer.

 It takes a special right angle tool to drill the holes but that can
 be done.

 These lobes are made in quantity by an NC mill and then hardened and
 ground.

 Then they are merely bolted to the e-shaft at the correct orientation
 for the number of rotors. Every 90 degrees for a 4 rotor.

 This assumes 200 foot pounds of torque for each rotor. A 4 rotor
 turbo engine would therefor have 800 foot pounds of torque and 1218
 HP at 8000 RPM. Right about what we are getting per rotor on the
 Time To Climb engine.

 The 2400 pound number shown is the average shear load. Peak shear
 load would be about twice that. Each bolt takes half of the total
 shear load.

 The 3/8 shoulder  bolts shown are 140,000 psi. The shear area is
 .110 square inches.  Lets say each bolt has a shear force of 2400
 pounds. That means the bolt is capably of resisting 15,400 pounds. A
 huge factor of safety of six.

 Each lobe is an I beam to cut weight.

 I could get a patent on this but it would take years and cost a bunch
 of money as well as defend it. I am donating this to the Wankel
 community.

 You cannot get a patent on this as I have already published it :-)

 This also makes assembling  a  one piece e-shaft four rotor with 5
 main bearings easy. No unusual main bearings devices are required
 such as the Offenhouser device and method. This also cuts the cost
 of the engine. You can build it up like stacking pancakes.

 BTW Very few people realize the Mazda two rotor e-shaft is three
 pieces. They are spin welded together. This could be spin welded as
 well but some of the advantages would be lost. For example suppose
 one rotor bearing was scoured from dirt in the oil. Just replace
 that lobe.

 Paul Lamar


 Paul, nice idea, what about splines or key's on the shaft, and
 broaching the eccentric?

 Steve Carlisle

 No room for splines and you cannot broach an I beam eccentric.

 Paul Lamar

Can the shaft diameter be decreased slightly?  I believe the thin section of
rotor will crack during heat treat even with a small amount of material
left for ID and OD grinding.

Gary Knutson

Yes I think so.  However the strength is proportionally to the fourth power.
of the diameter so I will not reduce it much.

New main bearings can be machined of reduced diameter.

The rear main can be used as is.

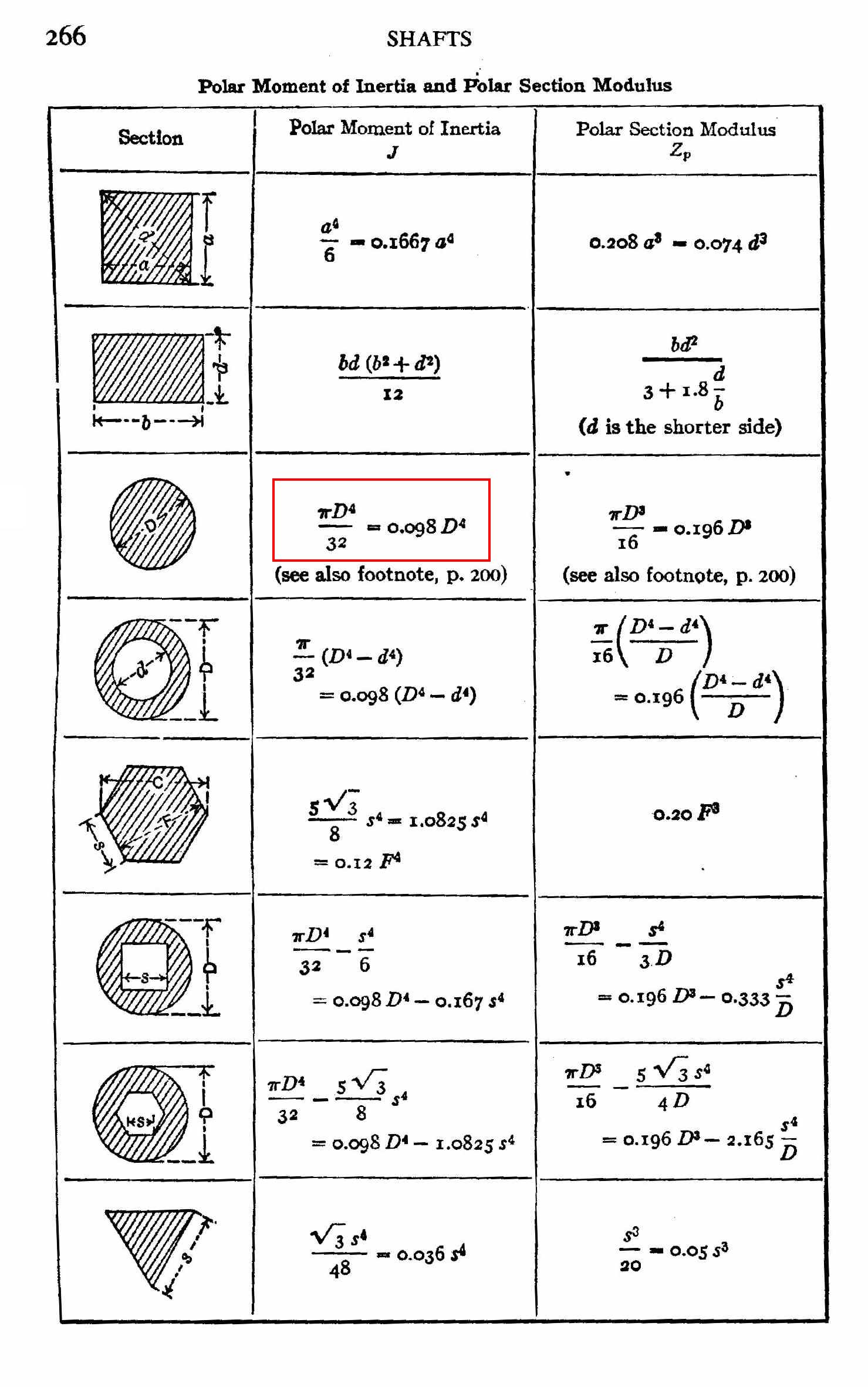

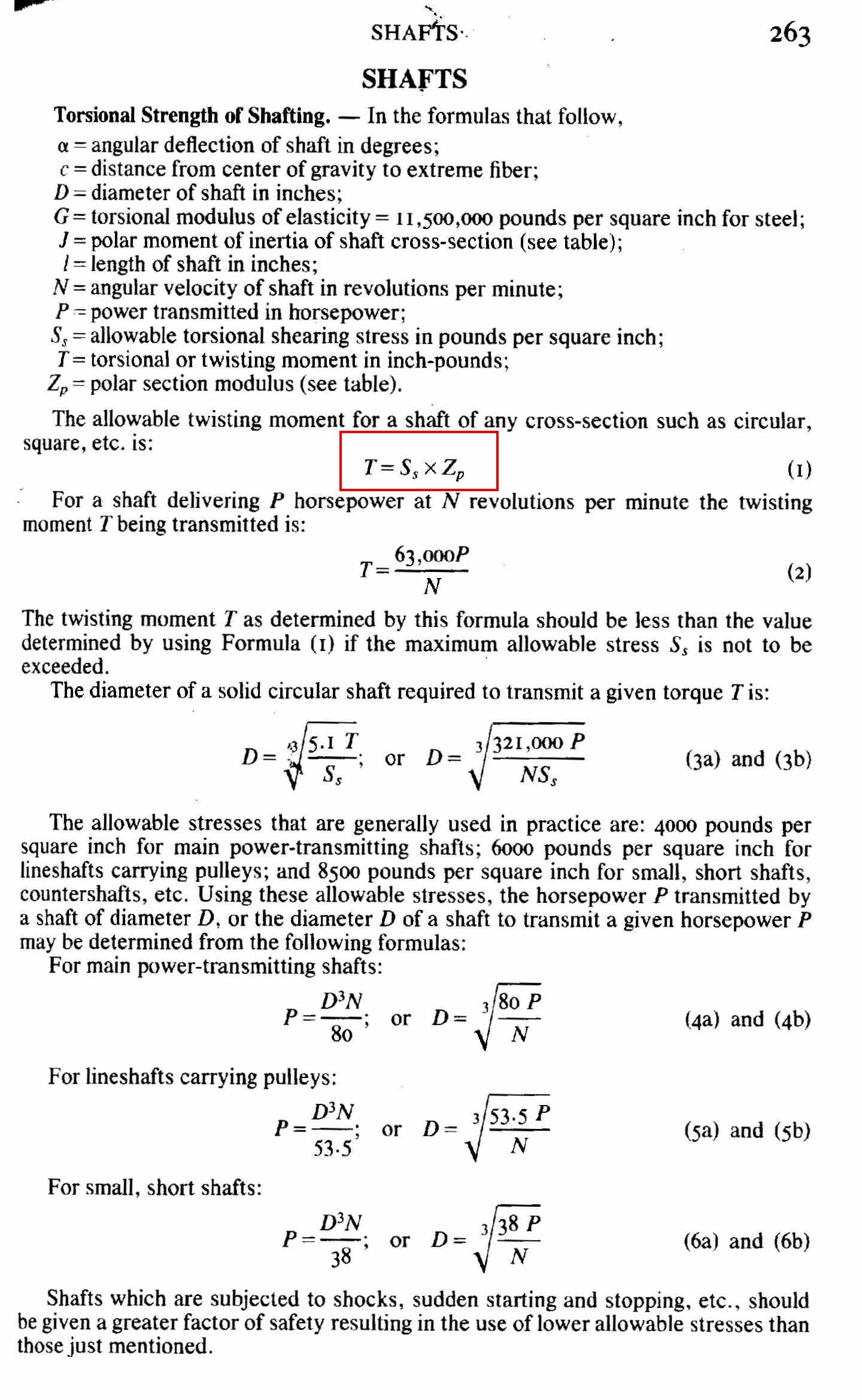

I need to make some calculations on that.  Here is the math out of the Machinery Handbook.
Unusually clear and simple because it is done in inches and not in the silly metric system :-)

If we can't find the correct bearing shell diameter we can use sleeves between lobes.

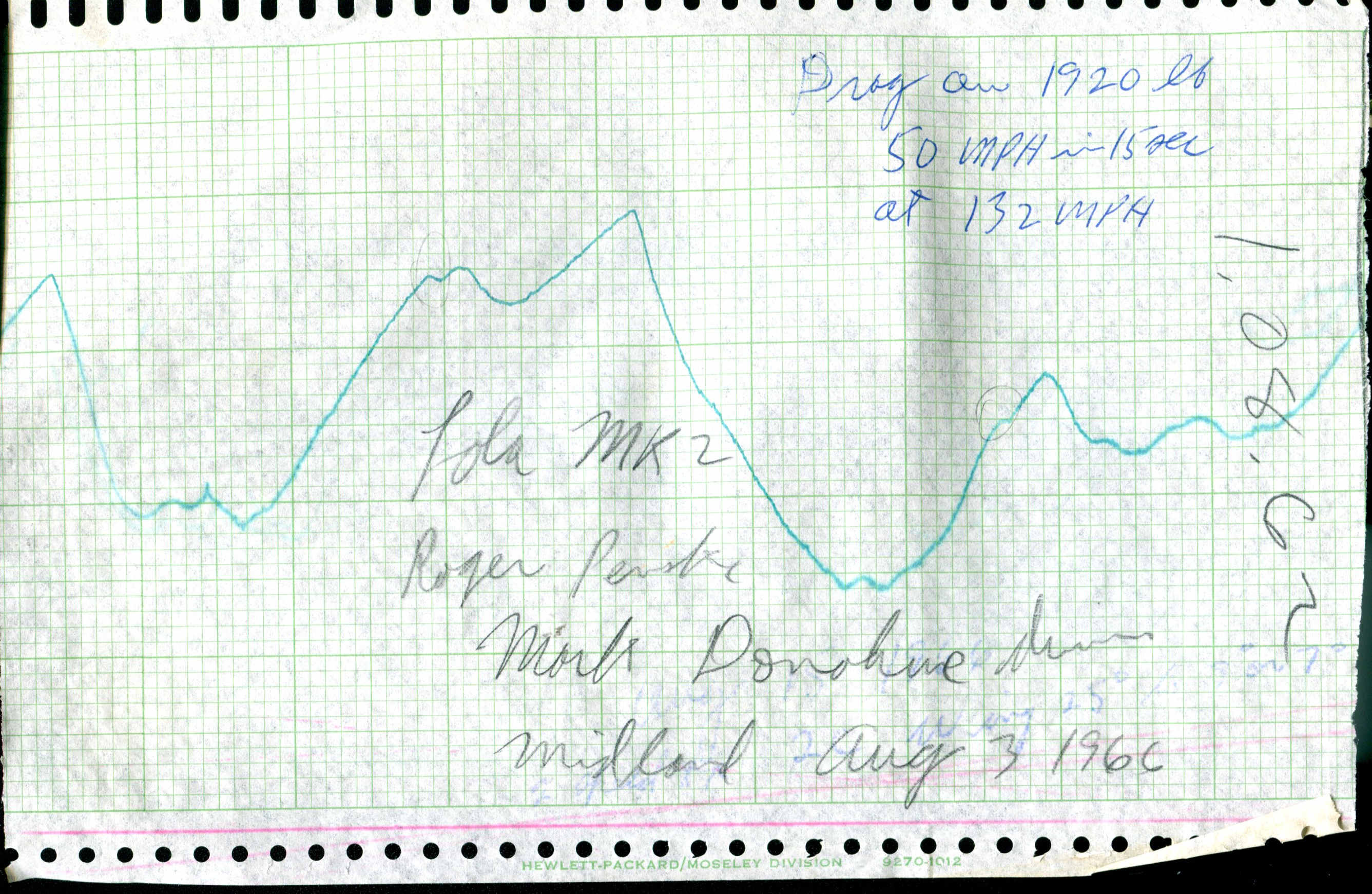

The third attachment you might find interesting :-)

Paul Lamar
