As you see the engine at this stage it weighs in at exactly 45 Kgs
 or 99Lbs. It has one piece ceramic seals, and estimated to put out
 in the region of 130 hp @ 7000rpm. I will post more photos as the
 project progresses.

 Andrew campbell.

 Nice work!

 Harold Lunt

 Very nice work! Please, do keep us advised of you progress.

 Regards, Norman Parmley


How do you drain the rotor cooling oil into the oil pan? since the
original side housings do not have provision for that.

Richard Sohn

Excellent question Richard.
A reflection of your vast experience with one rotors.

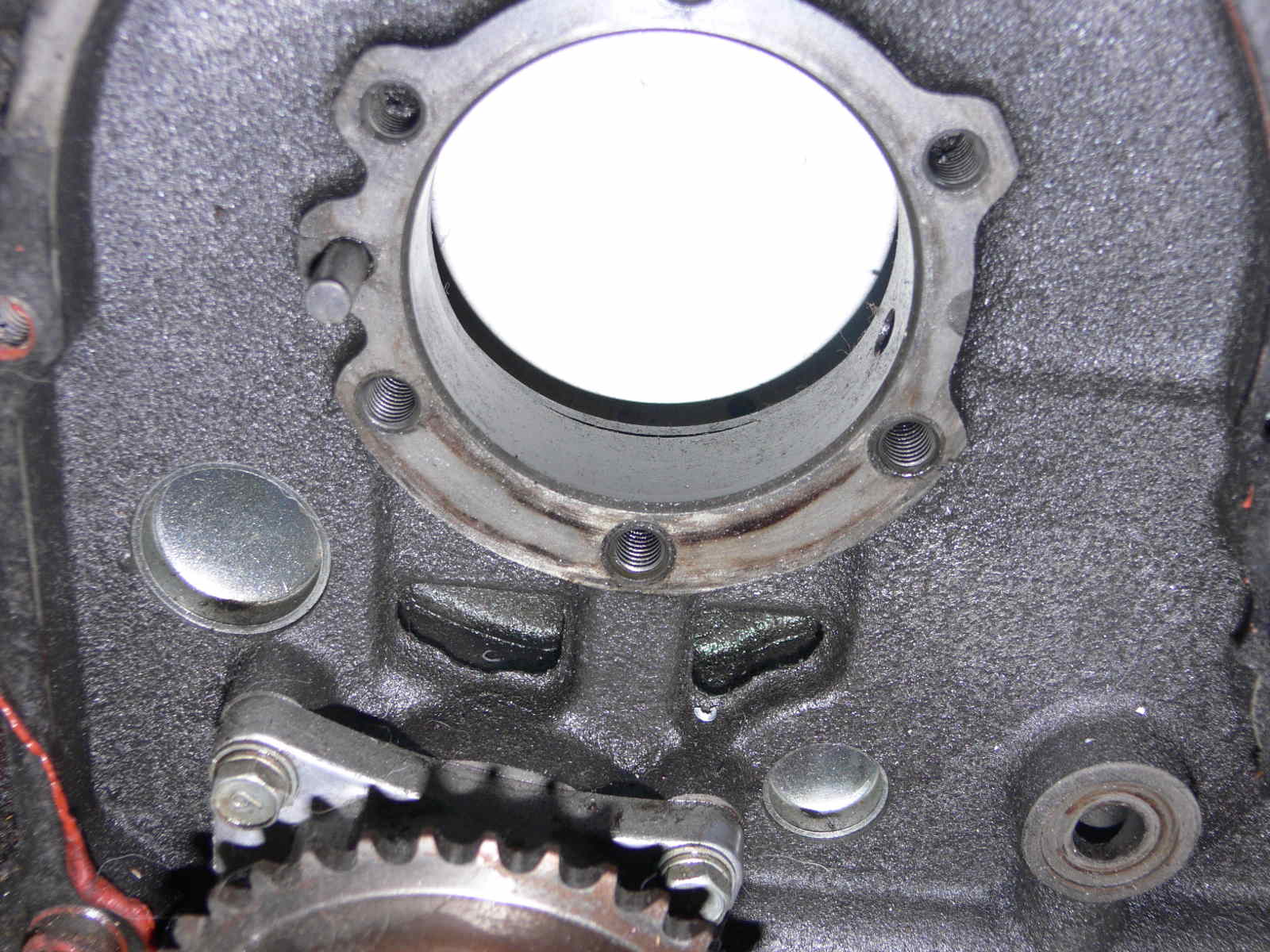

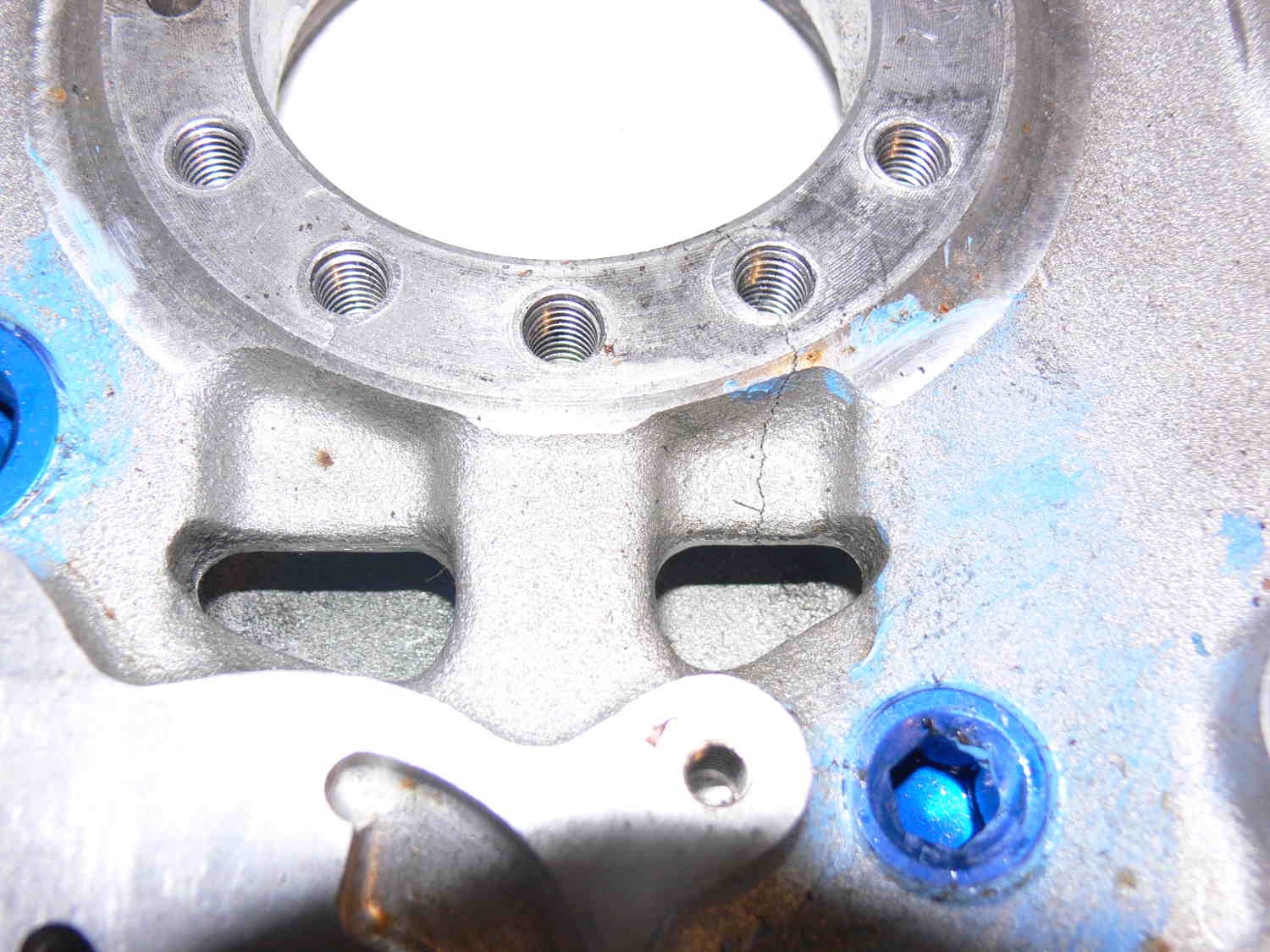

The drain backs are built into the front end housing in the iron
version as well as the RB aluminum version.

The gear teeth are not now needed on the front main bearing
holder. They could be ground off to improve the drain back slightly.

Paul Lamar
