I have a friend that has owned a machine shop for decades.
He told me every lathe must have a 4 jaw chuck. Four jaw chucks are
a pain in the ass to center but 3 jaws have almost inevitable run out
of a least 2 thousands of an inch. I am working on a prototype
gear box and 2 thousands run out is unacceptable.
My 1977 CC lathe is still in good shape but so far I have been
unsuccessful
in finding another chuck backing plate for it. None of the more
modern standard backing plates
fit. I don't have the money to pay a machine shop to machine a low
tolerance
new steel backing plate. The intention was to grind another backing
plate for the 3 jaw with a tool post grinder on the CC lathe to get
the run out to zero.
With a 4 jaw in theory one can adjust the run out to zero.
I came up with a plan to hopefully make it easier to adjust 4 jaws.
It is just a start as it assumes the 4 jaw body does not run out
as well. That is probably not the case. The last few thousandths must
be taken out with the old methods. There are many shown on YouTube.
The trick is to center and zero the dial indicators on the 4 jaw
body, lock the
cross slide and then add and subtract the part radius difference to
the dial indicator
part readings.
Paul Lamar

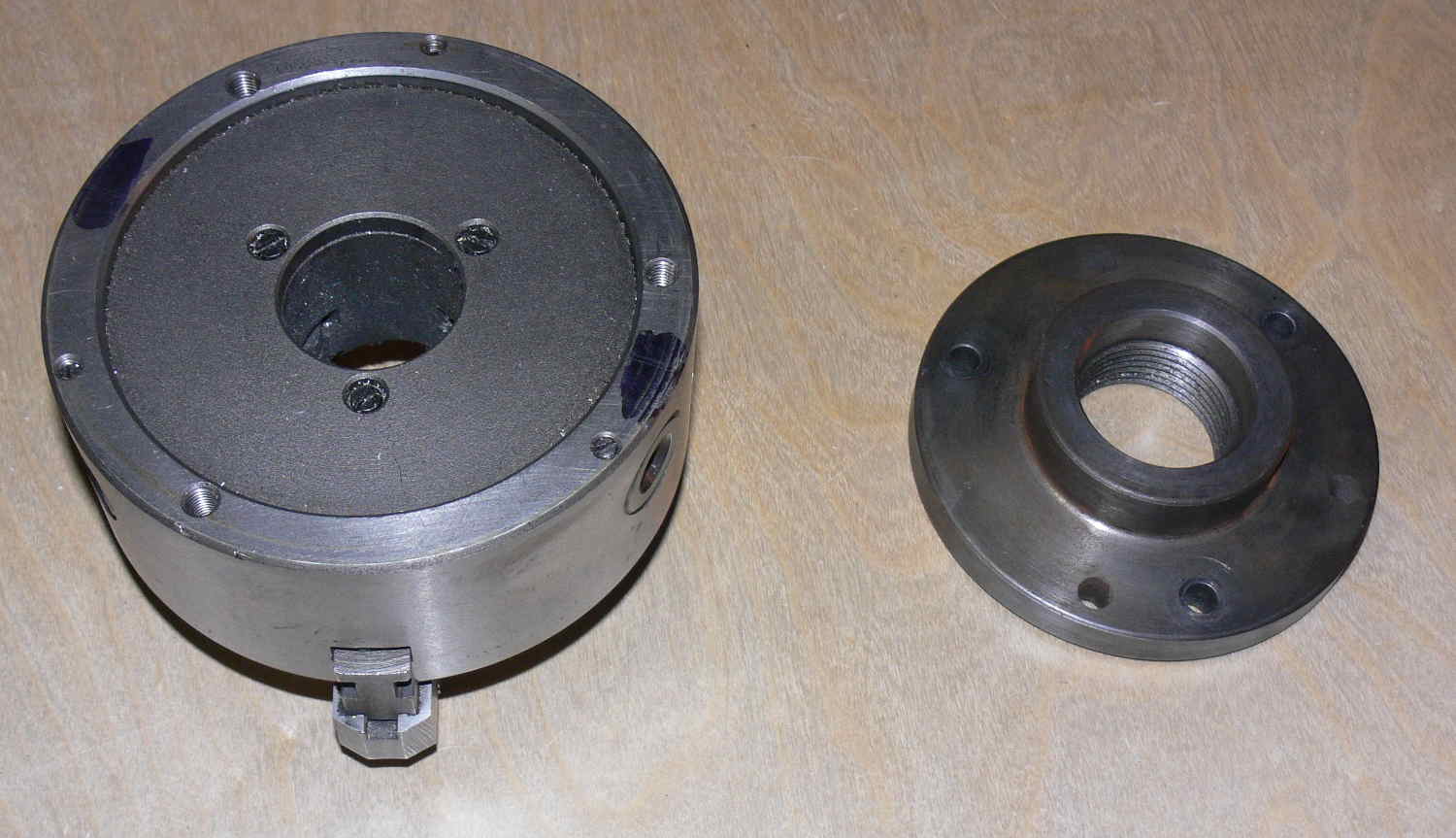

Here is what it looks like. When I assembled it the first time
without the set
screws the run out was only .003" run out. Pure luck as I had to
locate the
three 8 mm mounting holes. Here is how i did that. I made three 8 mm
center punches by grinding them in a drill motor on the belt sander.
Then screwed them into the back side of the 3 jaw. Located the 3
jaw with
a pilot tube adjusted with tape and tapped it with a hammer to
center punch
the front side of the adapter.
Paul Lamar.
