Begin forwarded message:

 *From: *Guy Marcotte <guy_marcotte@hotmail.fr
 <mailto:guy_marcotte@hotmail.fr *Subject: **RE: Mazda PSRU* *Date:
  *March 23, 2017 at 16:59:14 PDT


 Hi Byron,

 I have in my inventory the model 300 with a ratio of 2.4:1,the weight
 is 46 pounds and the cost US $ 4,600.

 Guy Marcotte



 Yi Ha…..where and how much? By

 On Mar 21, 2017, at 15:40, Guy Marcotte <guy_marcotte@hotmail.fr
 <mailto:guy_marcotte@hotmail.fr wrote:

 Hello Byron,

 PSRU for Mazda rotary are available.

 Guy Marcotte


Paul,
sound reasonable?
Thx,
Byron Head

It has been around a long time. It might be OK. I don't think anybody on the news letter
ever had one. At least I don't  think they uploaded a message about it.

In theory they have two problems. Neither gear is straddle mounted so
the gears can deflect in the disengage direction. Allison gave up on the
design in the early 1930's. The other problem is the line contact length
between the teeth. For a given gear width the Ford planetary set is six times
stronger because there are six planetary gears and the contact length
is six inches wide. Unbeatable with just two gears..

The last problem with this specific version is the 2.4 to one ratio
is not high enough for a rotary. The rotary needs 3 to one or higher.

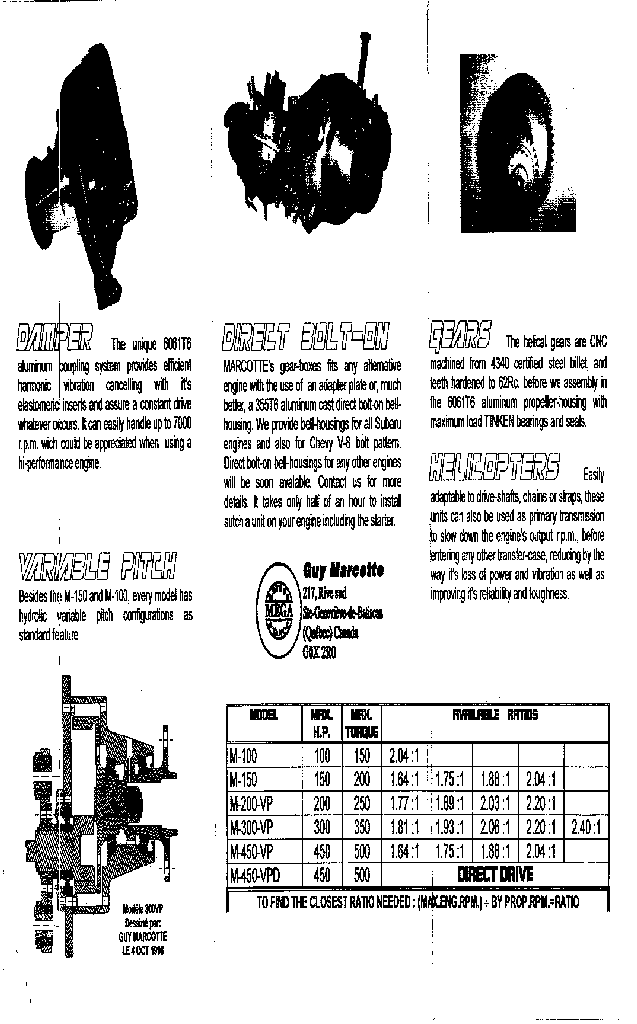

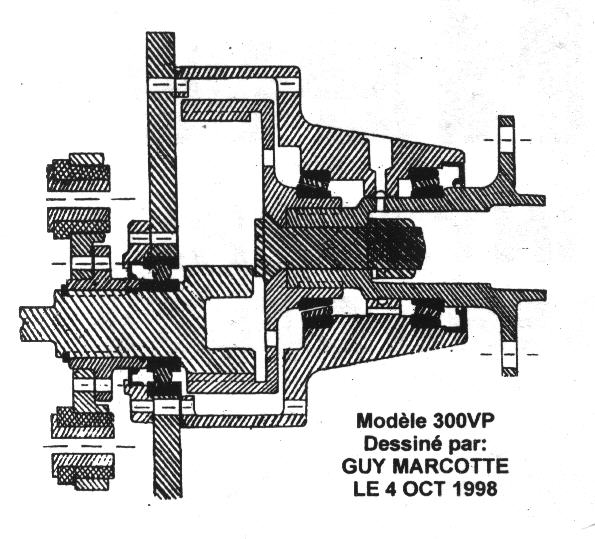

Here are some pictures I collected on the Marcotte box.
Paul Lamar
