Subject: 2nd gen trailing igniter
From: paul lamar
Date: 5/31/2017, 10:11 AM
To: A10-Me-Earthlink


Paul,



Do you know what the tach signal coming off of the trailing igniter yellow wire looks like ( voltage frequency range)?



I think you get 2 pulses per rev.



I would like to condition the signal for the arduino engine monitor.



Thanks for any help



Joe Berki



Limo EZ 13b P Port



Two pulses per rev of the Crank Angle Sensor. However the Crank Angle Sensor is geared
to the e-shaft and it runs at half E-shaft speed.

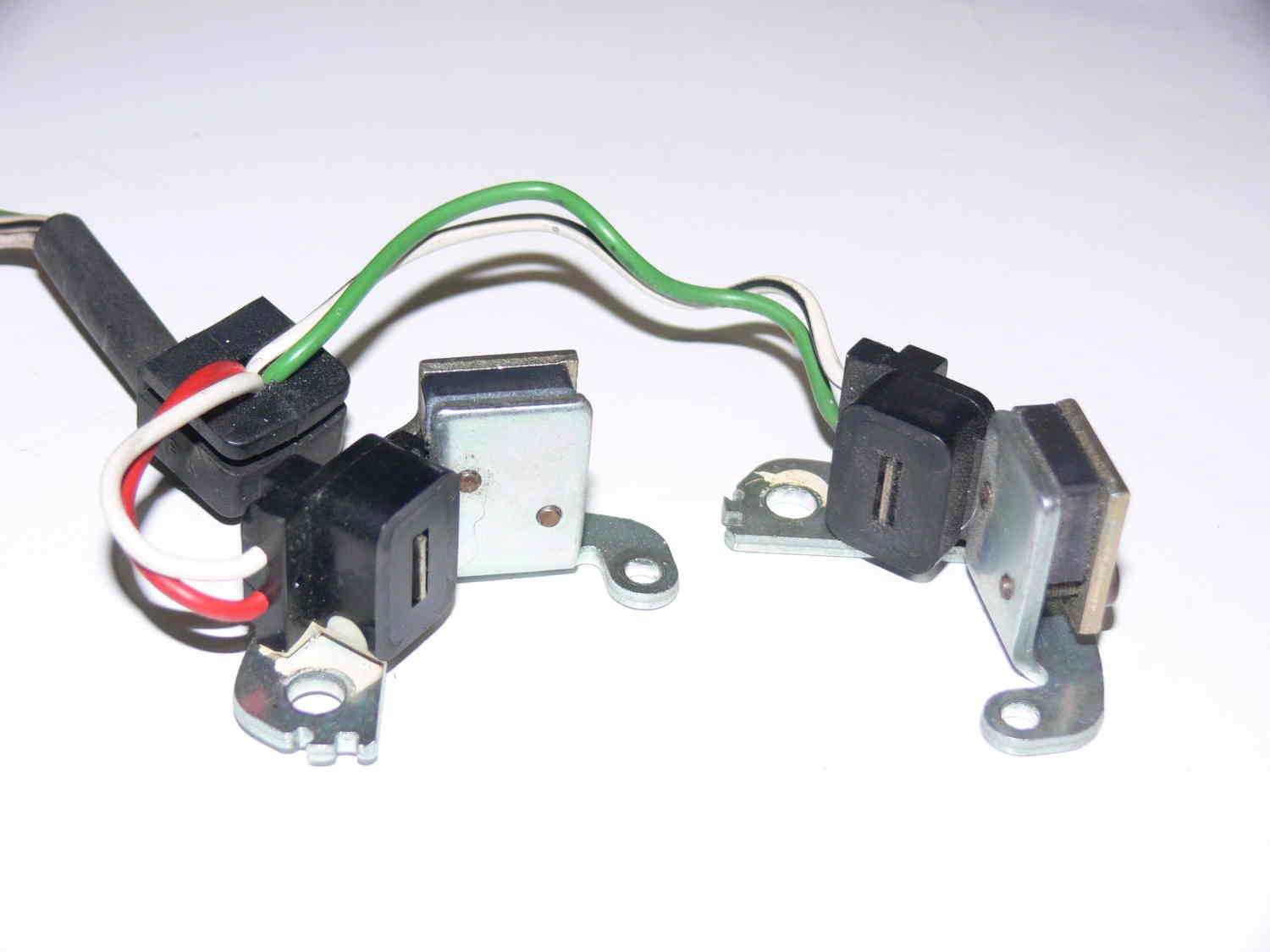

There is another sensor in there that puts out 12 pulses per E-shaft rotation.
Use that for a tach signal.

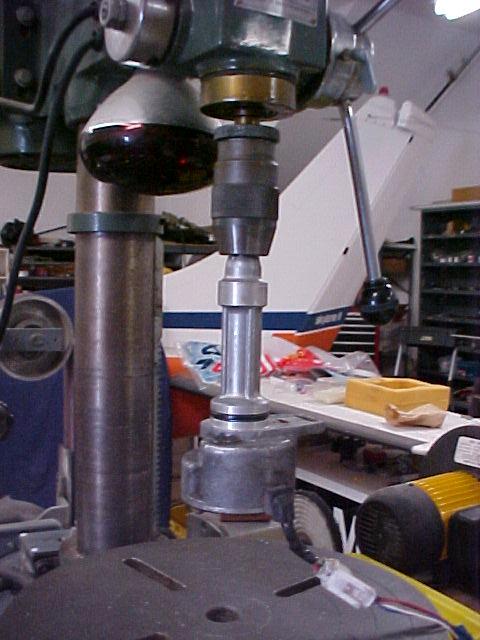

Press the roll pin out of the gear and chuck it in a drill press.
Use an O-scope to look at the wires.



BTW you changed your email address with out telling me :-)
You were no longer  on the list.


Paul Lamar
