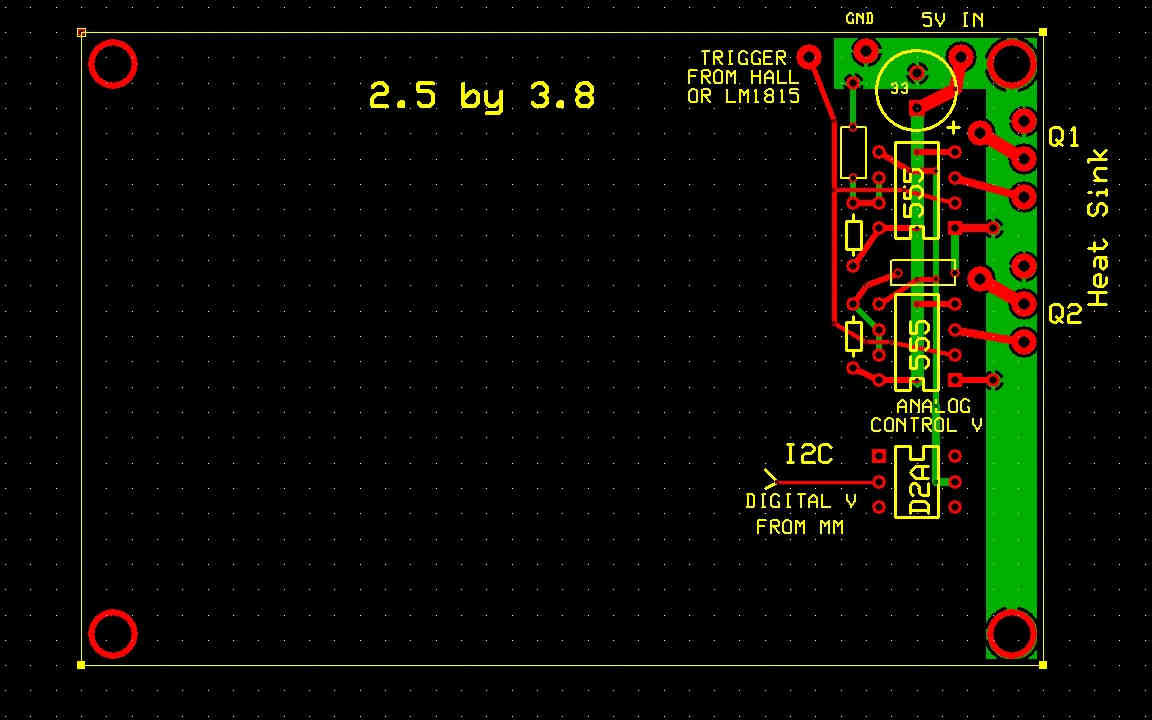

Here is the PC board. The circuit only uses a small space.
The FET's for controlling the injectors are on the board.

The MM sends the control digital voltage to the six pin
dip D to A and it stores it until it is changed again by the MM.
It has a one or two wire serial interface.

That totally frees up time in the MM. You can change the pulse
width any time you feel like it. Every Rev or every ten revs.
It just keeps running on its own.

Unloads the MM to the point it can do a lot of other stuff.

The PC board cost is 3 for $50.

This is a MAJOR BREAK THROUGH in EFI,

Paul Lamar.
