\Hello Paul, I am interested in the universal motor mounting system
 you have. Could you give me ordering instructions,parts list and
 cost? Thank you,

 Todd Olson

Yes I have all the parts.

The square tube ends. $10 ea
The round tube ends. $8 ea
The high angle adapters. $12 for a set of two.
The U shaped fire wall fittings. $10 ea
The main fitting. $30 each.
Two inch OD washers 1/2 inch hole .125" thick. $5 ea

I don't have the motor plate. One can make
that with a band saw from half inch 6061 plate.

The rubber cup holder for the motor plate
can be welded from steel tubing. A NC mill version would
cost a fortune. Or you can saw it out of 1/2 inch aluminum
plate like the original shown here.

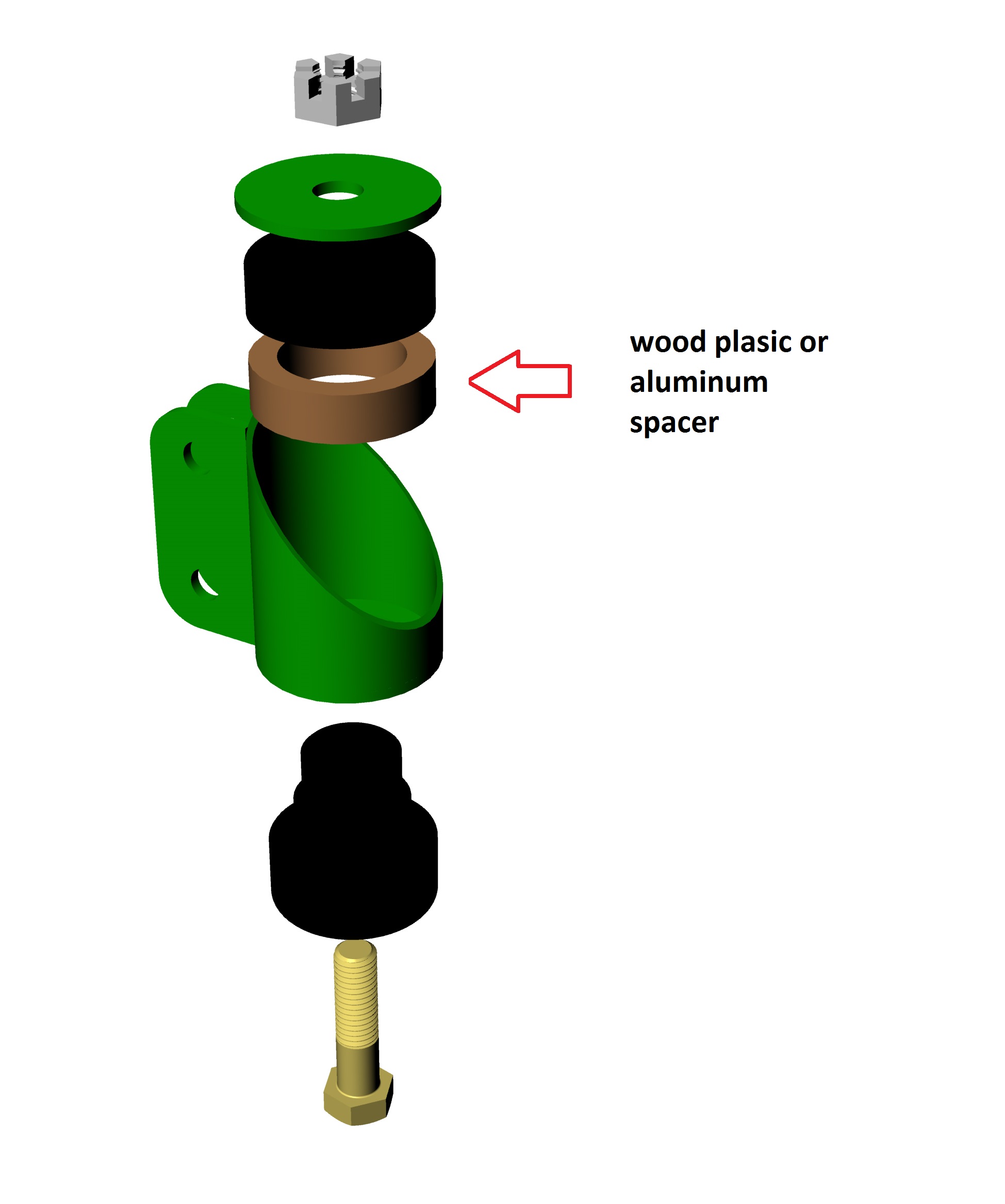

I just had an excellent idea for drastically reducing the cost
and time to make them. A simple change in the steel tube.

It was as simple as making a spacer out of wood, plastic
or aluminum. The lateral loads are low so almost any material
would work.

Here is the 3D.

Dimensions later.

Paul Lamar

------------------------------------------------------------------
